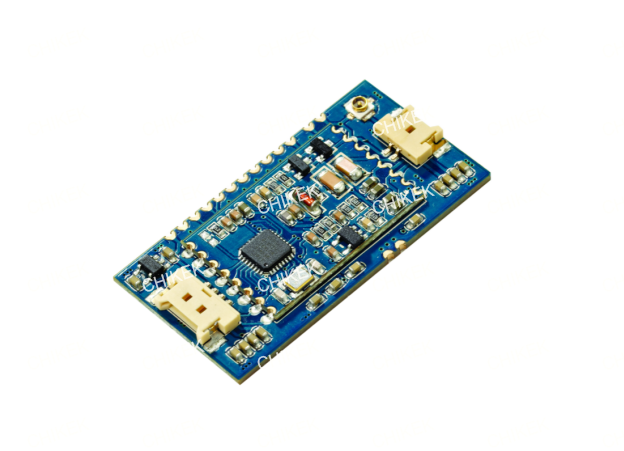

TTL 125KHz T5577 Access Control Card Reader Module, Smart Locker RFID Module
| Supply Ability: | 10,000 Set(s) per Month |
|---|---|
| Shipping: | by express |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
Quick Details
- Brand Name: CHIKEK
- Card type: ATA5577/5567
- Communication: UART TTL
- Dimension: 22mmx42mmx3mm (LxWxH)
- Frequency: 125KHz/134.2KHz
- Model Number: CHK121MT
- Antenna: External, Molex connector or stamp hole
- Supported Standard: ISO11784/11785
Specifications
Key Features:
- Frequency available with 125KHz
- 3.3V ~ 5V DC Power supply, UART-TTL interface
- R/W or Read-only UID of ATA 5577 and its compatible cards;
- Available to set to read different Page or Block address with password;
- Optional output as WG26, WG34 or UART TTL
- External antenna, reading range up to 5~7cm
- External LED&BUZ available( external driver circuit needed)
Technical Parameters:
Electrical Specification |
|
Power supply |
DC 3.3V ~ 5V |
Power consumption |
< 45mA |
Operation frequency |
125KHz &134.2KHz |
Baudrate |
9600~115200 bit/s ( default 9600bps) |
Interface |
UART TTL |
Antenna |
External, Molex connector, or stamp hole |
Reading range |
50- 100mm (depends on tag and antenna size) |
Mechanical Specifications |
|
Dimension |
22mmx42mmx3mm (LxWxH) |
Weight |
6g |
Material |
FR-4, Blue |
Model |
CHK121MT |
Environmental Conditions |
|
Operation temperature |
-20C+80C |
Storage temperature |
-40C+85C |
Humidity |
Relative humidity 5%95% |
Baudrate |
9600~115200 bit/s ( default 9600bps) |
Supported Standard/ Tags |
|
ISO/IEC 11784/11785 |
ATA 5577/5567 and compatible card |
SDK information |
|
Demo software |
WINDOWS |
Files |
Comprotocol document API document User Manual Demo.Exe |
Note: Other functions and details to be continued and upgraded
