Dongguan Zeguan Machinery Co., Ltd.

China Manufacturer with main products: Aluminum Cutting Machine, Aluminum Sawing Machine, Steel Pipe Cutting Machine, Aluminum Angle Cutting Machine, Aluminum Profile 45 Degree...

Home >Products Catalog > Copper Alloy High-Speed Bla, High-Speed Aluminum Blanking Machine, Aluminum Tube Cutting Machine

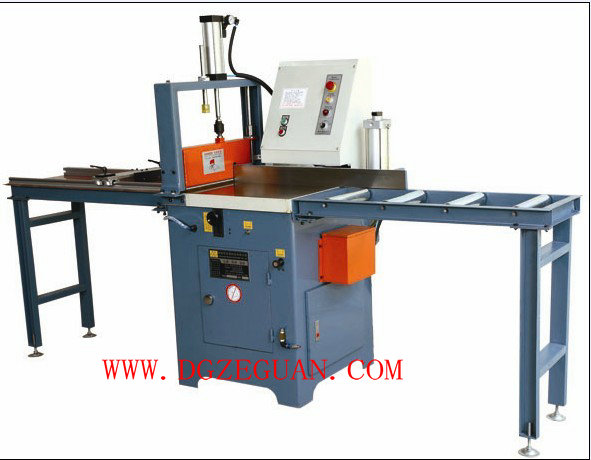

Copper Alloy High-Speed Bla, High-Speed Aluminum Blanking Machine, Aluminum Tube Cutting Machine

FOB Price:	3390.00 - 3600.00 USD/Piece
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Place of Origin:	Guangdong in China

Quick Details

After-sales Service Provided: No overseas service provided
Condition: New
Brand Name: ZEGUAN
Weight: 385
color: blue
Model Number: ZG-455SAL

Specifications

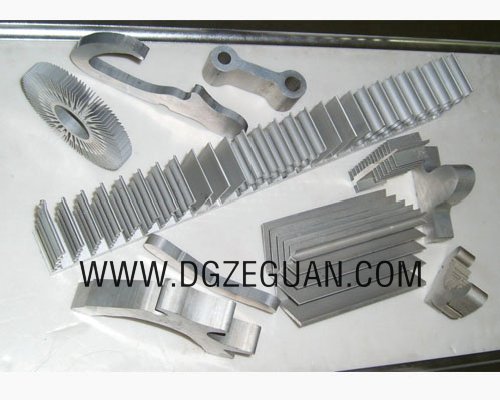

copper alloy highspeed bla highspeed aluminum blanking machine aluminum tube cutting machine Suitable for cutting all kinds of nonferrous metal, aluminum, aluminum alloy, copper, Copper alloy, plastic material, plastic, PVC, wood, organic glass (acrylic) and Carbon fiber materials, especially suitable for copper and aluminum electronic Components, radiator, audio panels, graphics CARDS, network CARDS, CPU, hard Disk shell, MP3, U disk aluminum shell, aluminum shell type aluminum extrusion and precision cutting of different profile.

1, high precision sawing, No burr, no need for secondary processing, high efficiency.

2, only foot switch, Automatic mechanical pressure and sawing. Safe and easy. Pressure parts using High quality rubber strip, not easy to damage the surface of the workpiece.

3, hidden saw blade sawing from the bottom up, high safety, single or multiple materials sawing at the Same time, small vibration, low noise.

4, the pressure system is Driven by two-way linear bearing and controlled by an independent air pressure Cylinder, with high pressure stability (the pressure can be adjusted Independently according to the material type to prevent material damage caused by heavy pressure)

5, press height and speed and saw cutting height and speed can be set according to material size and Thickness.

6, the spindle runs at High speed, and equipped with automatic oil injection device, to provide the Saw blade with proper lubrication, make the workpiece surface smoother without Burr, extend the service life of the saw blade

7, additional Angle Template can be cut Angle.

Model	ZG-455SAL specifications
Sawing angle	90&45
Maximum sawing width	300mm
Maximum sawing height	140mm
Saw blade	3200R.P.M
Blade size	Tungsten Steel blade with blade tip 355-45525.4mm
Size of Table	650670860mm
Machine motor	5HP/2P three-phase
Pressure required	5-6kg/cm2
Machine dimension ( LxWxH )	10308601360mm
Packing dimension ( LxWxH )	10508801380mm
NW/GW	335/385kg
