Home >Products Catalog > Copper Bar Sawing Machine, Copper Bar Cutting Machine, Aluminum Alloy Bridge Cutting Machine

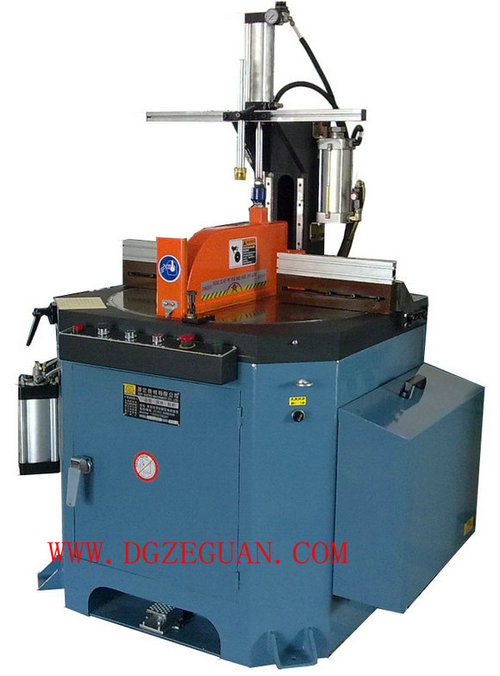

Copper Bar Sawing Machine, Copper Bar Cutting Machine, Aluminum Alloy Bridge Cutting Machine

FOB Price:	8650.00 - 9000.00 USD/Piece
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Place of Origin:	Guangdong in China

Quick Details

After-sales Service Provided: No overseas service provided
Condition: New
Brand Name: ZEGUAN
Weight: 640
color: blue
Model Number: ZG-510SA

Specifications

1,Accurate Cutting angle, high precision, smooth cutting section, burr-free and high Efficiency.
2, Stamp Foot switch to auto press and saw materials, which is safe and easy.
3, Down-to-up Hidden sawing mode: high security, single or multi cutting available.
4, Pressing System adopts precise linear slide to drive and is controlled by independent Compressed air cylinder. High pressing stability (be able to adjust pressing Pressure according to material type to prevent material from damaging caused by Hard pressing).
5, Be able to set pressing height and speed and cutting height and speed according to Material size and thickness.
6, Precise Compel injection system promotes lubrication and cooling effect, reduce failure Rate and prolong service life of saw blade.
7, 0~45 angle Cutting available. Angle adjustment is easy and accurate.

Model	ZG-510SA
Sawing angle	+45 ~ 0~ -45
Blade size	20"x1" Inner hole
Saw blade	3000R.P.M.
Machine motor	5 HP
Pressure required	4-6kg/cm
Size of Table	920x650mm
Table height	900mm
NW/GW	570 / 640kgs
Machine dimension ( LxWxH )	1200x1090x1780mm
Packing dimension ( LxWxH )	1320x1210x1980mm
