High Crushing Ratio Impact Crusher for Sale In Indonesia

FOB Price:	3800.00 - 5500.00 USD/Set
Supply Ability:	150 Set(s) per Month
Shipping:	Qingdao
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	Southeast Asia, Africa
Place of Origin:	Henan in China
Packaging Details:	standard container, nude packing or in bulk cargo

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Brand Name: zoomlegend
Motor Type: AC Motor
Condition: New
Certification: ISO9001
Weight: 12T
Dimension(L*W*H): 2330*1660*2300mm
Model Number: PF-1007
Capacity(t/h): 30-70
Power(W): 45000
Application: used for crushing process in mining, railway, energy, cement, chemical
Type: Impact Crusher
color: white,yellow
Feeding Inlet Size: 400*730mm
(mm) Maximum Feeding Inlet Side Length: 300mm

Specifications

Product Introduction

PF Impact crusher has several strengths, such as: simple structure, large size reduction ratio, less energy consumption, high productivity, and cubic materials after crushing. It is used for secondary and fine crushing materials of medium hardness with compressive strength of no more than 100Mpa, like limestone, clinker, slag, coke and coal, in the industries of ore dressing, cement, construction, refractory materials, coals, glass, etc.

Working Principle

this series of products adopts the principle that impact can crush materials. When it works, the stones fall directly onto speedy rotary table from the upper part of the machine. the rotor rotates at a high speed driven by the motor. the materials from the feeding inlet impact with the blow bar on the rotor. under the action of speedy centrifugal force, the materials are crushed by speedy impact of the blow bar as well as the impact and highly dense crushing with the stones around the rotary table distributed in an umbrella type; the crushed materials rebound to the toggle plate to be crushed. after the beating among stones, they will form vortex motion between the rotary table and the case which produces repeated impact, friction and crushing so that they will be discharged from the discharging outlet and the closed cycle is formed. Adjusting the gap between the impact frame and the rotor rack can alter the discharging granularity and shape of the materials.

Structure

PF Impact crusher consists of back box, impact toggle plate, impact frame, toggle plate, feeding inlet, base, blow bar, rotor rack, etc.

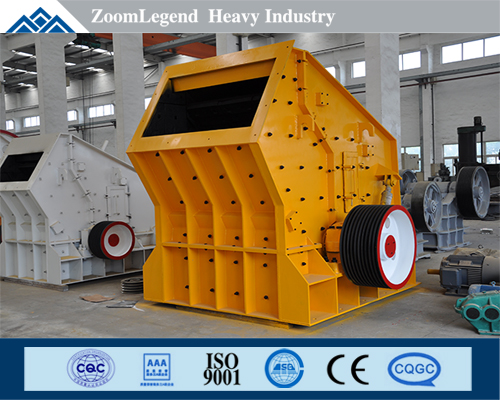

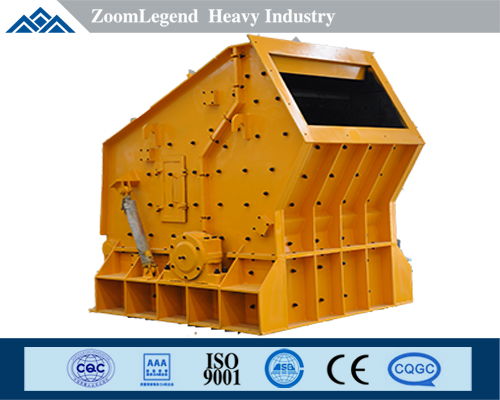

high crushing ratio impact crusher for sale in Indonesia

Product Characteristics

1. Large feeding inlet size, high crushing chamber, high hardness of materials, large lumpiness and less stone dust.

2. the gap between the impact plate and the blow bar can adjust and effectively control the discharging granularity and the shape.

3. Compact structure, strong rigidity, large moment of inertia of the rotor.

4. High chromium blow bar, shock resistance, abrasion resistance, strong impact force.

5. Keyless connection, convenient overhaul, economical and reliable.

6. Complete function of crushing, high productivity, less abrasion of components, high comprehensive benefits.

Technical Parameter

Model	Specification (mm)	Feeding Inlet Size (mm)	Maximum Feeding Inlet Side Length (mm)	Productivity Capacity (t/h)	Power (kw)	Total Weight (t)	Outer Dimension (LWH) (mm)
PF-1007	Φ1000700	400730	300	30-70	45	12	233016602300
PF-1010	Φ10001050	4001080	350	50-90	55	15	237017002390
PF-1210	Φ12501050	4001080	350	70-130	110	17.7	268021602800
PF-1214	Φ12501400	4001430	350	100-180	132	22.4	265024602800
PF-1315	Φ13201500	8601520	500	130-250	220	27	318027202620
PF-1520	Φ15002000	8302040	700	300-550	400	50.6	395935643330
