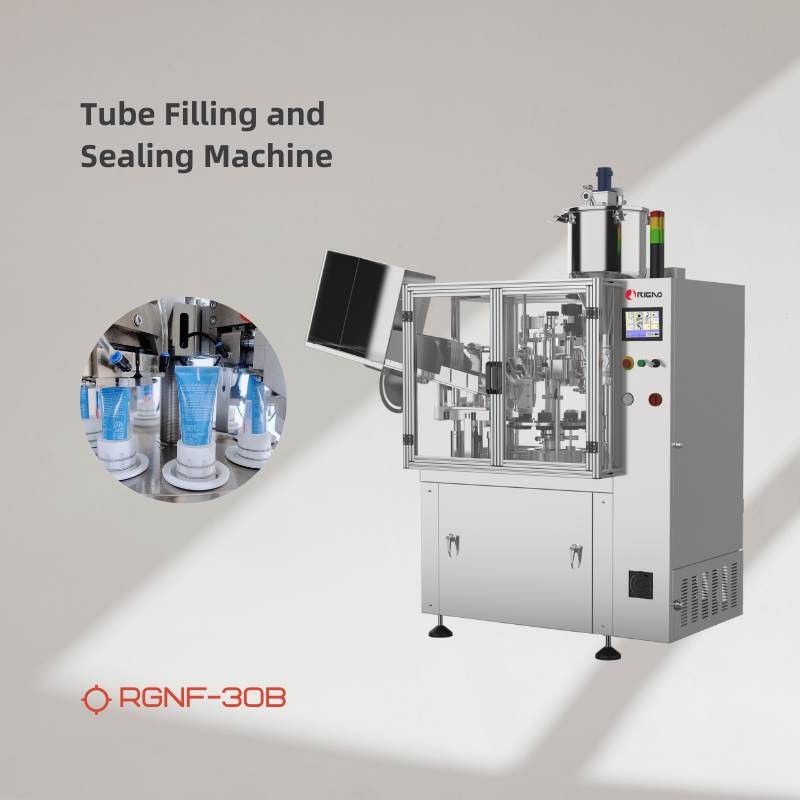

RGNF-30B Tube Filling & Sealing Machine
| FOB Price: | 10000.00 - 21000.00 USD/Set |
|---|---|
| Payment Terms: | L/C |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
Quick Details
- Type: Sealing Machine
- Brand Name: RIGAO
- Packaging Material: Plastic
- Packaging Type: tube
- Application: Chemical,Food,Machinery & Hardware,Medical
- Type: Machine
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: ISO9001-2008 certificate
- Weight: 850kg
- Dimension(L*W*H): 1900* 850* 1900
- Model Number: RGNF-30B
- Power: 1.1kw
- Driven Type: Mechanical
- Automatic Grade: Automatic
- Condition: New
Specifications

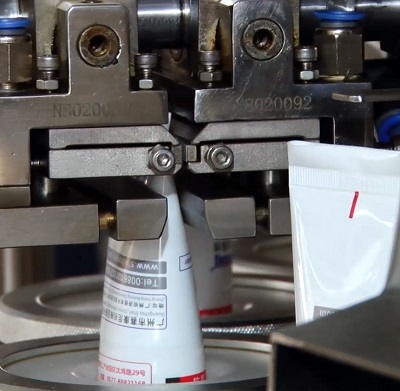

Fulfill tube feeding, marking identification, filling, hot air sealing, trimming, code printing and finished product ejection through an automatic control system.
Adopts touch screen and PLC control system. Easy to operate. Convenient and stable.

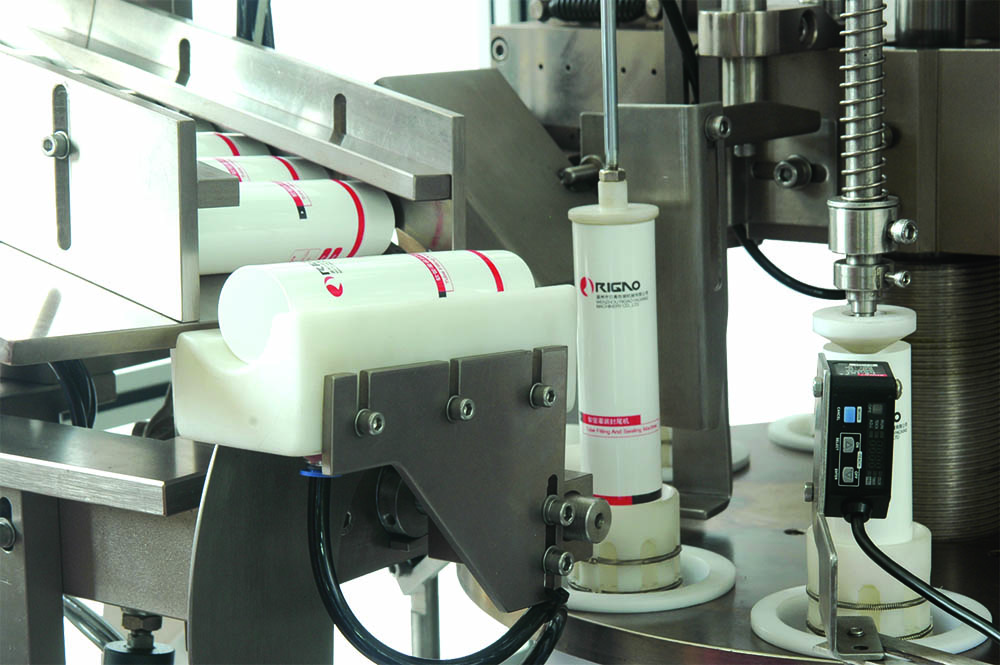

Tube feeding is conducted pneumatically via a vacuum device, accurate and reliable.
Sense the color center by rotary and photoelectric inductance to position accurately.
the material contacting part is made of 316L stainless steel, clean, sanitary and conforming to GMP standard requirement.
When the door opens, the machine stops. If there is no tube, the machine will not fill. Also features overload protection and many other safety devices.
2.Techincal parameters: Filling volume 5-250ml Filling accuracy ≤±1% Production Capacity 1800-2400tubes/h(Adjustable) Tube diameter 10- 50mm Tube length 210mm (Max. Length) Hopper volume 40 L Compressed Air 0.5-0.7MPa Power Supply AC 380/220V(Optional) Motor Power 1.1 kW Air feeding 0.37 kW Convulsions 0.37 kW Hot air 3.0 kW Dimension 1900(L)850(W)1900(H)mm Weight (Approx) 850kg
