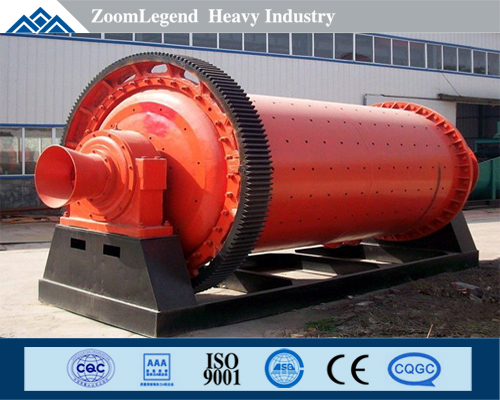

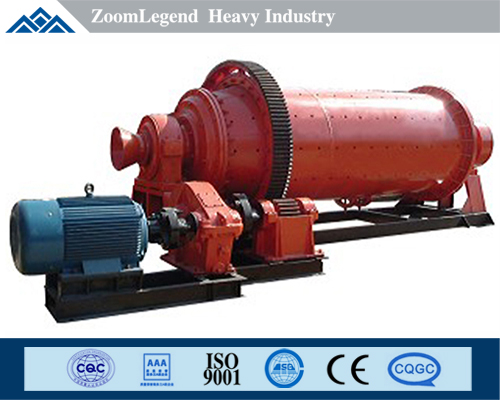

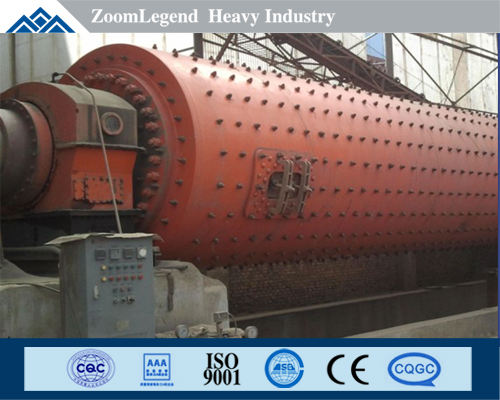

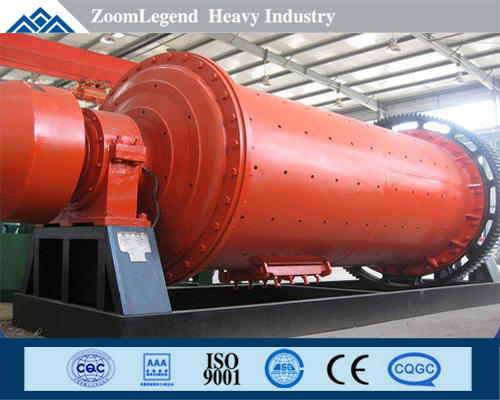

Hot Selling Fly Ash Ball Mill Made In China

Specifications

Introduction

Fly ash ball mill, also known as fly ash mill, is in recent years has been a hot product demand of many industries, with the development of society and the improvement of the comprehensive utilization of waste, more and more secondary resources or waste has been fully used.

Fly ash ball mill is widely used in fly ash, cement, silicate products, new building materials, refractory materials, fertilizer, black and non-ferrous metal dressing and glass ceramics and other production industries, with strong practicability, large capacity, simple structure, long service life and other advantages.

Working principle

According to the granularity of fly ash to choose material from the mill feed (hollow shaft into the cylinder body, when the ball mill cylinder rotation, grinding medium because of inertia and centrifugal force effect, the effect of friction, making it near the post on the cylinder liner was taken away by cylinder, when was brought to a certain height, be cast down by its own gravity, the whereabouts of the grinding medium like projectile of cylinder body of the material to break. the materials are uniformly entered into the mill bin by the feeding device through the feeding hollow shaft helix, which contains stepped lining board or corrugated lining board, and steel balls of different specifications inside. the centrifugal force generated by the rotation of the cylinder will bring the steel balls to a certain height and then drop down, which will have a pounding and grinding effect on the materials. after coarse grinding, the materials enter the warehouse through the single layer partition board, which is inlaid with flat lining board and steel balls to further grind the materials. The powder is discharged through discharge grates to complete the grinding operation.

Characteristic

1. Economic efficiency is good

Fly ash ball mill can be the raw ash or the coarse ash after separation of the main mixture for ultra-fine grinding, so that it has a certain degree of hard water activity, the production of high-performance concrete can be mixed with ultra-fine ash, fly ash to achieve the purpose of full use, to create greater economic benefits.

2. Fly ash has high utilization efficiency

Can be the grinding of coal ash separation, separation of the coarse ash will be returned to the fly ash ball mill for ultra-fine grinding, the production of high-performance concrete admixture can be prepared, greatly improve the economic efficiency of the comprehensive utilization of fly ash, can achieve all comprehensive utilization of fly ash.

3. the process is simple

An open circuit system is adopted in a fly ash ball mill. after grinding the coarse ash into the mill, the fly ash discharged can directly reach the fineness requirement of grade ash (adjustable) without further screening or sorting.

4. High grinding fineness

the special ball mill for fly ash manufactured by our company adopts the particle grinding body completely, directly enters the grinding condition to grind fine, so it can grind the particles of 45 ~ 150 m to below 45 m smoothly.

Technical Parameter

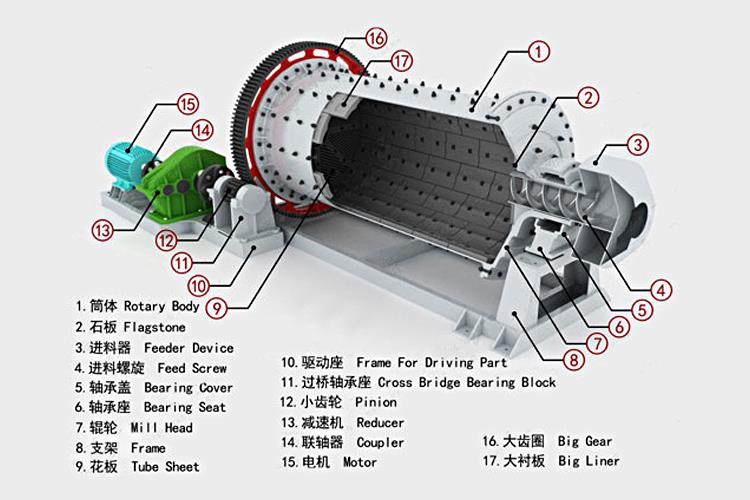

Structure

Fly ash ball mill consists of feeding part, discharging part, rotary part, transmission part (reducer, small transmission gear, motor, electric control) and other main parts. The main machine of the fly ash ball mill includes the barrel body, the barrel body is inlaid with lining board made of useful wear-resisting material, bearing the barrel body and maintaining its rotating bearing, as well as the driving part, such as the motor, transmission gear, belt pulley, triangle belt and so on.
