Home >Products Catalog > CDINDUSTRY Supply Kinds of Centrifgual Pump, Slurry Pump

CDINDUSTRY Supply Kinds of Centrifgual Pump, Slurry Pump

FOB Price:	1000.00 - 100000.00 USD/Unit
Supply Ability:	100 Unit(s) per Month
Shipping:	sea
Payment Terms:	L/C, D/A, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Chongqing in China

Quick Details

Pressure: High Pressure
Standard or Nonstandard: Nonstandard
Power: Electric
Structure: Single-stage Pump
Brand Name: CDI
Theory: Centrifugal Pump

Specifications

CDINDUSTRY supply kinds of centrifgual pump slurry pump
the following example is for you reference.

1.Brief Introduction:

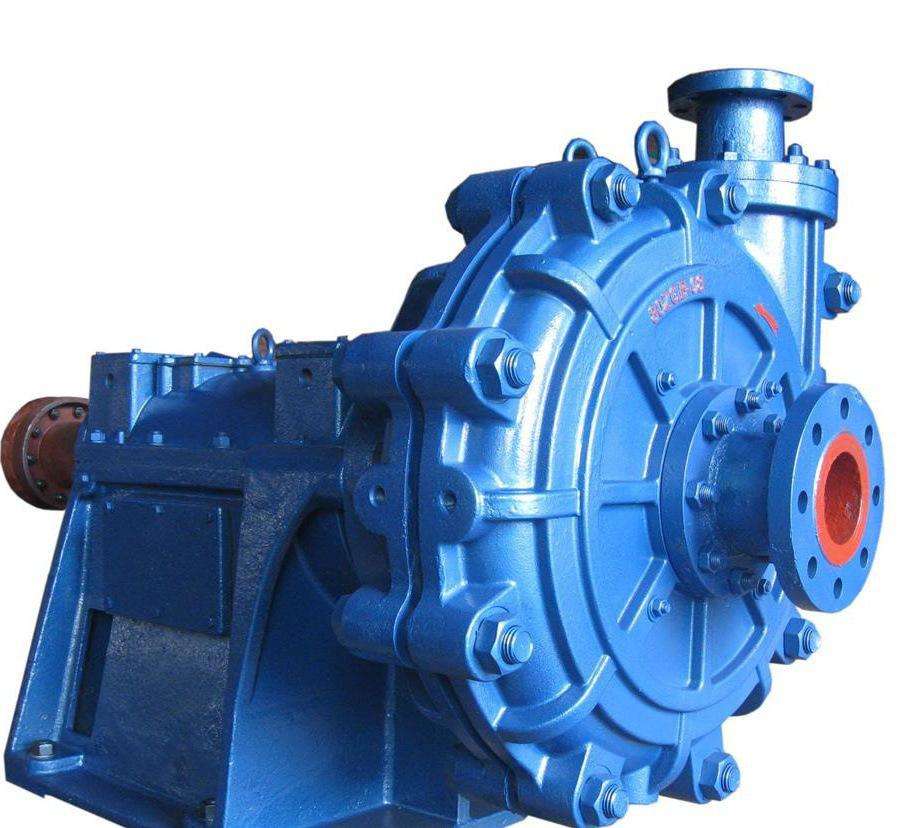

Alloy slurry pump has cantilever type and horizontal type, and the main working parts are impeller and casing. Impeller device in casing is located on shaft, and connects with the prime motor.

in addition, double choices of high-chromium alloy and wear-resistant liners; double choice of packing sealing and centrifugal sealing.

2.Techincal parameters:

[Technical Parameters]

Model	Flow	Head	Rotation Speed	Maximum Power	Maximum Efficiency	Impeller Diameter
Model	m3/h	m	rpm	Kw	%	cm
50XPC	12-111	7.7-94	700-1480	55	44.7	3346
80XPC	43-204	8 -70.4	700-1480	75	67.6	33363942
100XPC	61-331	9.7-84.8	700-1480	132	71	33363942
150XPC	111-582	8.7-71.1	490-980	185	75.8	48555863
200XPC	199-948	13-97.5	490-980	355	82.5	58636873
250XPC	272- 1374	14.4-92.4	490-980	500	76.5	63687390
300XPC	477-2333	13.8-79.9	490-980	630	80.4	65708590

3.Performance features:

Alloy slurry pump achieves to increase pressure for conveying medium by centrifugal force.

this is actually a process of energy transfer and conversion.

the mechanical energy of high-speed rotation motor is transferred to pressure energy and kinetic energy of pumping the liquid by the pump vanes.
