Honbo Audio Co., Ltd.
China Manufacturer with main products: Microphone, Wireless Microphone, Audio, Amplifier |

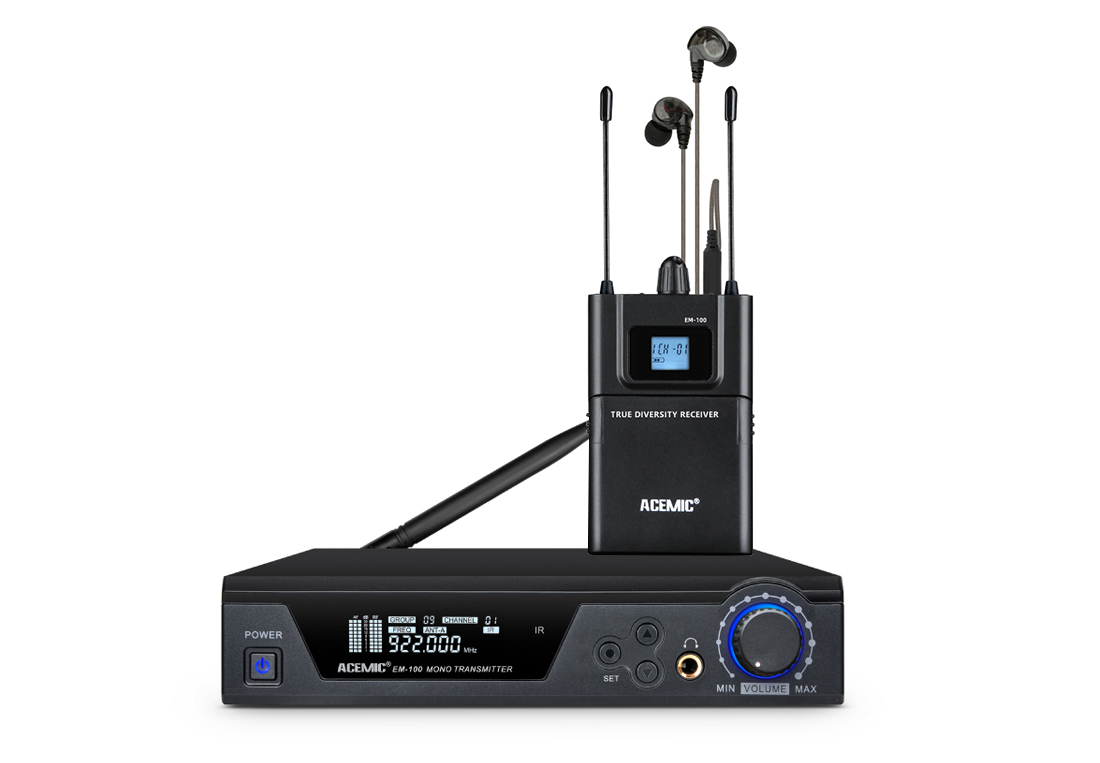

EM-100 Wireless in-Ear Monitoring System
| FOB Price: | 100.00 - 1000.00 USD/Piece |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
Quick Details
- Use: stage
- Communication: Wireless
- Style: stage
- Brand Name: ACEMIC
- Material: plastic and metal
Specifications
FEATURES
UHF 600-928MHz frequency rangeMono Outputs, four levels RF output selectable
True diversity for maximum range and dropout protection
PLL Synthesized circuit
Pre-set 100(10*10) selectable frequencies
IR sync downloading the frequency from receiver
LCD display shows the RF level, AF level, channel and frequency.
EIA standard 1/2U rack-mountable metal chassis
up to 200m line-of-sight operating range
Designed for professional stage performance applications
SPECIFICATION
Receiver(Belt-pack)
Frequency Range: 600-928MHz
Transmission Method: FM, Mono
Frequency Response: 60Hz-17KHz
Total Harmonic Distortion: <0.7% at 1KHz
Signal/Noise Ratio: ≥105dB
Earphone output: 3.5mmφ/ 16ohms 105mW
Receiving Sensitivity: 10dBuV(80dB S/N)
Battery Voltage: 3V (2x1.5V AA Battery)
Power Consumption: 8 hours, battery-dependent
Transmitter
Frequency Range: 600-928MHz
Transmission Method: FM, Mono
Transmitter Power: 5/10/30/100mW
Frequency Response: 50Hz-17KHz
Total Harmonic Distortion: <0.5% at 1KHz
Deviation: 45KHz
Input impedance: 32ohms
Power Supply: DC12V-18V / 500mA
