Hubei Sunfleet Intelligent Equipment Co., Ltd.
China Manufacturer with main products: Dump Trucks, Concrete Mixer Trucks, Wrecker Trucks, Oil/Water Tank Trucks, Sanitation Trucks, Truck Axles, Truck Engines, Truck Parts |
Home
>Products Catalog > Dump trucks / Concrete mixer trucks > Dongfeng KR Series 6 Wheel Tipper, 4x2 Dump Truck, Eu3, Eu4, Eu5 Emission Option, 4800mm Cargobox, Hydraulic Front Lift

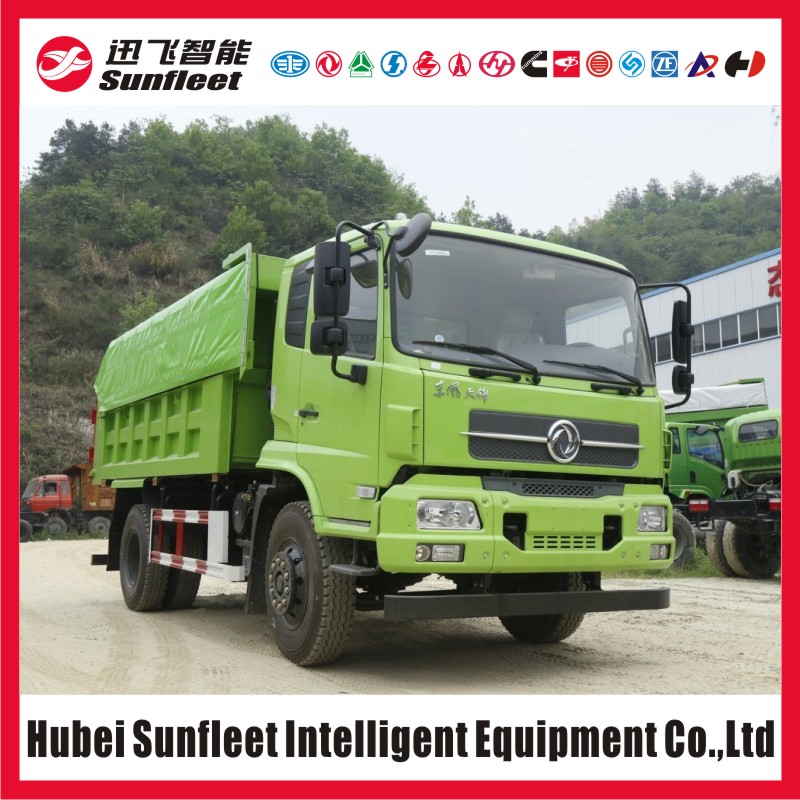

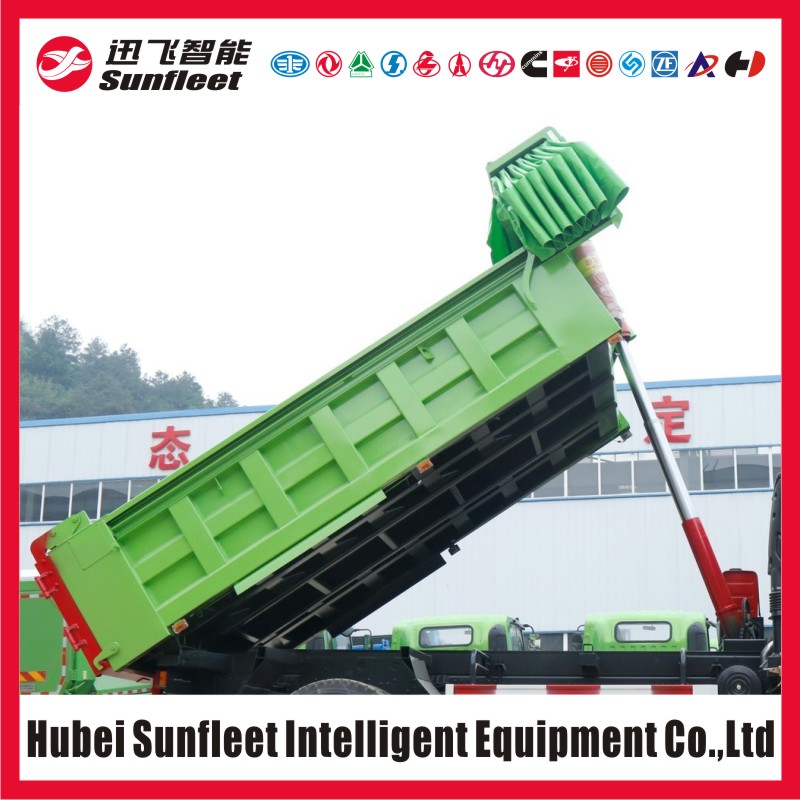

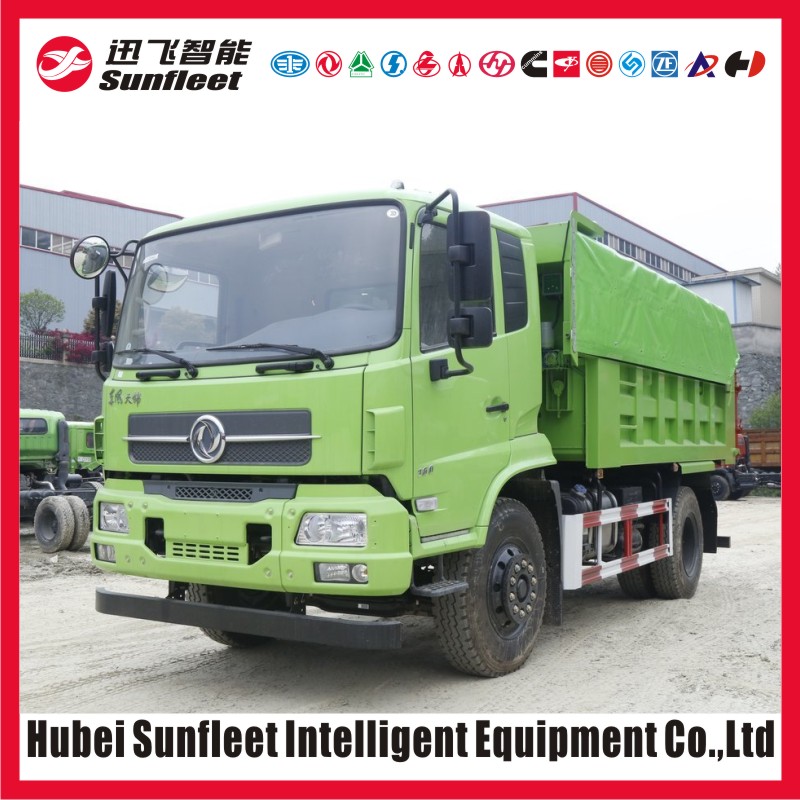

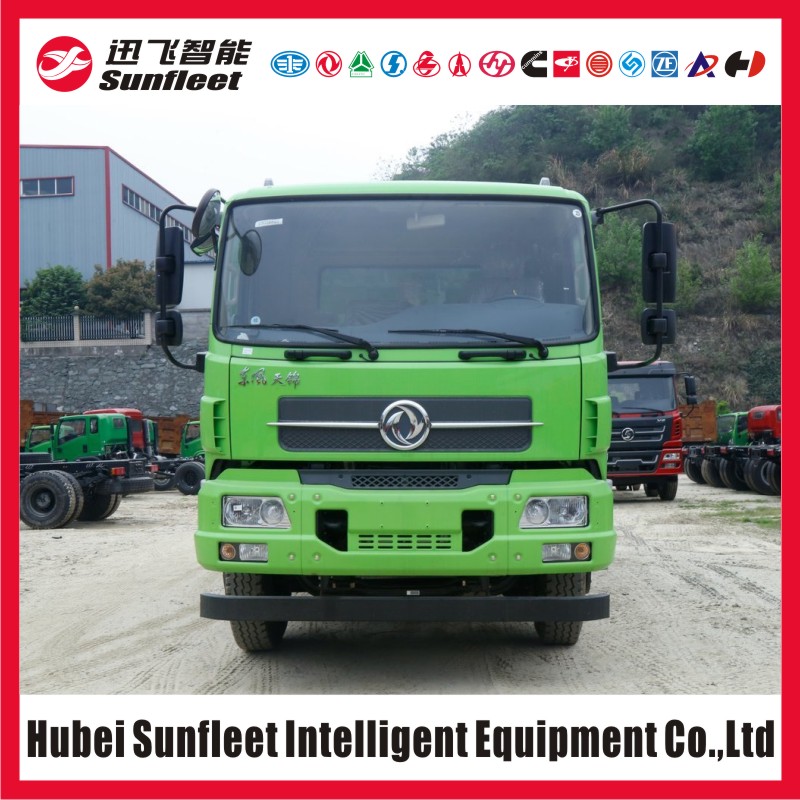

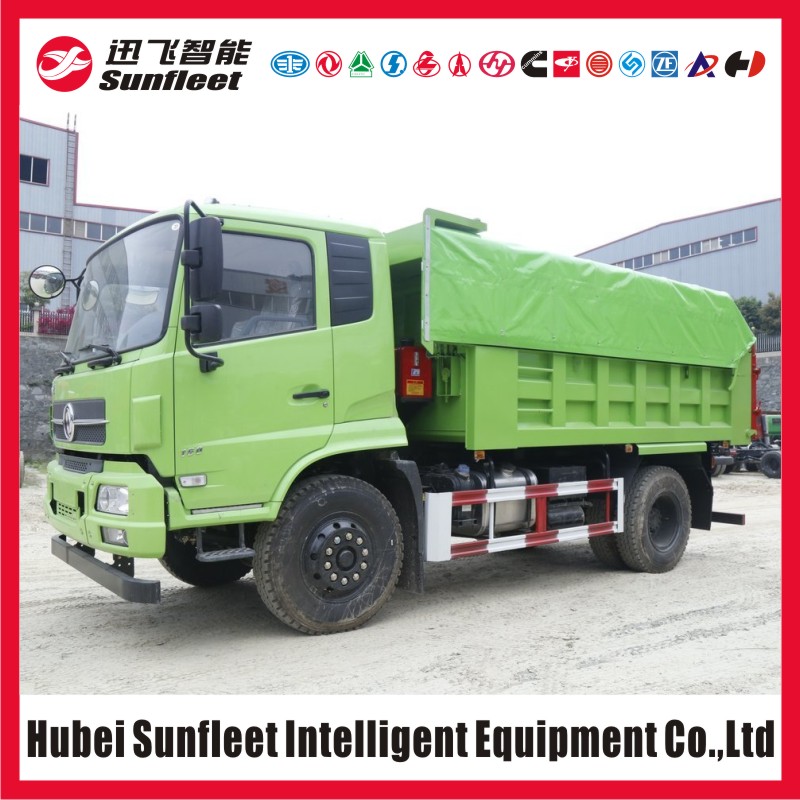

Dongfeng KR Series 6 Wheel Tipper, 4x2 Dump Truck, Eu3, Eu4, Eu5 Emission Option, 4800mm Cargobox, Hydraulic Front Lift
| FOB Price: | 35000.00 - 50000.00 USD/Unit |
|---|---|
| Supply Ability: | 800 Unit(s) per Year |
| Shipping: | shipping |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | no packing |
Quick Details
- Brand Name: dongfeng
- Fuel Type: Diesel
- Emission Standard: Euro 4
- Condition: New
- Horsepower: 150 - 250hp
- Dimensions (L x W x H) (mm): 7200x2500x3150
- Model Number: HXF3168A
- Gross Vehicle Weight: 18000
- Transmission Type: Manual
- Capacity (Load): 11 - 20t
- Drive Wheel: 4x2
- dump type: front lift
- cargobox structure: matts welding
- Eu5 engine: cummins ISD245-51
- Eu4 engine: cummins ISD245-40
- Eu3 engine: Yuchai YC6A240-33
Specifications
| Basic Specification Parameter | |
| Model | EQ3168D |
| 1,Basic Parameter | |
| Overall Length/Width/Height (mm): | 7200x2500x3150 |
| Curb Weight (kg): | 9850 |
| Chassis Brand and Model: | DFL3168 |
| Wheelbase(mm): | 3800 |
| Front / Rear overhang (mm): | 1500 / 1600 |
| Approach / Departure Angle: | 20-/25- |
| Front / Rear wheel distance (mm): | 1940 /1860 |
| 2, Chassis Specification | |
| Engine Model: | Cummins ISD245-51 |
| Engine Type | Line cylinder, Water cooling, Turbo |
| Max HP and Power (km/rpm) | 245HP, 180KW |
| Engine Displacement: | 6700ml |
| Fuel Type: | Diesel |
| Displacement Level: | Euro 5 |
| Gearbox Model: | Fast 9JS135T |
| Gear Specification: | 9 advance gear, 1 reverse gear |
| Carframe: | 280/80/(8+6) |
| Section Height: | 280mm |
| Section Width: | 80mm |
| Section Thickness: | 8+6mm |
| Front Axle Specification: | Forge Steel axle, H shape beam section structure |
| Front axle load(kg): | 5500 |
| Rear Axle Specification: | Hub reduction, tandem axle, cast steel axle case, axle with differential lock |
| Rear axle load(kg): | 13000 |
| Rear axle speedratio: | 5.83 |
| Suspension Spring: | Multi leaves steel plate spring |
| Spring specification: | Front 9 leaves, Rear 13 leaves |
| Brake system: | Auxiliary brake: Engine exhaust brake |
| Service brake: Duo loop air brake, steel tube with dryer | |
| Parking brake: Cut-off air brake | |
| Steering system: | Hydraulic power steering |
| Fuel Tank Cubage: | 250Liter Alumium alloy |
| Tyre Qty: | 6 wheel |
| Tyre specification: | 10.00R20 16PR |
| 3, Modification Describtion | |
| Cargobox Type: | Hydraulic front lift type cargobox |
| Cargobox Length(mm): | 4800 |
| Cargobox Width(mm): | 2250 |
| Cargobox Height(mm): | 1200 |
| Bodyplate Specification: | Sideplate:4mm, Bottomplate:6mm |
| Cargobox plate material: | Manganese steel plate |
| Hydraulic System: | Famous brand oil-cylinder, pump |
| 4,Quotation | |
| FOB (Shanghai): | |
| Attach: | |
| 1, Quotation expiry: 30 days | |
| 2,Delivery Term: around 25 working days since receive deposit | |
| 3,Payment Term: 30% deposit, 70% balance paid before delivery | |
| 4, Shipping type: Container, RO-RO, Bulk | |
