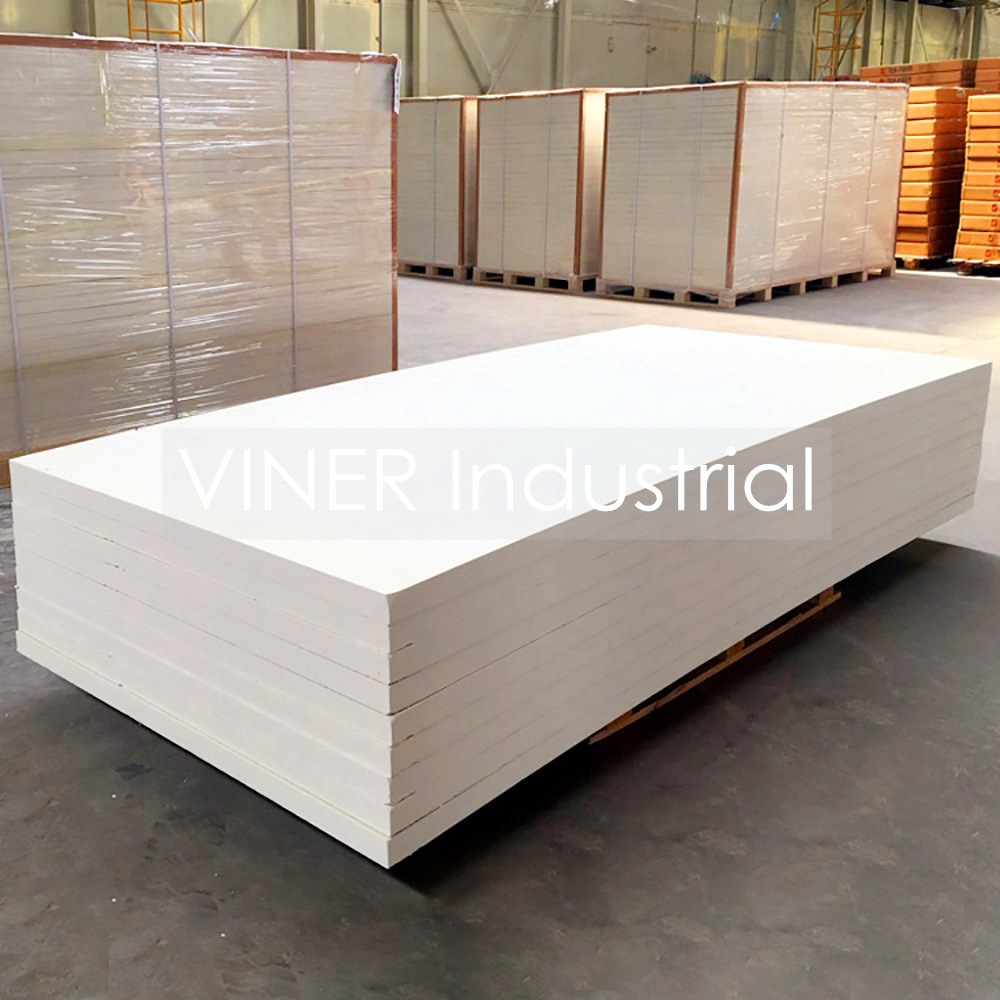

1800 Fireproof Polycrystalline Mullite Ceramic Fiber Board for Heat Insulation

FOB Price:	22.50 - 46.50 USD/Piece
Supply Ability:	500 Piece(s) per Month
Shipping:	By DHL/Fedex/Air/Sea
Payment Terms:	L/C, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	In wooden case

Quick Details

Brand Name: VINER
Working Temperature: 1600-1900
Length: 900mm, 1000mm, 1200mm, 2400mm
Width: 600mm, 900mm, 1200mm
Thickness: 25mm, 30mm, 40mm, 50mm, 80mm, 100mm, 120mm
Model Number: VN-PMF
Shrinkage (1800℉, 3h): 0.13(1.7)*
Thermal Conductivity: 0.296
Fiber Diameter: 3.0
Ultimate Strength (≥ MPa): 0.3
Chemical Composition: Al2O3+SiO2
Grade: HP (High Pure)
Application: Liners Of Industrial Furnace

Specifications

VINER Industrial Polycrystalline Mullite Ceramic Fiber Board Characteristic:

1. High temperature stability to 1600-1800C

2. Ideal for use as furnace insulation in sintering, heat Treating and chemical thermal process systems

3. Non-Flammable

4. Excellent thermal shock resistance

5. Resistance to most chemical attack; it has excellent Stability in acid metal slags and is insoluble in most acids

6. Resistance to oxidation and attack by furnace atmospheres

7. Resistance to abrasion

8. Good electrical resistivity

9. Excellent thermal stability

10. Can be used as insulation packing in furnace spaces and around furnace sight tubes & ports

11. Fill in expansion joints and masonry cracks inside of Furnaces.

VINER Industrial Polycrystalline Mullite Ceramic Fiber Board Technical Parameter:

Items		VN-1700	VN-1800
Classification Temperature(oC)		1600	1800
Density(volume weight)(kg/m3)		300-600	300-600
Linear Contraction(%)		<2(15006h)	<1(1500oC6h)
Chemical Composition %	Al2O3	63.5	75
		>99	>99.5
	Fe2O3 ZrO2	<0.1 /	<0.1 /

Length Width: 600400, 1000500, 1000600(mm)

Thickness: 20-150(mm)

Note:

1. Data are average results of standard tests which are subject to variation, Don't show the guarantee data of product quality because of fluctuating within Certain range.

2. the size is also can be designed according to the clients' requirement.

Ceramic Fiber Board

Polycrystalline Mullite Ceramic Fiber Board

Zirconia Fibers Board

Ceramic Fiber Blanket

Ceramic Fiber Paper

Ceramic Fiber Module with Anchor Fixings

Polycrystalline Mullite Fiber Veneer Blocks

Ceramic Fiber Cloth

Ceramic Fiber Tape

Ceramic Fiber Bulk

Polycrystalline Mullite Ceramic Fiber Bulk

Ceramic Fiber Rope (Twisted Rope / Briaded Rope)

Ceramic Fiber Felts

Ceramic Fiber Textiles (Ceramic Fiber Yarn)

Special Shaped Ceramic Fiber Products / Vacuum Formed Ceramic Fiber Products

Company Information:

VINER Industrial Specializes in 1100, 1260, 1430, 1600, 1700, 1800 and 1900 types Ceramic Fiber Board with customized size and density. Also we can manufacture Ceramic Fiber Blanket/Paper/Cloth/Paper/Module/Rope/Furnace Chamber. Welcome to inquiry for Our Ceramic Fiber Refractory, our new fresh prices are waiting for you. Also Different sizes and kinds of high temperature furnaces, such as Muffle Furnace, Vacuum/Vertical/Rotary/Multi-Position/Multi-Zones Tube Furnace, Vacuum Furnace, Atmosphere Furnace, Crucible Furnace, Loading and Bottom Furnace, Zirconia Sintering Furnace, Vacuum Drying Oven, the chamber sizes could be according to Customers' design.

What is more, VINER Industrial produces and supplies high Temperature Kiln Furnace Spare Parts including MoSi2/SiC heating elements, Ceramic Fiber Refractory, Alumina/Zirconia Ceramics, SiC Ceramics, Boron Nitride (BN) Ceramics, Vacuum Flanges, Thermocouple, PID Temperature Controller, Quartz Furnace Tube, Resistance Wire, etc. Ps kindly inquiry us, we will try our best To serve you.

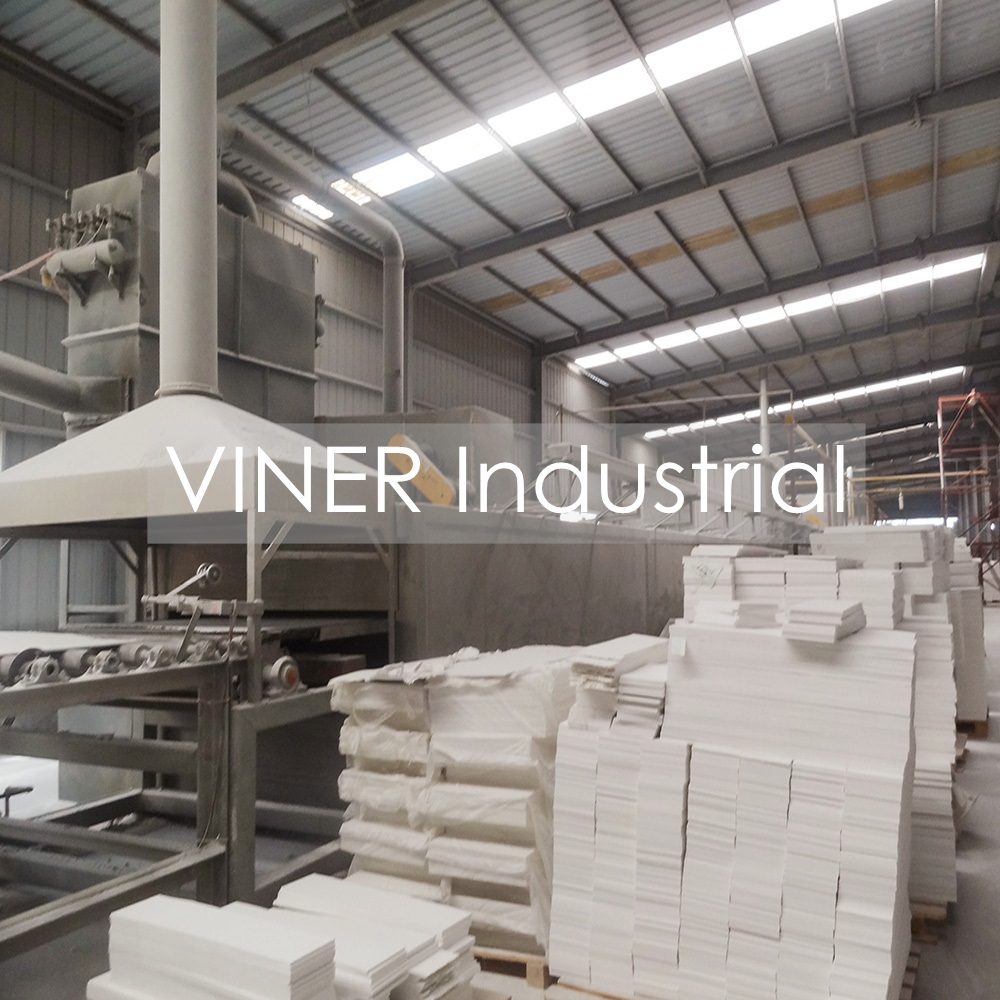

Welcome to visit manufacture line!!
