Shantou Free Trade Zone Songtian Electronic Technology Co., Ltd.
China Manufacturer with main products: Creamic Capacitor, Film Capacitor, Metal Oxide Varistor, NTC Thermistor |

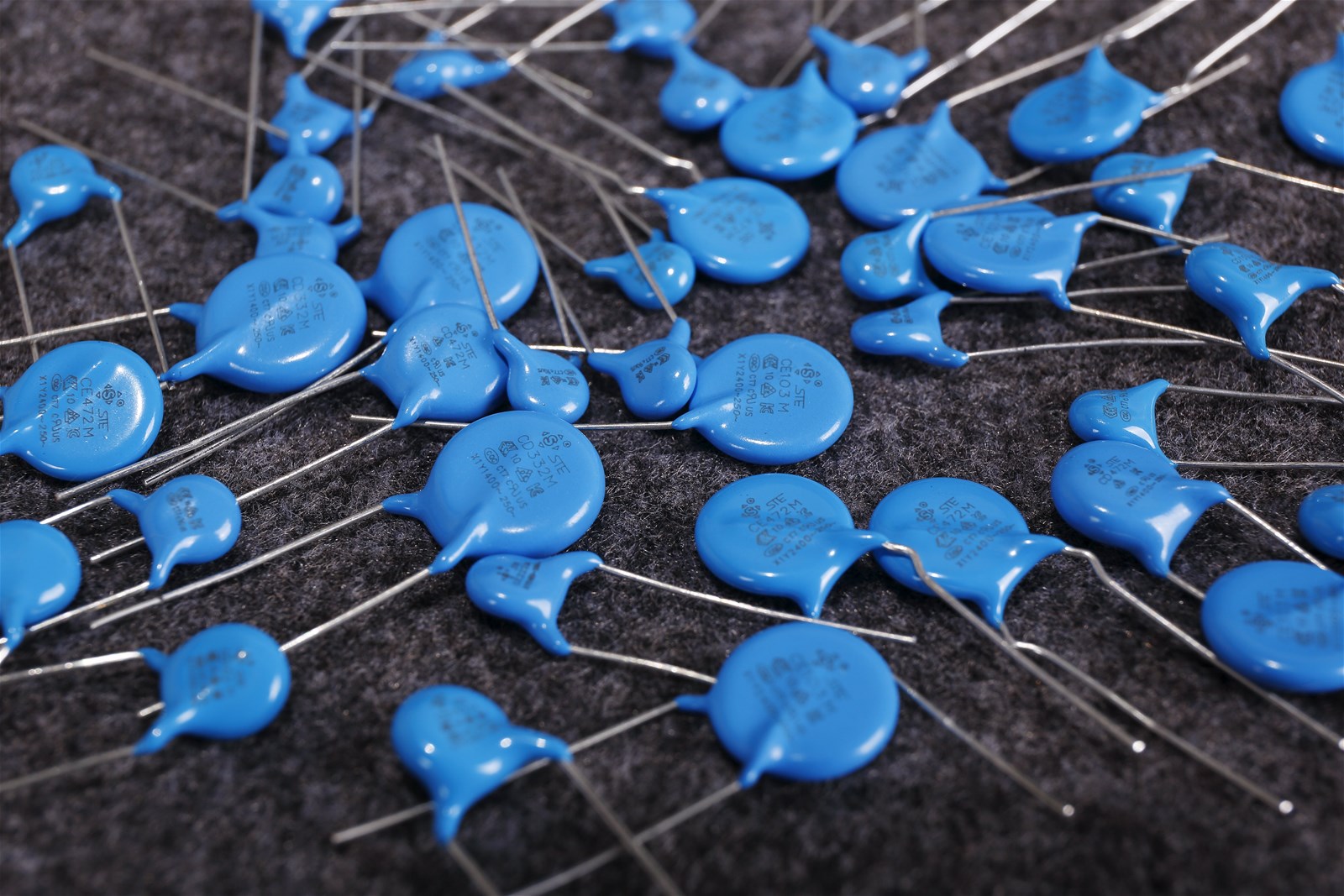

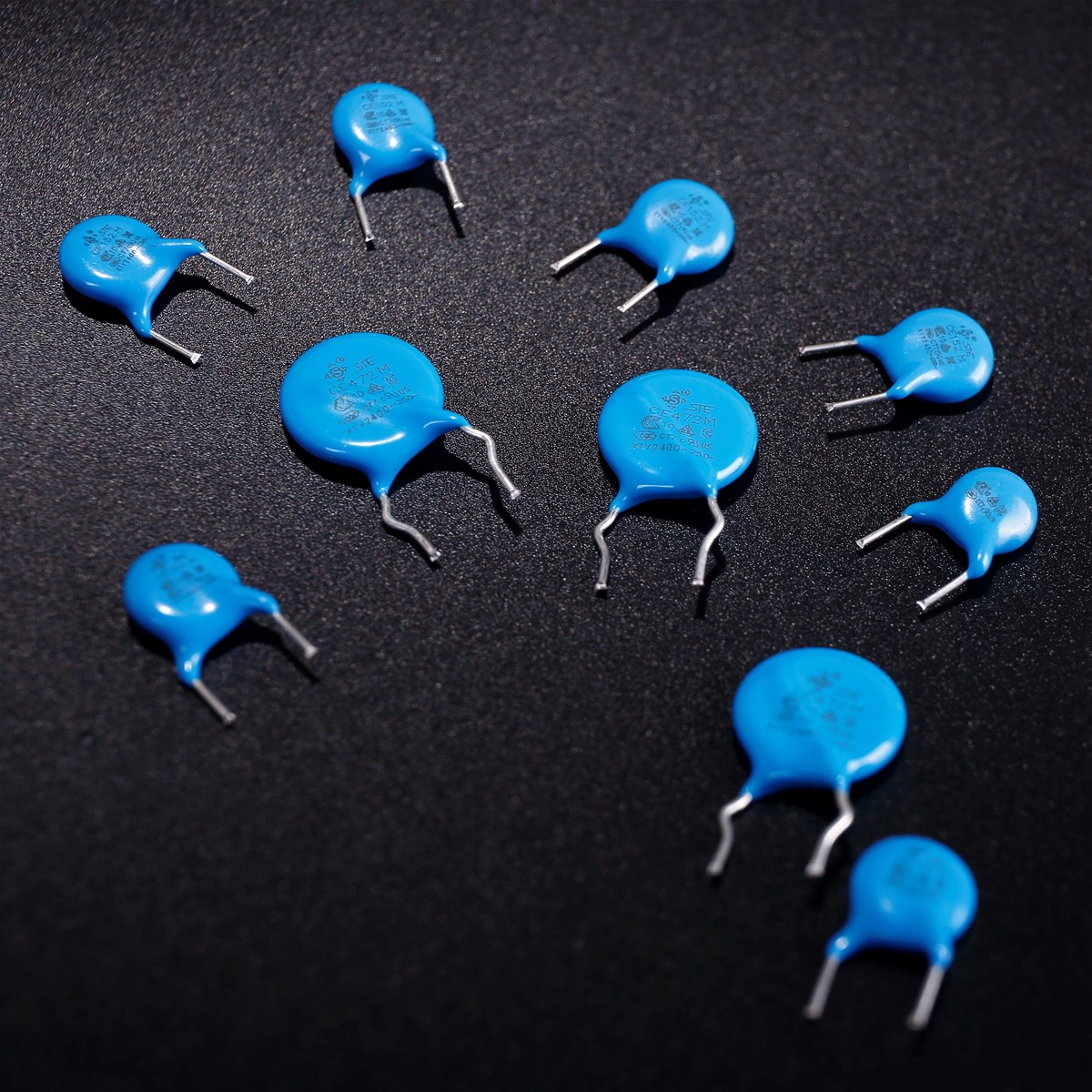

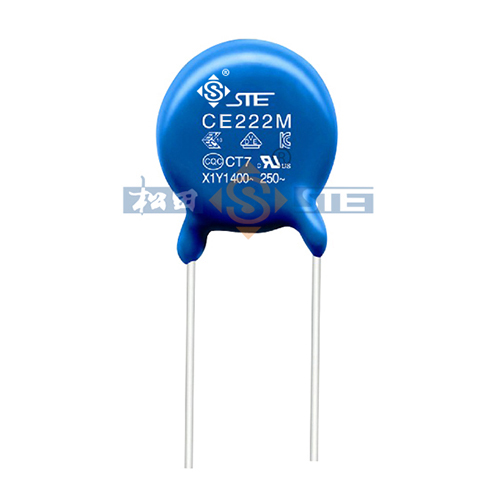

Y Safety Standard Certified Ceramic Capacitors Y2-222m
| FOB Price: | 0.04 - 0.06 USD/Piece |
|---|---|
| Shipping: | FOB SHENZHEN |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Southeast Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | BULK:INNER BOX/OUTER CARTON TAPING:INNER BOX/OUTER CARTON |
Quick Details
- Brand Name: STE
- Size: 222M
- Type: Ceramic capacitor
- Material: ceramic
- Color: blue
- Model Number: Y2-222M
- Certificate: UL/Ktl/CQC/VDE/ENEC/IEC-CB
- Operating Temperature: -40ºC-125ºC
- Storage Temperature: 15ºC~35ºC
Specifications
the following example is for you reference.
Features:
Wide operating voltage range from 100pF to 10000pF
Operating Temperature: -40C~125C
Storage Temperature: 15C~35C
Fix capacitors Y2 for electromagetic interference suppression and connection to the supply mains has high dielectric coefficient ceramic dielectric and flame retardant epoxy resin package
Technical details:
Capacitance and Dissipation factor testing condition
25C,1KHz,1Vrms Dissipation Factor(tanδ)
≤2.5% Rated Voltage
250VAC Withstand Voltage
2500VAC Insulation Resistance (I.R.)
IR≥10000MΩ Temperature Characteristic
Y5P,Y5U,Y5V
Operation method of useage:
Can be used for power supply noise suppression circuit in cross connection and bypass.It is a primary and secondary coupling X/Y capacitor used as AC line filter and switching power supply and AC converter
Package:
BULK:INNER BOX/OUTER CARTON
TAPING:INNER BOX/OUTER CARTON
