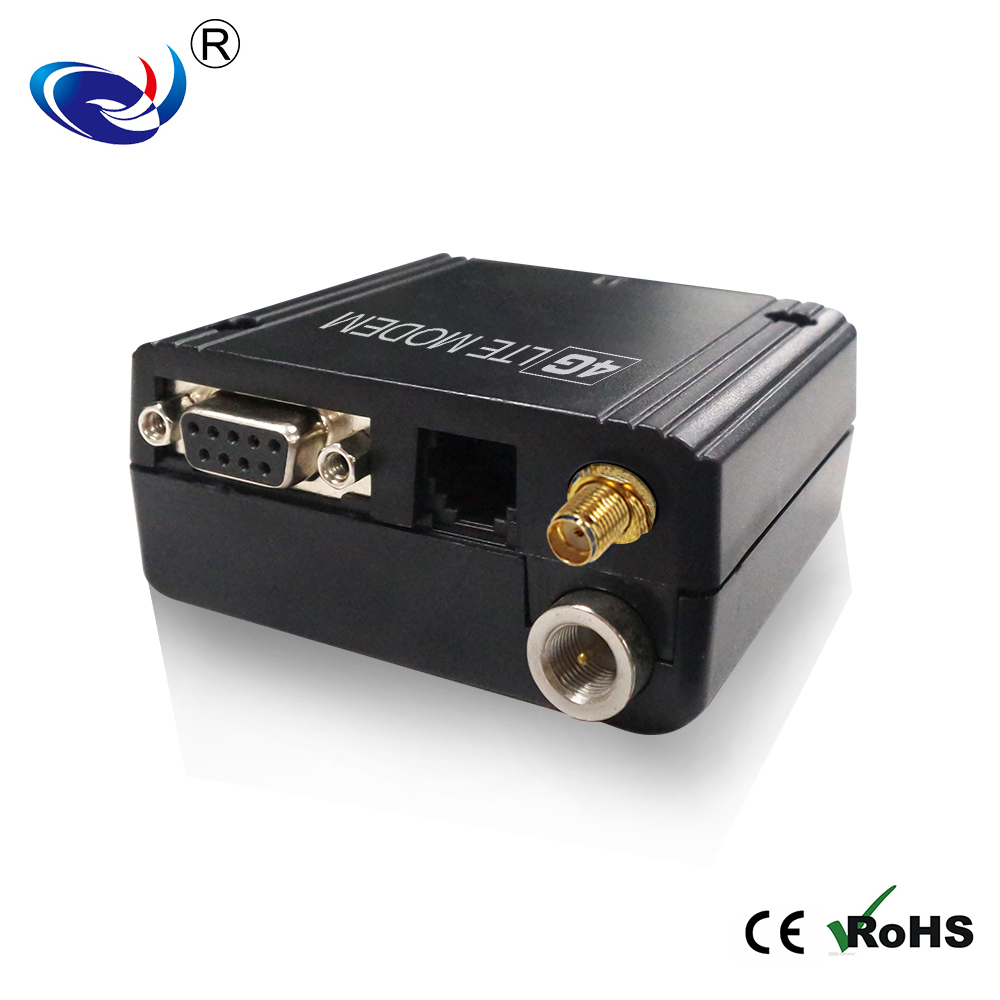

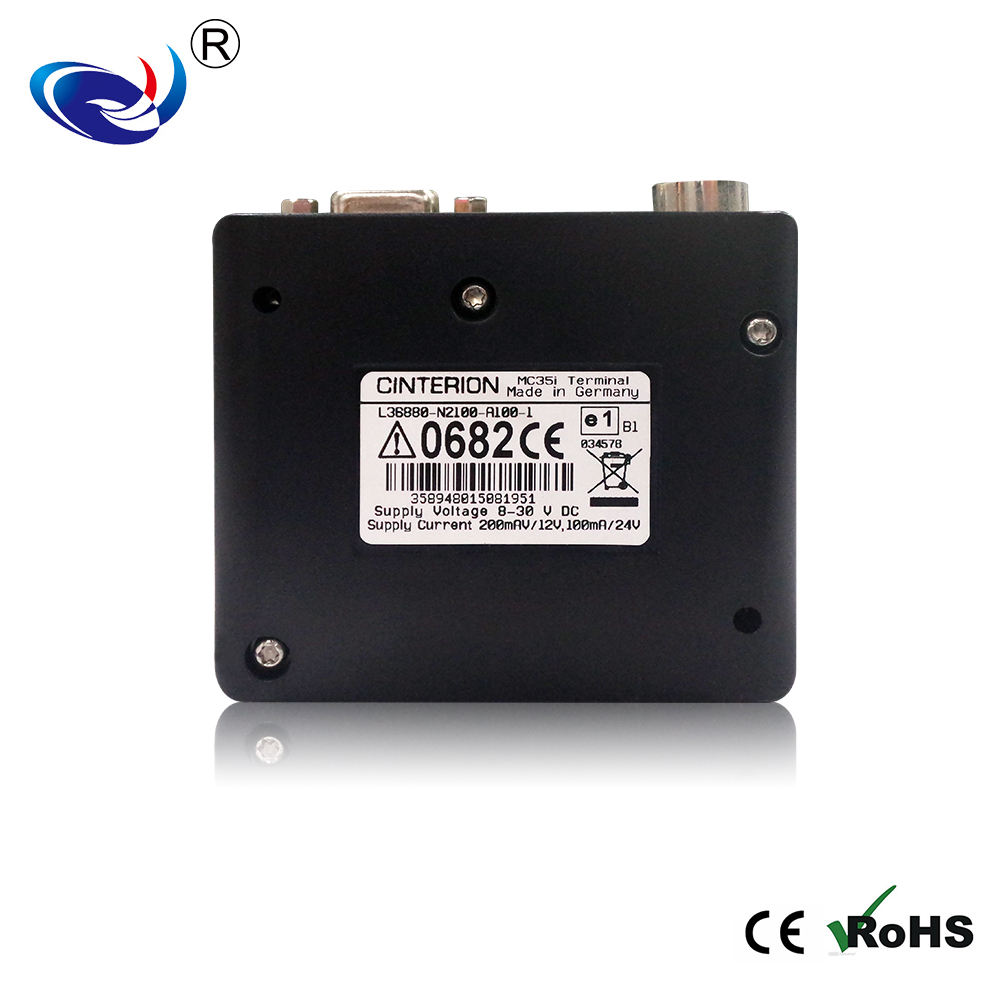

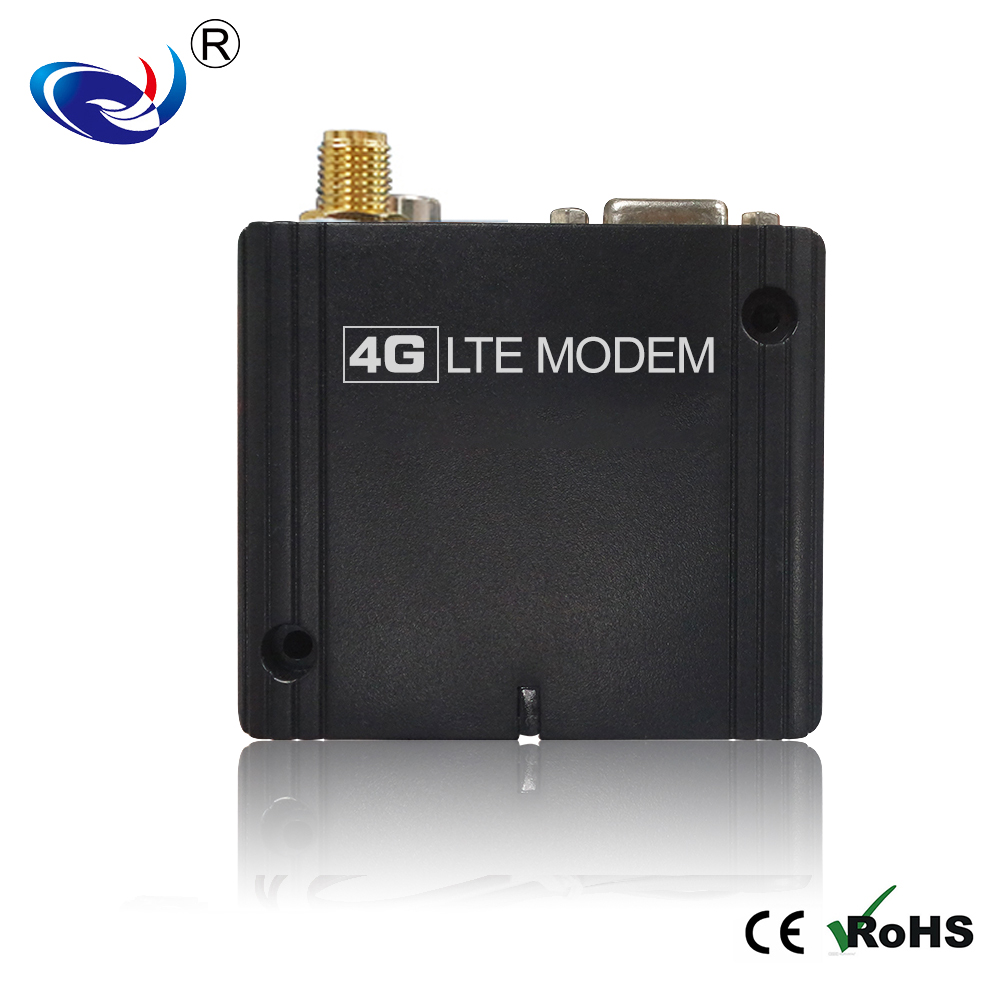

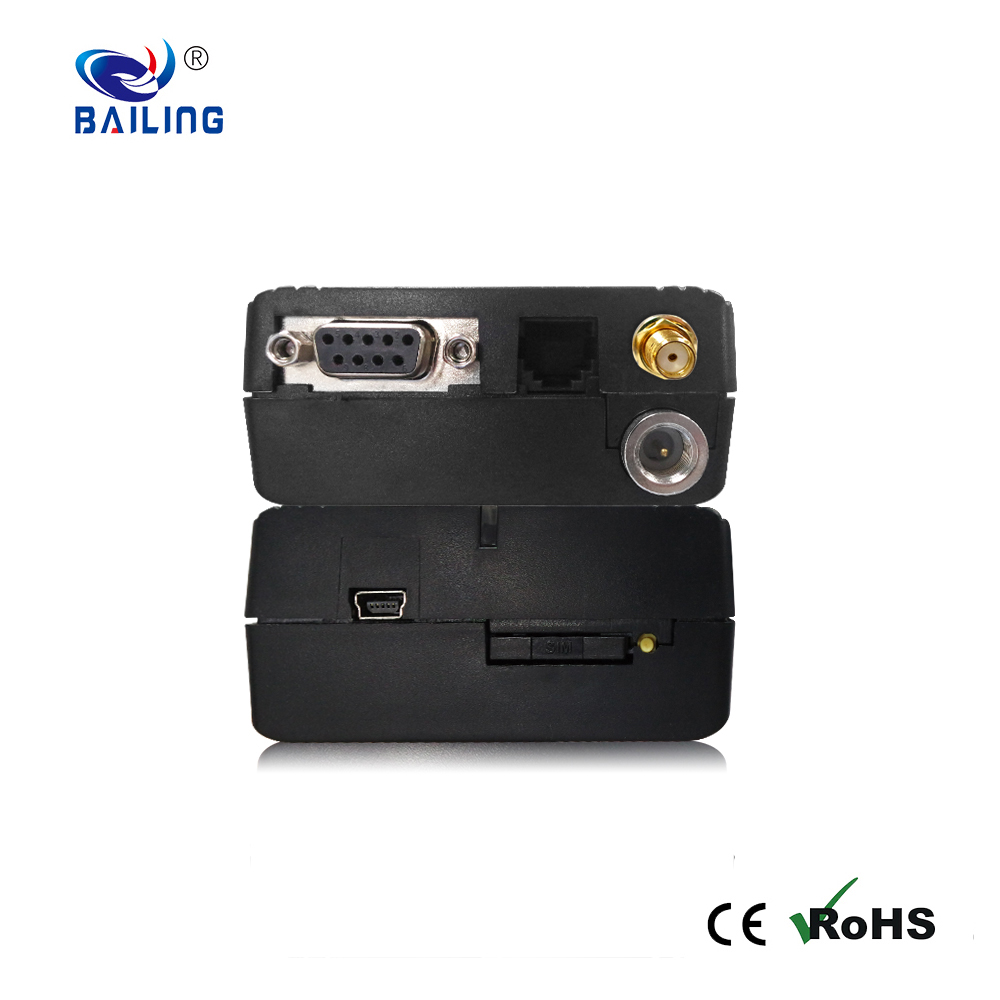

4G CAT 4 Modems Sim7600 Lte GPRS GSM Modem

FOB Price:	20.00 - 70.00 USD/Piece
Supply Ability:	10,000 Piece(s) per Day
Shipping:	SHENZHEN
Payment Terms:	T/T, Western Union, MoneyGram

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	BOX

Quick Details

Brand Name: BL
Interface Type: RS-232
Type: Wireless
Style: External
Products Status: Stock
Model Number: M
Certification: CE ROHS
Transmission Rate: 1024Kbps
interface: RS232

Specifications

4G CAT 4 Modems sim7600 lte GPRS GSM modem

BAILING 4G LTE_MODEMS M7600 -Categories: 4G CAT 4 Modems, industrial wireless router,

Tags: 4G, GPRS, GSM, Latest, Modem, Serial,

First 4G LTE CAT4 Category 1 Serial

BAILING 4G LTE_MODEMS M7600 -Series of modems are well known and used widely wherever a cellular solution is required. the new Smart BAILING 4G LTE_MODEMS M7600 - category 1 modem is physically and electrically compatible to the 3G and 2G versions, making swap outs in the field easy. Importantly the new 4G modem comes with the BAILING Smart Stack as standard which will allow you to make full use of your preferred mobile network irrespective of the capability of your remote device.
It is housed in a rugged and lightweight ABS housing with complete industrial-grade components, the Smart M40 is ideal for all Industrial remote data applications including:

Remote Meter Reading / Smart Metering

Fleet Management

Security

Signage

Irrigation and other control applications.

Main features:

Module: SIMCOM	SIM7600
4G frequency band:	Variant for EMEA/Korea/Thailand SIM7600E: LTE-TDD B38/B40/B41 LTE-FDD B1/B3/B5/B7/B8/B20 UMTS/HSPA+ B1/B5/B8 GSM/GPRS/EDGE B3/B8 Variant for North America SIM7600A: LTE-FDD B2/B4/B12 UMTS/HSPA+ B2/B5 Variant for Australia/New Zealand/South America SIM7600SA: LTE-TDD B40 LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28 UMTS/HSPA+ B1/B2/B5/B8 GSM/GPRS/EDGE 850/900/1800/1900MHz
Data	LTE- FDD Max 150Mbps (DL) Max 50Mbps (UL) HSPA+ Max 42Mbps (DL) Max 5.76Mbps (UL) UMTS Max 384Kbps (DL) Max 384Kbps (UL) HR, FR, EFR, AMR, AMR-WB coding schemes SMS mobile Terminate/Originate BAILING's Smart Stack.
Feature	Standard 3GPP at commands TS 27.007 Output power: Class 3 @ LTE and Class 3 @ UMTS. Input voltage: 5V to 32V Current consumption (TBC): Standby: 30mA @ 12V Average in Use (3G): 250mA @ 12V Average in Use (4G): 205mA @ 12V Support 3V/1V8 U-SIM card Dimension: 63mm x73mm x 32.5mm Weight: 110g approx. Operating temperature: -30C° to +85C° RoHS compliant
Further feature	Serial Interface Physical:ABS case Serial RS232 and power through DC RF connector: 1xFME male 1xSME male Small size: 63mm x73mm x 32.5mm Weight: approx. 110 grams Power in: 5Vdc to 32Vdc UDP/TCP stack: BAILING Smart Stack Temperature range: -30C to +85C SIM holder accepts standard 3V/1.8V mini SIM Single mode LTE operation LTE FDD bandwidth 1.4-20MHz System release 3GPP Rel 11 4G Cat 4 up to 150Mbps downlink, 50Mbps uplink 3G HSPA+ up to 42Mbps downlink, 5.76Mbps uplink SMS mobile Terminate/Originate FOTA and DOTA functions supported
Protocols	TCP/UDP/PPP/FTP/HTTP/SMTP/MMS/NTP/ PING/DTMF/FILE/CMUX*/QMI
