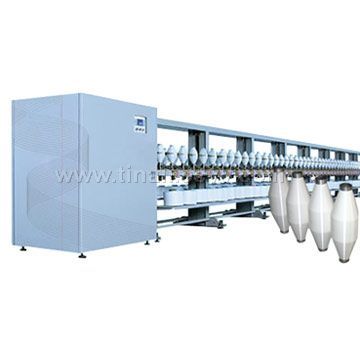

Computerized Winder

Features: 1) Dual side, dual layer 2) With a digital controlling system for frequency conversion and speed adjustment 3) With an AC servo system 4) With a tensility controller for arc belts and fine turnings to keep stable yarn speed and well-distributed tensor 5) Spindles with take-up capability suitable for high quality yarns for 2-for-1 twister 6) To wind different semi-finished yarns into double-cone bobbin yarns 7) Equipped with nozzle to finish blended yarns 8) Specifications: a) Spindle amount: 500 - 1,000 (16 spindles per section) b) Spindle types: ND1303 (upper), ND2509 (lower) c) Spindle pitch: 230mm d) Max. spindle speed: 3,800rpm e) Max. winding speed: 660m/min f) Roll bobbin dimensions: ?42 x ?92 x 150mm g) Twist direction: S / Z h) Max. roll package diameter: 110mm i) Max. roll package capacity: 1.2kg j) Motor power: 0.55kW, 3kW 9) Dimensions (L x W x H): 7,850 x 1,260 x 1,800mm

Model No:

SLT2004-B
