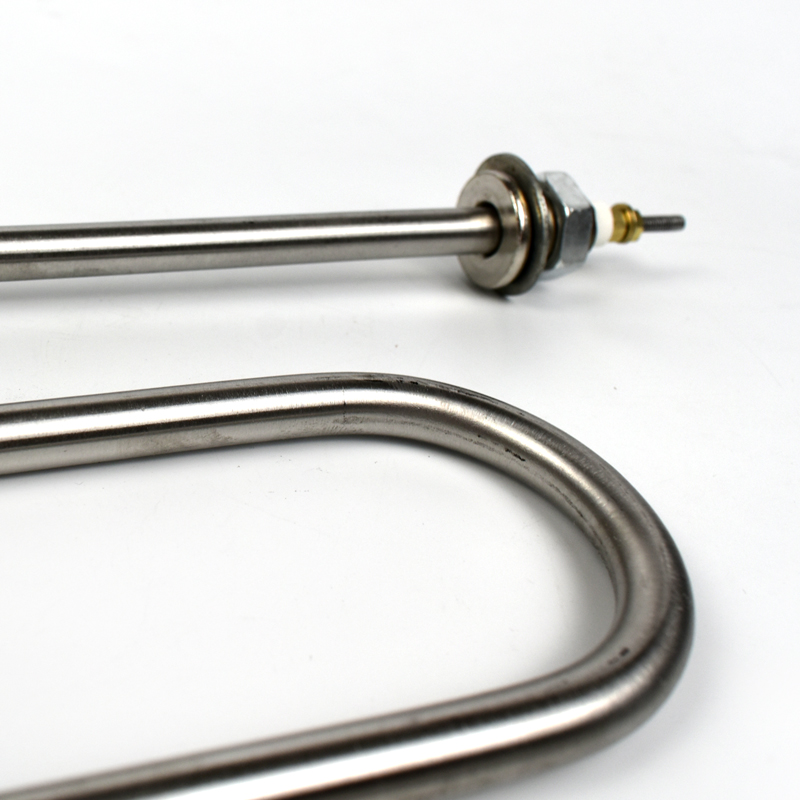

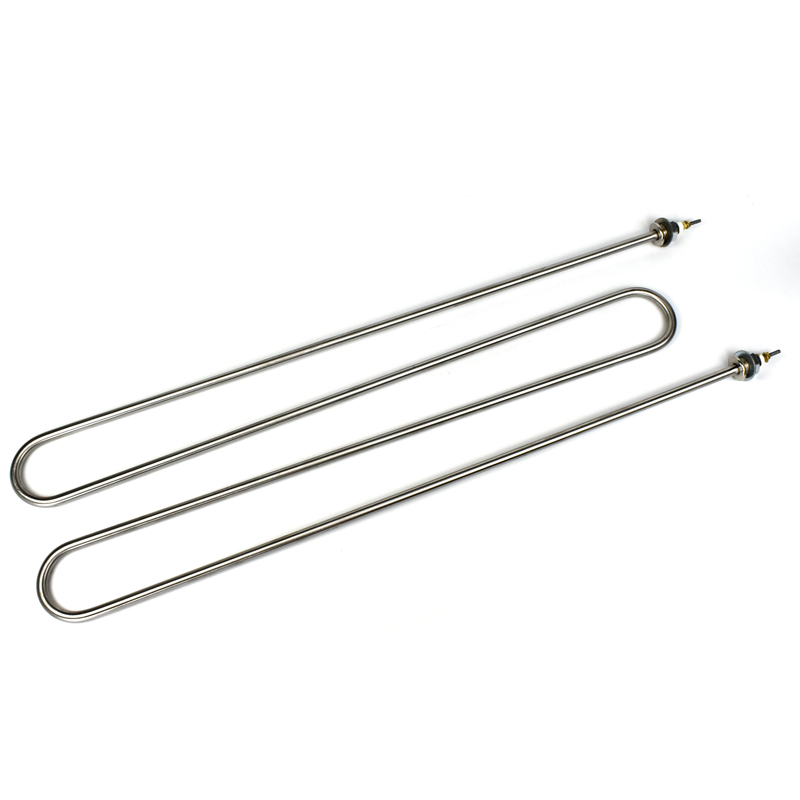

Heat Resistor Water Immers 220V 3Kw Electric Heater Tubular Heating Element

FOB Price:	10.00 - 15.00 USD/Piece
Supply Ability:	100,000 Piece(s) per Month
Shipping:	Express/Ocean freight
Payment Terms:	L/C, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	1. Export standard wooden box 2. Export carton for 220V 3000W tubular heater

Quick Details

Warranty: 1 year
Certification: None
Brand Name: BRIGHT
Type: Immersion Heater
Condition: New
After-sales Service Provided: No overseas service provided
Power(W): 3000
Voltage: 220
Model Number: STG-102560 2203K-W
Power Source: Electric

Specifications

Heat Resistor Water Immers 220V 3Kw Electric Heater Tubular Heating Element

Products Description

Tubular heater is electrical heating elements with two head. Protected with a stainless steel sheath. Mostly double head heater is used for heating up solids such as injection presses heating plates or various tools, double head heater can also be used for heating up water of gases under certain conditions.the choice of technology will depend on technical specifications required and the application.When you don't know exactly which product you are looking for, we will recommend you the best solution for your needs.Tubular heaters are custom designed in a various shapes to as client's requirements for direct immersion in liquids such as water, oils, solvents and process solutions, molten materials as well as air and gases.

Tubular Heater Technical Parameter

Wattage Tolerance	+5%, -10%
Resistance tolerance	+10%, -5%
Insulation resistance (cold)	≥ 500 MΩ
Maximum leakage current (cold)	≤ 0.5 mA
Dielectric strength	1500 V
Sheath/Casing materials	SUS304/ SUS321/ SUS316/ SUS316L/ SUS310S/ Incoloy800/ Incoloy840/ Copper/ Titanium
Terminal Styles	Plain Pins/ Flag Terminals/ Spade Terminal/ Screw Terminal/ Special Terminal
Shape	U/ Hairpin/ W/ Z/ Straight/ Spiral/ Circular(with extension)/ Double Loop/ Bent Hairpin
End cap	Ceramic end (standard)/ Cement/ Epoxy/ RTV seal
Construction Type	Swaged / High Watt Density up to 1400°F (760°C) Not Swaged / Low Watt Density up to 1200°F (650°C) Other
