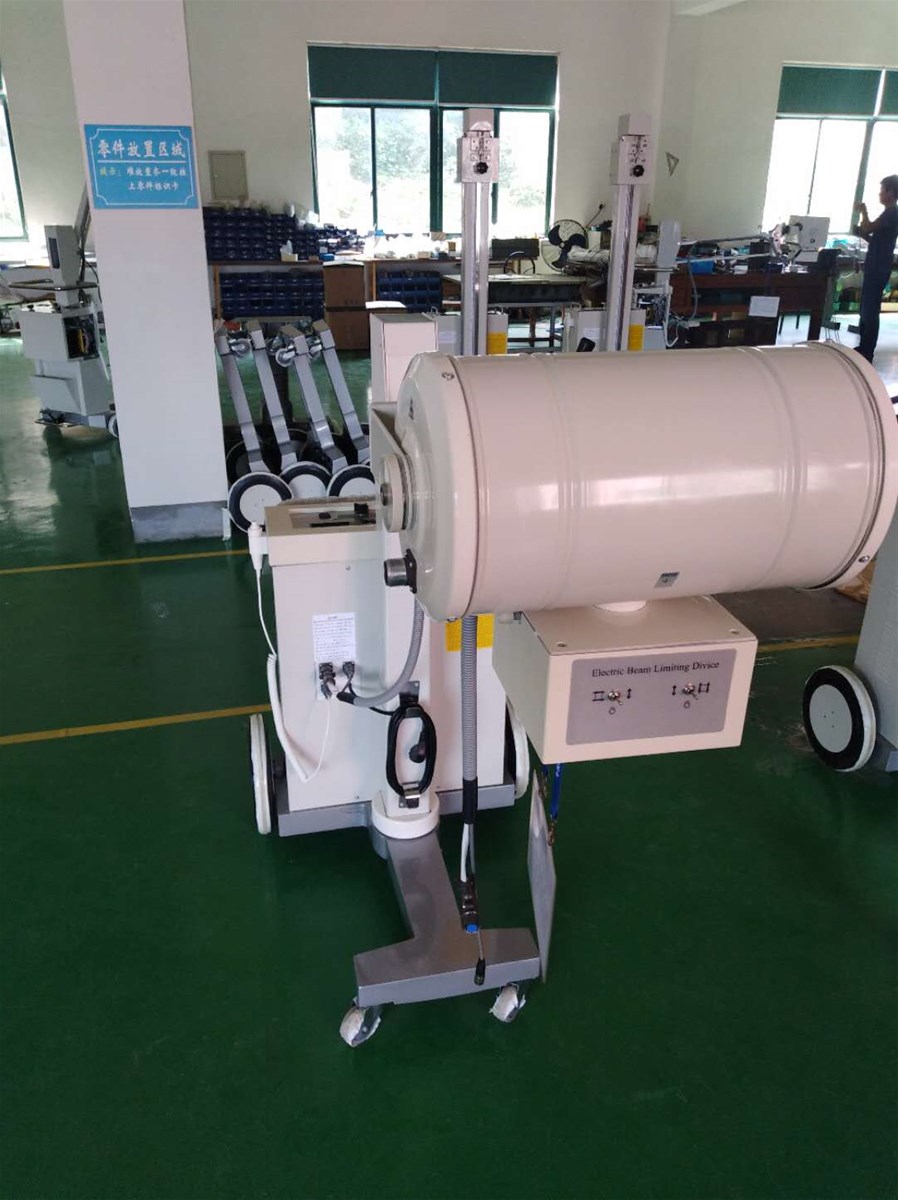

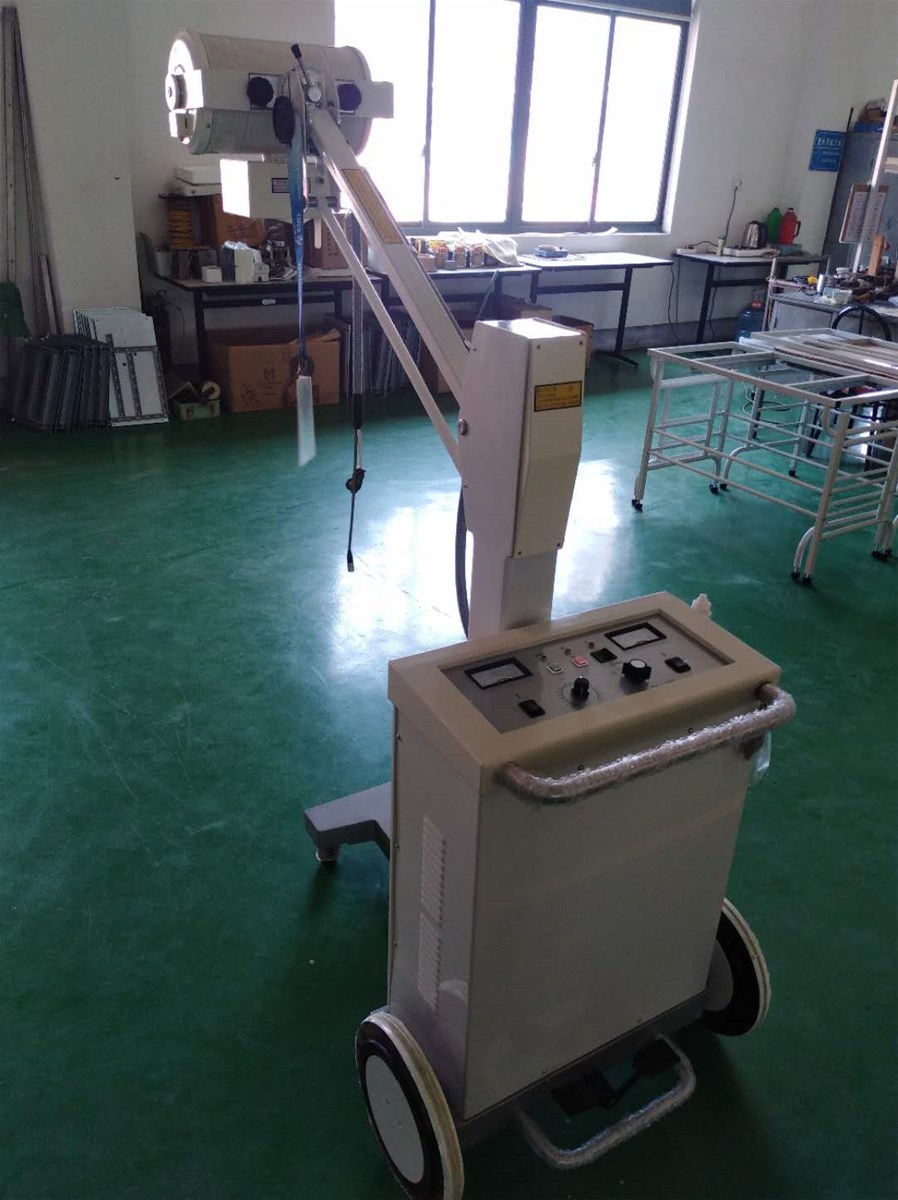

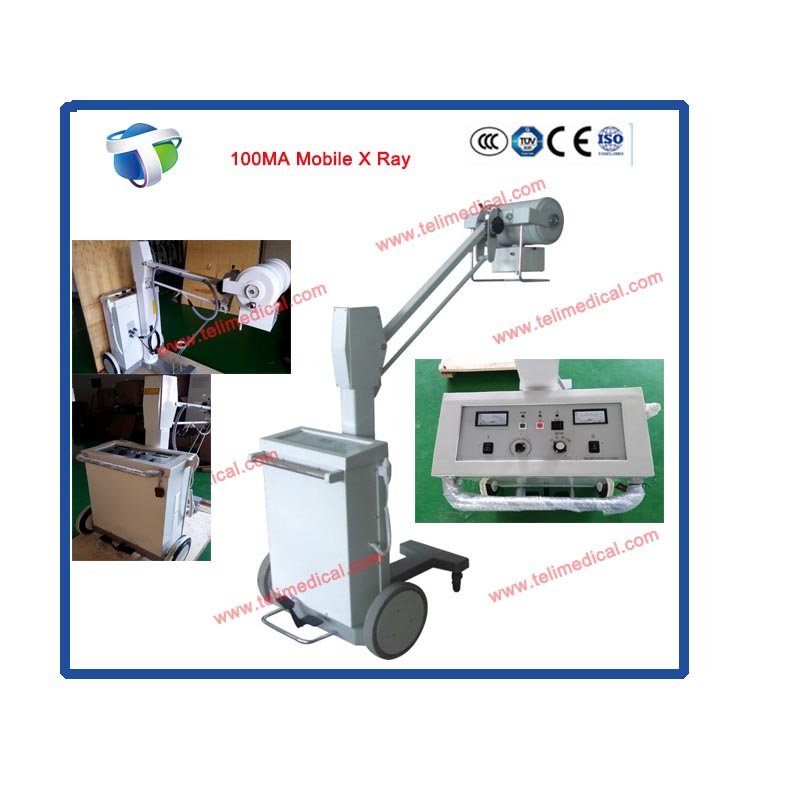

Medical Hospital High Frequency X Ray Equipment 50 100 200 300mA Portable Mobile X-Ray Machine
| FOB Price: | 1000.00 - 4000.00 USD/Unit |
|---|---|
| Supply Ability: | 1,000 Unit(s) per Month |
| Shipping: | fob china |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | Packing data:Size:135cm * 80cm * 150cm;G.W.:135kg;N.W.:95kg;1 set/wooden case |
Quick Details
- Brand Name: TELI
- Properties: High-Energy-Ray Medical Equipments
- Size: 135cm * 80cm * 150cm
- Thickness: 50
- Power Supply: 220V 50HZ
- Model Number: TL100MA
Specifications
*****USE*****:
Take X-ray photography of the head, extremities, chest cavity and other parts of human in the ward, operation room or outdoors. Doctors can easy to move the x ray machine to anywhere. Easy to operate.
*****Main Features*****:
1.It adopts high voltage silicon full wave commuting technique.
2.It processes light and audio double indication systems for radiography,
which gives the operators and patients more Convenience and flexibility.
3.It had the x-ray tube capacity protective indicating devices.When the
capacity is over the highest, the exposure doesn't take Place so as to
avoid the x-ray tube's damages in case of the wrong operation during
the radiography.
4.while performing bedside radiography the arm of the x-ray tube can
rotate 90°.this x-ray unit with a light mobile cart can be Easily brought into wards by the operators for use.
5.It is a single-focus, whole-wave commuting, oil-immersed, self-cooling, mobile x-ray unit.
| Power Supply | Single phase AC voltage 180V ~ 250V; Frequency 50Hz;Source resistance ≤ 0.8Ω; Capacity 5kW;Current< 24A ( instant ) |
Radiography |
Current:30mA, 40mA, 50mA |
| Time:0.063-5.0s 20grades digital display | |
| X-ray tube focus | 2.6 mm |
| Max.Distance from focus of x-ray tube assembly to ground > 1820mm Min.Distance from focus of x-ray tube assembly to ground < 550mm | |
| Collimator:Max light field 35cm * 35cm (when the distance between focus and film is 65cm) | |
| Unit moving force < 5kg | |
| Control distance of remote switch exposure:about 7m | |
| Model of x-ray tube:XD3-3.5/100, stationary anode | |
*****Max.Volume of Radiography*****
| Radiography Current (mA) | Max.Radiography Voltage (kVp) | Max.Allowable exposure time ( S ) |
| 30 | 90 | 0.063~5.0 |
| 40 | 90 | 0.063~3.2 |
| 80 | 0.063~4.0 | |
| 50 | 90 | 0.063~1.0 |
| 80 | 0.063~3.2 |
*****Warranty period:12 months from date of shipment
*****Packing data:Size:135cm * 80cm * 150cm;G.W.:135kg;N.W.:95kg;1 set/wooden case
*****Packing & Shipping*****
(1)Packaging
the product was strong export package & suitable for deliver by air, express or sea
(2)Shipping
1. Express: Ship it by UPS/ DHL/ FEDEX/ TXT express which is door to door, you just
receive it at office (3~5 days)
2. Air: Ship it by air cargo which you need go to air port to take it (2~7 days)
3. Sea: if goods are large quantity and you are not in hurry, we can ship it by sea to save
freigth cost (about one month)
