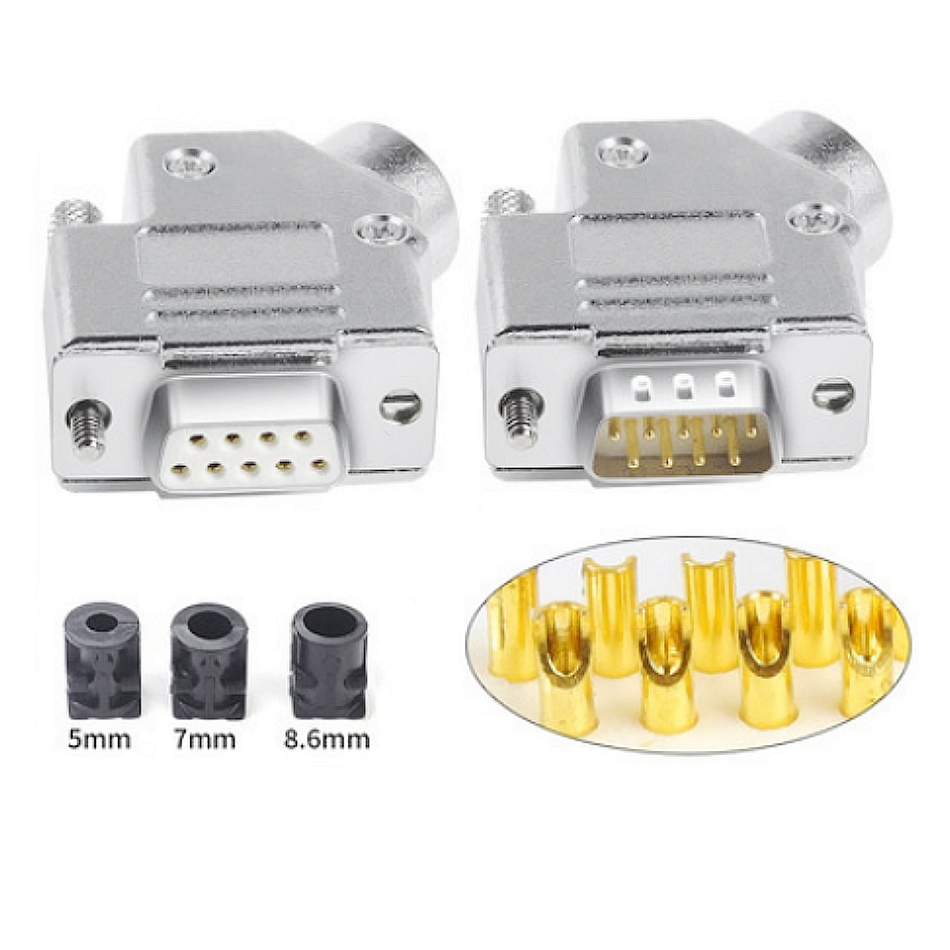

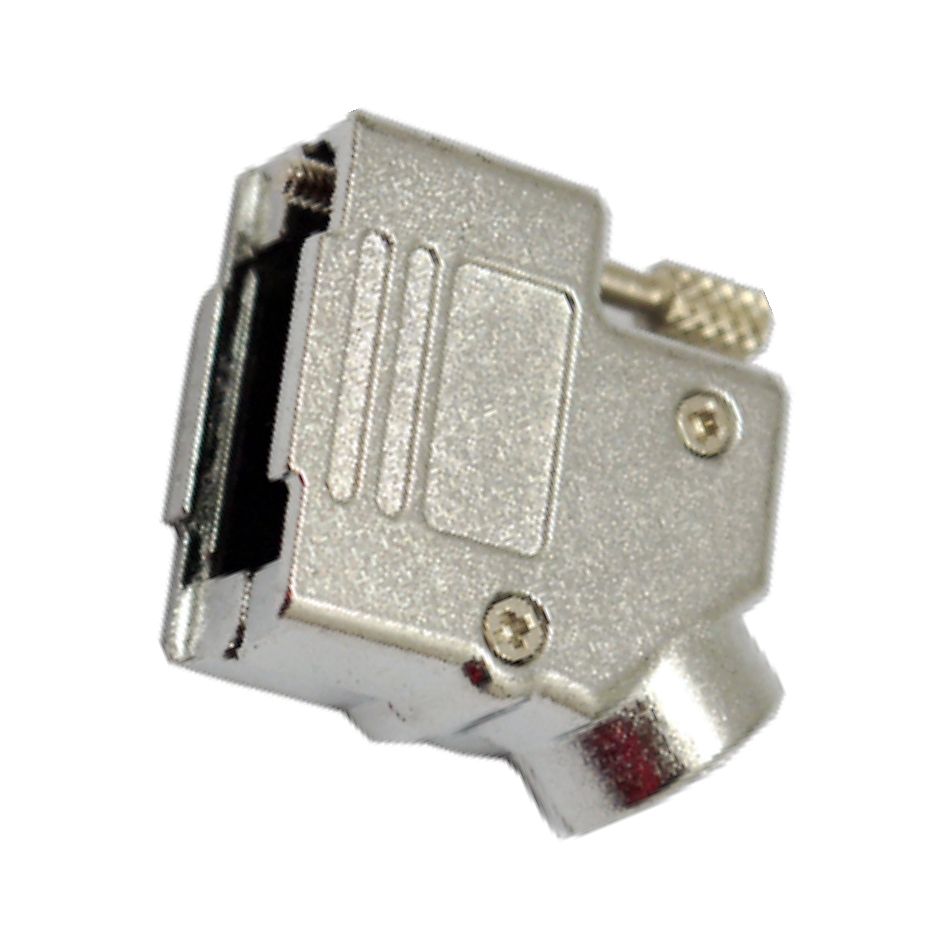

D-Sub Metal Hood 9Pin Male Female Connectors DB9 Cover RS232 Connector

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Bulk or single packaged units plastic bags points set with inner packing carton packing

Quick Details

TECHNICAL SPECIFICATIONS
Cable Exit Angle:	Straight / Right Angle/45 degree
Cable Diamater (mm):	0.118''--0.512'' (3.00mm--16.00mm)
Cable entry:	Straight Cable Entry
Material, Backshell:	Die-Cast Metal (Zinc Alloy)
Pin count:	9.15.25.37.44.50.62.78Way/Pin
Plating:	Nickel,Chrome
Special Features:	EMI/RFI Shield, Grommets,Rubber
Screws material:	Steel,Stainless steel
Mounting style:	Jack Screw;Slotted screw
Screws Type:	UNC#4-40;M3;M2.5;#2-56
Salt spray test:	24Hour;48Hour;96Hour
Certification	Rohs or Reach
Features:	EMV complete metal hood for D-Sub connectors Attenuation better than 40dB at 30 MHz to 1GHz Zinc die casting with silver/Nickel surface Temperature range -40...+120°C
Applications:	Non-conductive grommet/strain relief supplied to enhance shielding and provide proper strain relief.Automotive Diagnostics Telecommunications, Data, Consumer, Industrial & Instrumentation, Military and Medical or More...
