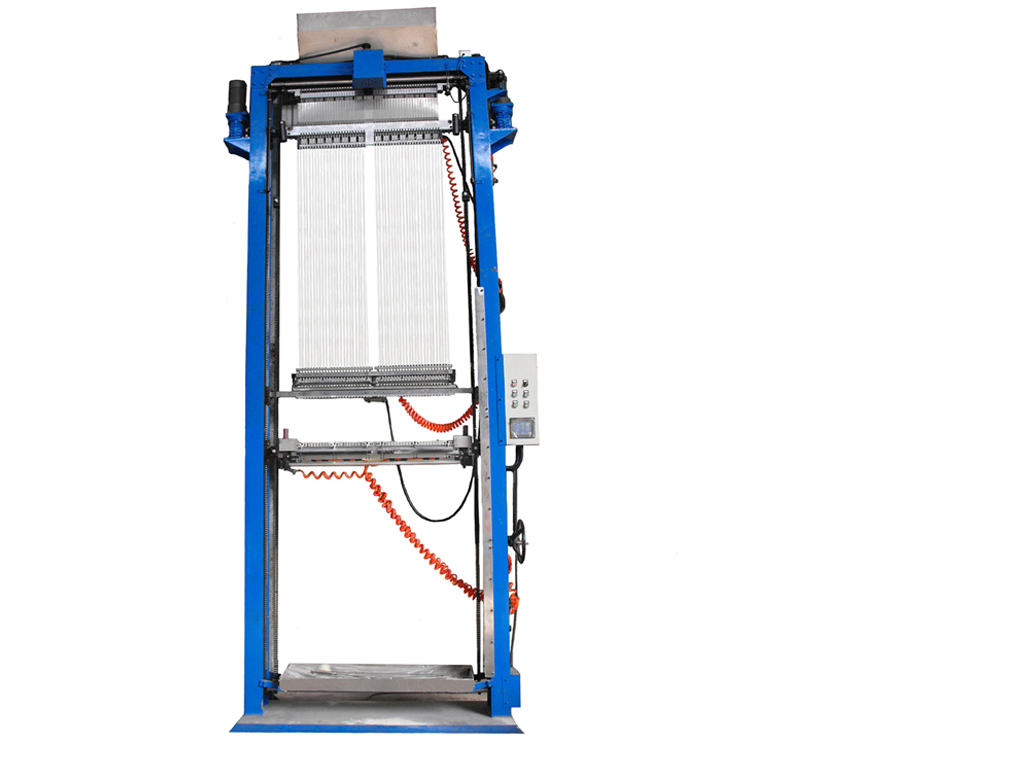

Feihong PLC 48 Station MGO Powder Filling Machine for Tube Heaters

FOB Price:	1000.00 - 5000.00 USD/Set
Supply Ability:	50 Set(s) per Month
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	wooden box/others

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Brand Name: Feihong
voltage: 220,380
weight: 1000
Condition: air supply
Model Number: FM48

Specifications

FM48-PLC (double guide tubes 6-48 station) MGO powder filling machine, Is designed and manufactured according to the characteristics of Imported similar machines. the machine is controlled by PLC and Human Machine interface (HMI/touch screen), and add guide rail and rotary Clamping mechanism. It can make 6-48 different stations, custom According to customers requirement, different diameters, different Length. At present the max filling length can up to 8000mm, and max Filling diameter is Φ28.5mm.

Due to use PLC and encoder counting device, it can set the length on the machine easily, just enter the actual length need to fill (length of the empty pipe) on the touch screen, the machine will adjust Automatically, the adjustment is quicker and more accurate. Besides, the Position during filing will be more accurate. There is helical nozzle Inside the guide tubes, the exposed of mandrel (hook) can be adjusted by The motor. It is a recommend filling machines for tubular heaters.

Feihong PLC 48 station MGO powder filling machine for tube heaters
