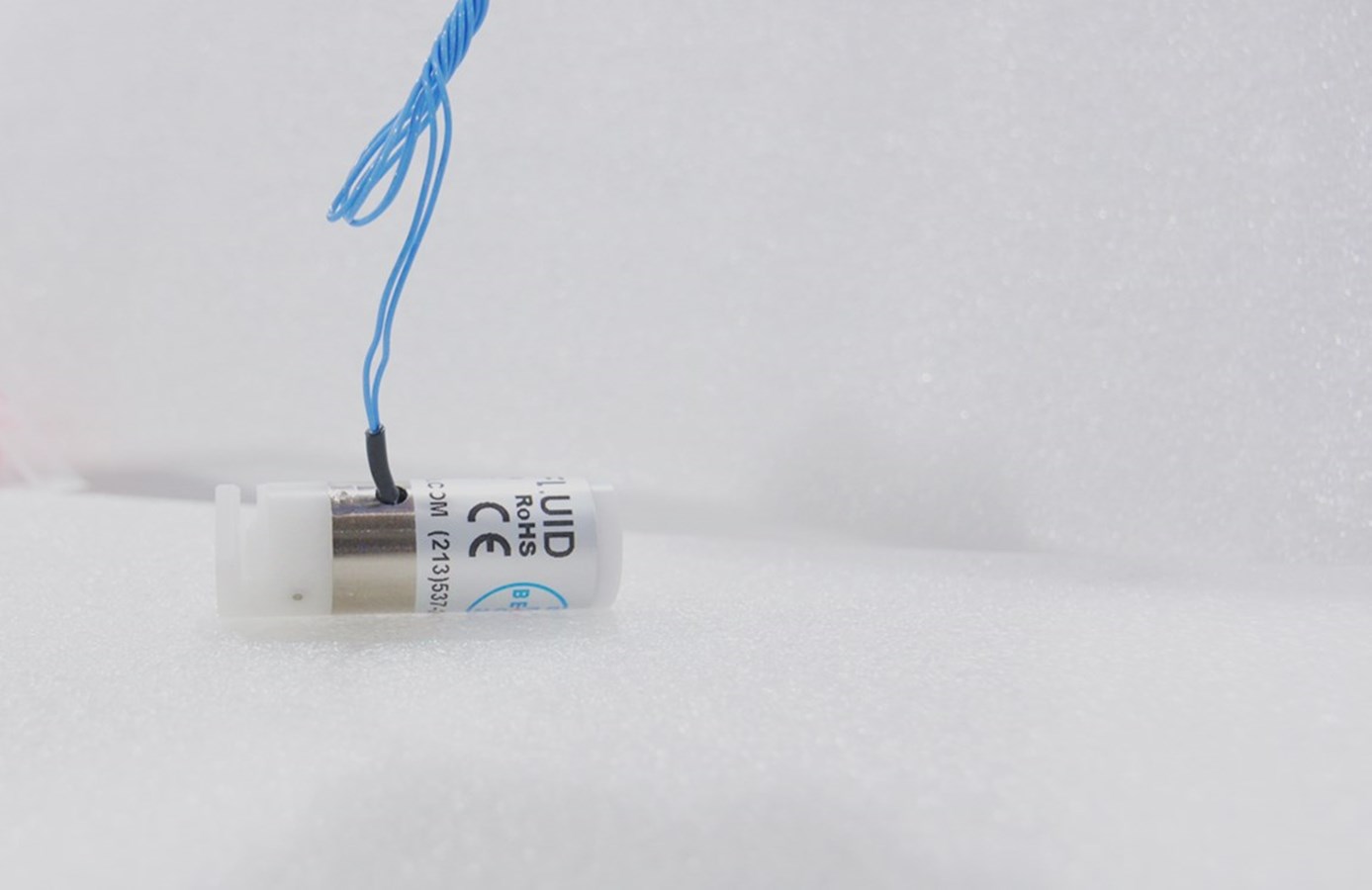

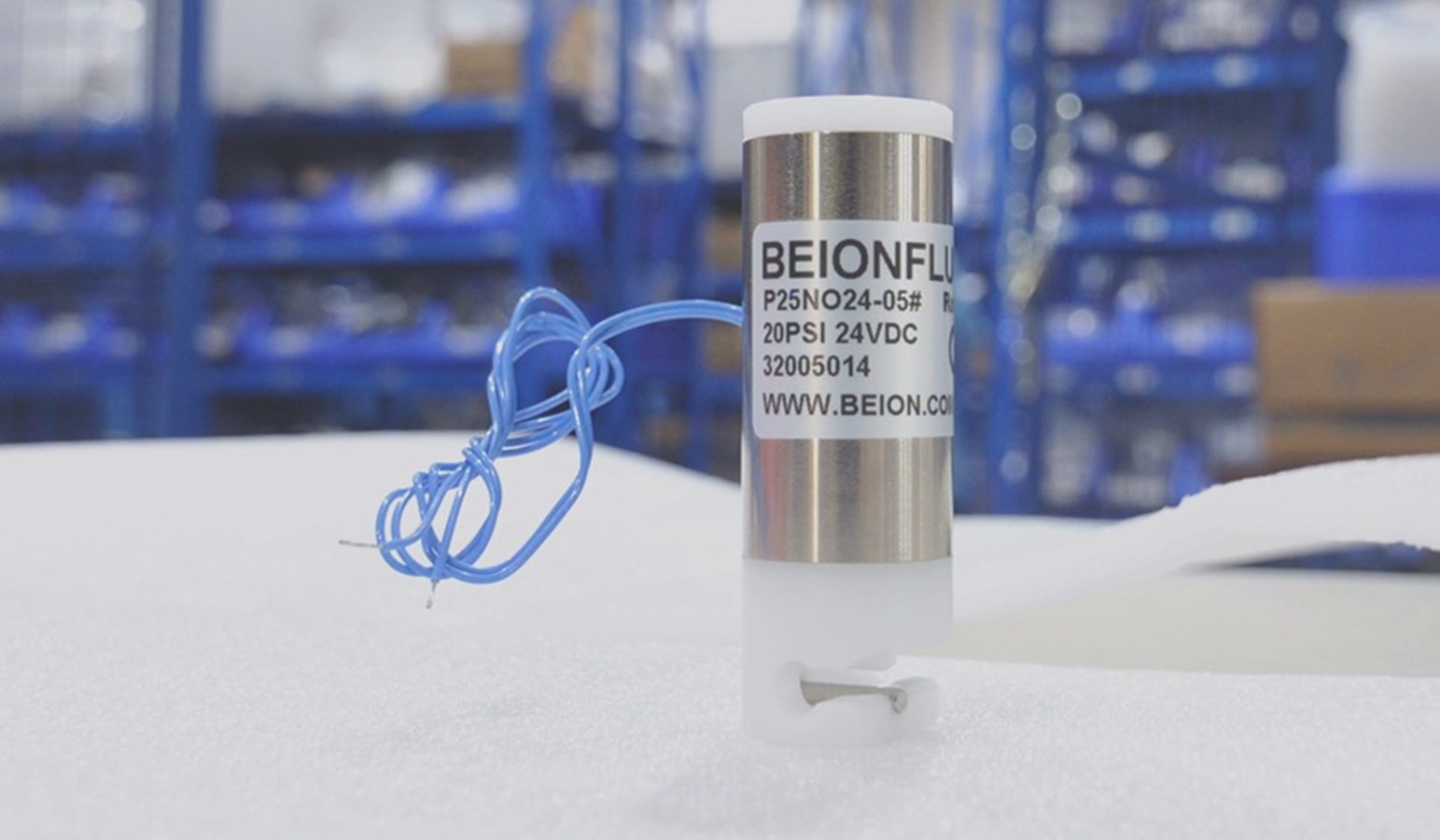

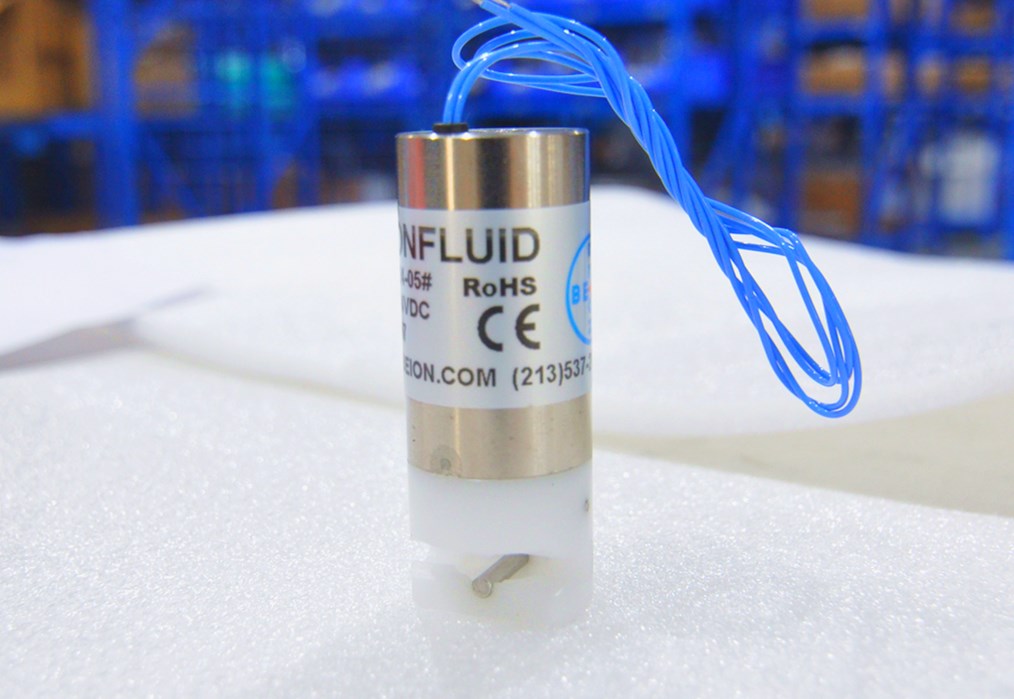

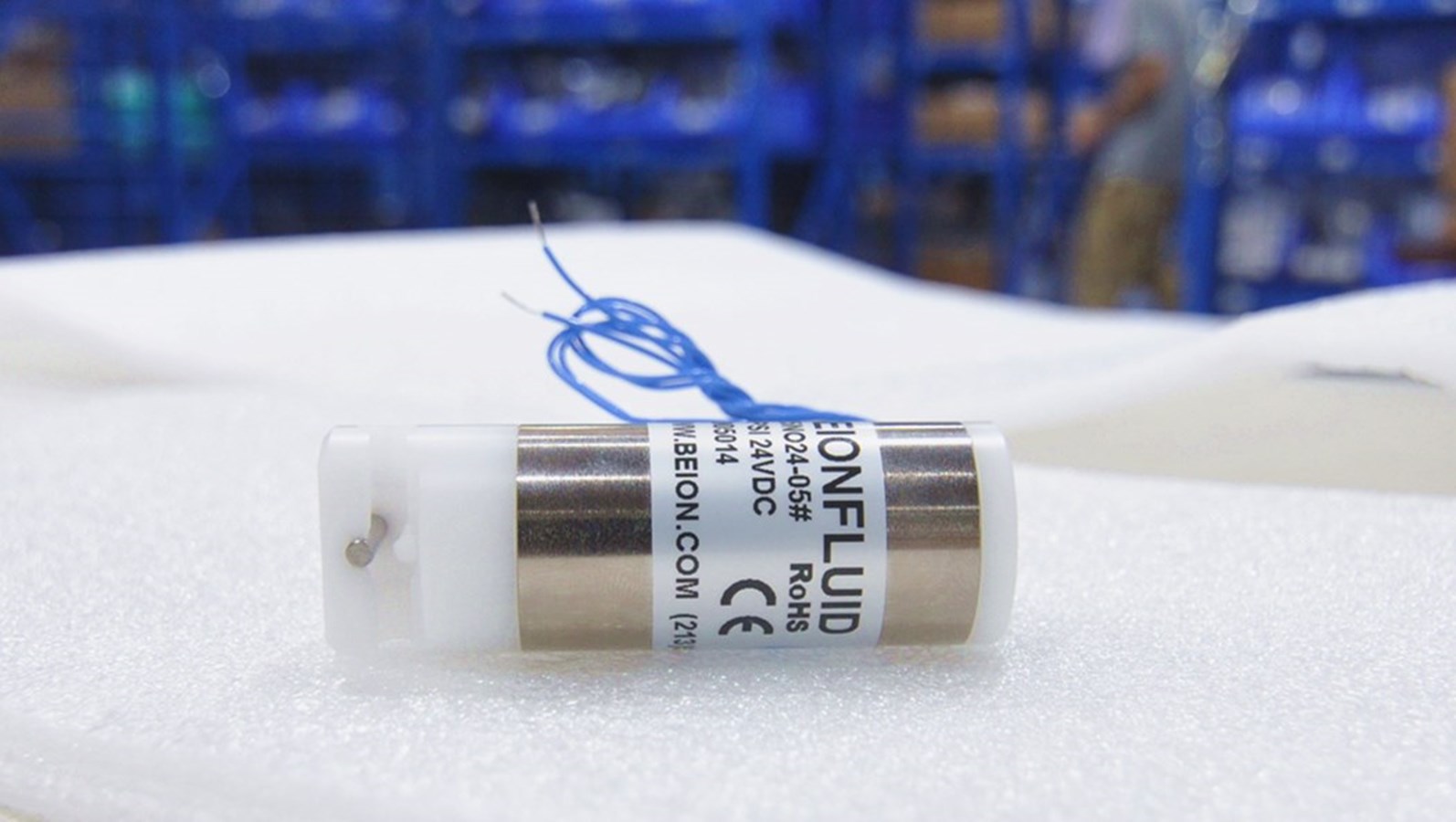

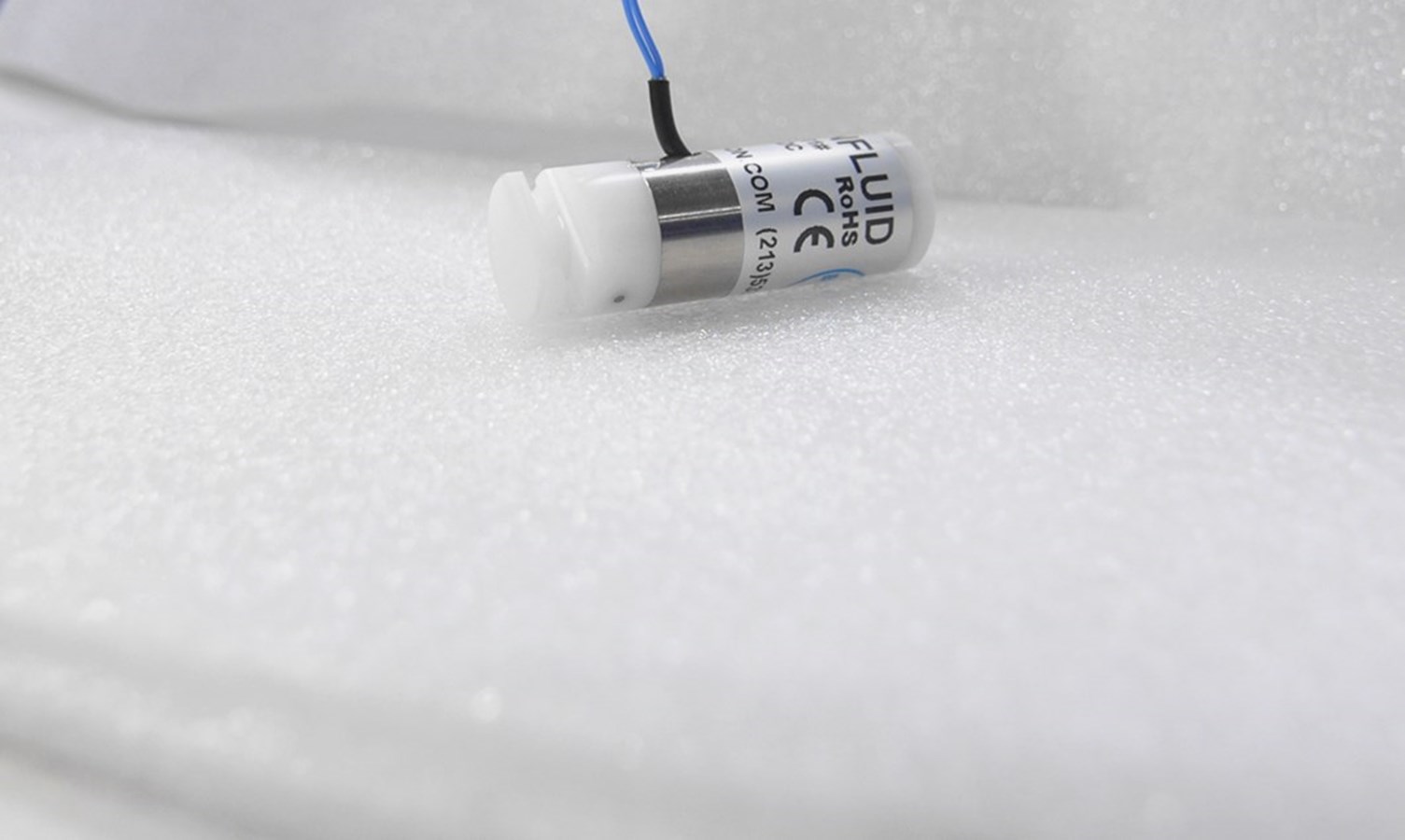

Normally Open Solenoid Valve Applied in Medical Instruments
| FOB Price: | 25.00 - 35.00 USD/Piece |
|---|---|
| Supply Ability: | 2,000,000 Piece(s) per Year |
| Shipping: | FedEx or as client's requirements |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | standard carton |
Quick Details
- Brand Name: Beion
- Temperature of Media: Medium Temperature
- Material: Stainless Steel
- Pressure: Medium Pressure
- Standard or Nonstandard: Standard
- Model Number: P20NC24-02#
- Port Size: 20mm
- Media: Acid
- Power: Solenoid
- Structure: Pilot
- working voltage: 24VDC
Specifications
Description for P Series of Pinch Valve:
L Solenoid operated, widely applied to applications such as IVD, medical instruments, analytical instruments, etc.
L Long life span(valve: 20,000,000 times, tubing >1000,000 times)
L Low consumption/high heat dissipation rate
L Regular open-and-close working mode
L Zero dead volume, effectively prevents cross-infection
L Safe and reliable tube fixing mode, without fluid path cutting off
L Multiple tubes applied to various chemical and corrosive resistance requirements
L Optimal closing force, specialized silicone tube fitted which is located in the bottom groove of pinch valve body,accurately designation and processing technical making the tube is clamped more stable without extra clamping devices to fix the tube.
L Multiple specifications of pinch valves, P series pinch valve and FT series pinch valve, 2 way(Normally open/Normally close) and 3 Way (one pipe side for normally open and the other pipe side for normally close) for both series, fitted with tubes which different specifications are available.
Specification:
Valve Types & Weight | ||
ValveType |
Overall Dimensions |
Weight |
P20 |
0.75 inches |
2 oz(57g) |
P25 |
1.00 inches |
5 oz(142g) |
Parameters for 2 Way Pinch Valve | |||
Valve Type |
Voltage |
Power @ 70.F(21℃) |
Current @ 70.F(21℃) |
P20 |
12 VDC |
2.8 watts |
0.22 amps |
P20 |
24 VDC |
2.8 watts |
0.10 amps |
P25 |
12 VDC |
4.0 watts |
0.32 amps |
P25 |
24 VDC |
4.0 watts |
0.16 amps |
Parameters for 3 Way Pinch Valve | |||||
Valve Type |
Soft Tube Size |
Structure |
Voltage |
Power @ 70.F(21℃) |
Current @ 70.F(21℃) |
P20 |
I.D.≥1/32" |
3-way |
12 VDC |
4.0 watts |
0.31 amps |
P20 |
I.D.≥1/32" |
3-way |
24 VDC |
4.0 watts |
0.16 amps |
P25 |
O.D≥3/16" |
3-way |
12 VDC |
4.0 watts |
0.66 amps |
P25 |
O.D≥3/16" |
3-way |
24 VDC |
4.0 watts |
0.34 amps |
Structure and Pressure Range |
| |||||
Valve Type |
Tube Type |
2-Way (NC) |
2-Way (NO) |
3-Way(T) |
Minimum Pressure |
Maximum Pressure |
P20 |
-01 |
√ |
√ |
√ |
0 PSI |
15 PSI |
P20 |
-02 |
√ |
√ |
√ |
0 PSI |
15 PSI |
P25 |
-05 |
√ |
√ |
√ |
0 PSI |
20 PSI |
1 |
Valve Type |
P20,P25,FT20,FT25 |
2 |
Working Status |
Normally Close(NC),Normally Open(NO),3-Way(T) |
3 |
Voltage |
12VDC,24VDC,220VAC |
4 |
Tube Type |
01,02,03,05 |
5 |
Material of Tube |
S(Specialized silicone tube),#(No tube),P(PharMed BPT) |
6 |
Additional Function |
Q(Mute) |
Description for fitted tube:
Beion Fluid provides various of high-performance pharmaceutical grade pinch tubes:
*Platinizing processed specialized silicone tube
*Anticorrosive specialized tube (Ex. PharMed BPT tube)
All the tubes are certified with USP XXII,VI, FDA and USDA standards, listed in the FDA control manual . Small possibility for adhesion even the closing time is long under the pinch valve. Good resilience and specialized processed which are available for all kinds of pinch valves, unobstructed for fluid flowing.
Characteristics for 10026 series specialized silicone tube :
*Platinum vulcanized highly purified silicone tube
*Post vulcanized process to ensure the minimum solvent
*Good compatibility for biological reagent
*Available for high temperature sterilized
*Colourless and odourless,non-toxic
*Temperature range:-54℃to 204℃
*ISO Class 7 clean room produced
*Life span ≥ 1,000,000 times
Pinch Tube Diameter &Product Number | ||||||
Suffix Number for Pinch Valve |
Fitted Pinch Tube Specification Number |
Silicone Tube |
Specialized C-Flex |
> |
> |
Wall thickness (in/mm) |
-01 |
10025-01/10026-01 |
√ |
√ |
1/32"/0.79mm |
3/32"/2.38mm |
1/32"/0.79mm |
-02 |
10025-02/10026-02 |
√ |
√ |
1/16"/1.59mm |
1/8"/3.17mm |
1/32"/0.79mm |
-03 |
10025-03/10026-03 |
√ |
√ |
1/16"/1.59mm |
3/16"/4.76mm |
1/16"/1.59mm |
-05 |
10025-05/10026-05 |
√ |
√ |
1/8"/3.17mm |
1/4"/6.35mm |
1/16"/1.59mm |
