100W 12V Plastic Waterproof LED Drivers for LED Strips Module Signs

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	0.4Kg; 30pcs/13.0Kg/0.0.2CBM

Quick Details

Output Voltage: 12V
Input Voltage: 220V
Output Type: Single
Output Power: 51 - 100W
Brand Name: AMCFLEX
Output Current: 8.0A
Output Frequency: 47-63
Model Number: APVM-100-12
Material: Plastic Housing
Waterproof Level: IP67
Output voltage: 12V/24V/36V/48V
Application: for led strips, neon flex, led tapes, led modules,light box, cabinet lights
color: white

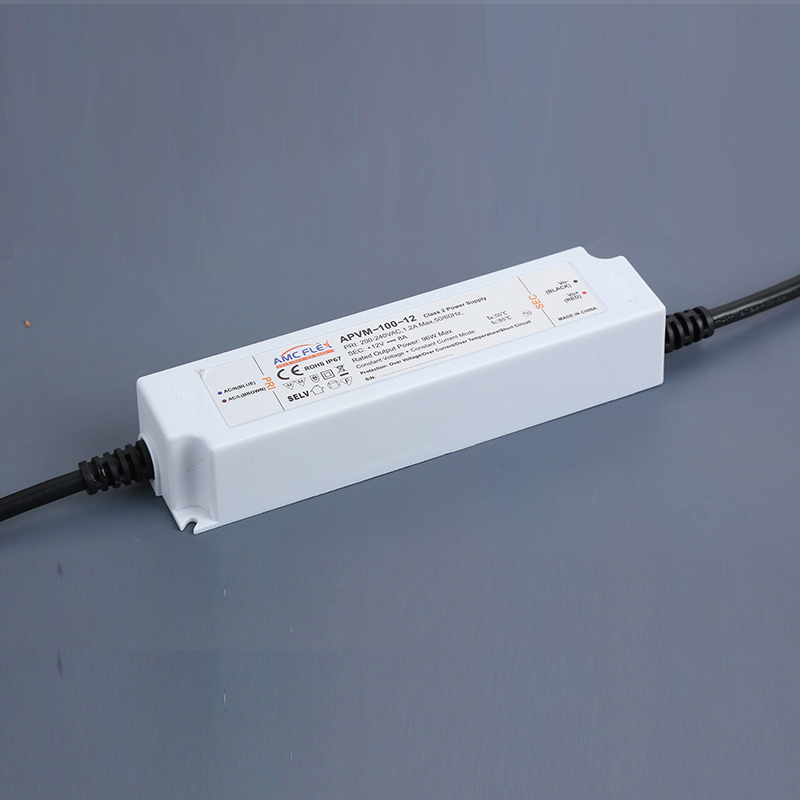

100W 12V Plastic Waterproof LED Drivers for led strips module signs
Model: APVM-100-12

Constant Voltage LED Power Supply.

Input Voltage: 200-240VAC 47-63Hz

Output Voltage: 12V

Output Current: 8A

Output Rated Power: 96W max

Inrush Current: 70 Amps max. at 230VAC/50Hz,full load

No Load Power Consumption: 0.5W

Protections: Short Circuit /over Current /over Voltage

/over Temperature protection

Short Circuit Protection (SCP) Yes,hiccup mode, auto-recovery

over Voltage Protection (OVP): Yes,hiccup mode, auto-recovery

over Current Protection (OCP): Yes,hiccup mode, auto-recovery

Working TEMP.: -30°C-70°C

Working Humidity: 10%-90% RH non-condensing

Storage TEMP.,Humidity and altitude: -40℃ ~+70°C ambient

Temperature and a 5% to 95% relative humidity range throughout

An Altitude range of -60 meters to +5000 meters AMSL.

Certificates and approvals: CE CB SELV ROHS

MTBF: 100Khours minimum at full load at 25℃ ambient

Dimension: 162 x 43x 32mm (L x W x H)

Packing: 0.4Kg; 30pcs/13.0Kg/0.0.2CBM

Model NO	Input Voltage	Output Voltage	Output current	Output Power	Efficiency	Dimension/mm
APMS-60-24	200-277Vac	24V	0-2.5A	0-60W	88%	114x64x37
APMS-60-36	200-277Vac	36V	0-1.66A	0-60W	88%	114x64x37
APMS-60-48	200-277Vac	48V	0-1.25A	0-60W	89%	114x64x37
APMS-60-54	200-277Vac	54V	0-1.1A	0-60W	90%	114x64x37
