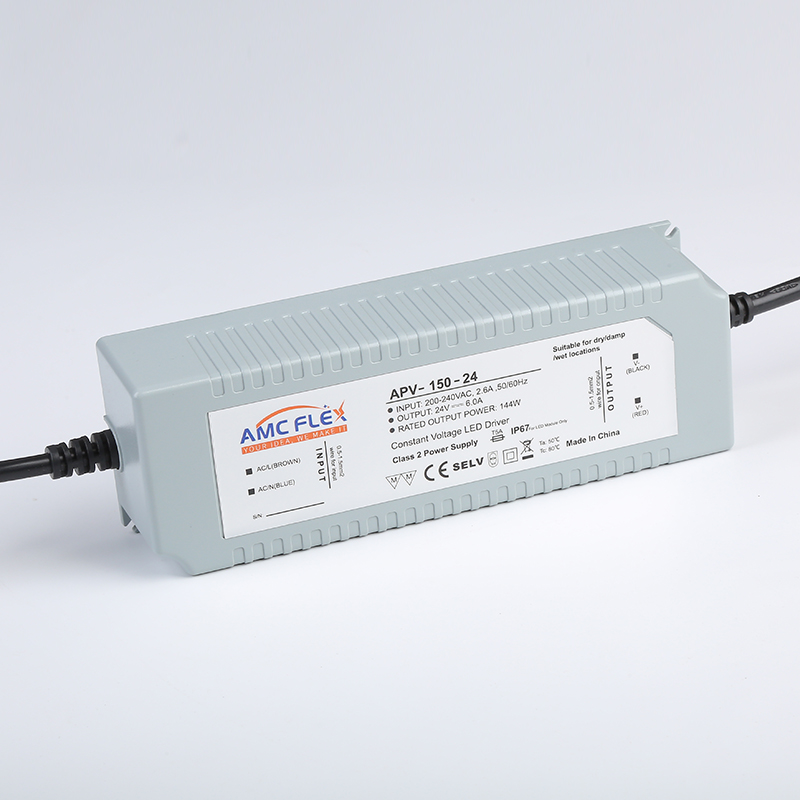

150W 24V 6.25A Plastic Waterproof LED Power Supply

FOB Price:	15.00 - 17.00 USD/Piece
Supply Ability:	20,000 Piece(s) per Month
Shipping:	shipping by sea
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	1.2kg; 15pcs./ctn; ctn weight and dimensions: 18.5kg; 45.5 x 29.5 x 19cm

Quick Details

Output Voltage: 24V
Input Voltage: 220V
Output Type: Single
Output Power: 101 - 200W
Brand Name: AMCFLEX
Output Current: 6.25A
Output Frequency: 47-63
Model Number: APV-150-24
Material: Plastic Housing
Waterproof Level: IP67
Output voltage: 24V/27V/36V/48V/54V
warranty: 5 years
application: used for led strips, modules, tapes,led bars
color: grey

Specifications

150W 24V 625A Plastic Waterproof LED Power Supply
Model: APV-150-24

Constant Voltage LED Power Supply.

Input Voltage: 200-240VAC 47-63Hz

Output Voltage: 24V

Output Current:6.25A

Output Rated Power: 150W max

Inrush Current: 70 Amps max. at 230VAC/50Hz,full load

No Load Power Consumption: 0.5W

Protections: Short Circuit /over Current /over Voltage

/over Temperature protection

Short Circuit Protection (SCP) Yes,hiccup mode, auto-recovery

over Voltage Protection (OVP): Yes,hiccup mode, auto-recovery

over Current Protection (OCP): Yes,hiccup mode, auto-recovery

Working TEMP.: -30°C-70°C

Working Humidity: 10%-90% RH non-condensing

Storage TEMP.,Humidity and altitude: -40℃ ~+70°C ambient

Temperature and a 5% to 95% relative humidity range throughout

An Altitude range of -60 meters to +5000 meters AMSL.

Certificates and approvals: CE CB SELV ROHS

MTBF: 100Khours minimum at full load at 25℃ ambient

Dimension: 205 x 70 x 45mm (L x W x H)

Packing: 1.2kg; 15pcs./ctn; ctn weight and dimensions: 18.5kg;

45.5 X 29.5 x 19cm

0.63Kg;20pcs/13.6Kg/0.55CUFT

Quality Guarantee:

Premium range of power supplies for LED Strip lights

Quality Insurance: Five times function test

1. Function test: check if there is any dry/empty welding or missed components

2. Hi-pot test: 3KVac/ 0.8S

3. Function test:100% Burn-in test 1-4hours depends On output power/

4. Function test:100% re-test after burn-in test

5. QC: finished product sampling, AQL 0.65

Used for LED strips, LED modules, light box, illuminated signs, linear lighting projects, LED wall washer lights, LED floodlights, fishing lights.

Features:
IP67 Waterproof LED Power Supplies
IP67 waterproof suitable for use in damp locations and outdoors high efficiency long life and reliability.
Good-quality
Plastic housing sealed with silicon gel is easy for heat dissipation and ensure stability.
Large Application
Suitable for the LED Light, LED strip lights, Street Light, Fog-proof Light, Ceiling Lights, Frack Lights, Spotlight, Billboard, kitchen cabinet lights and LED landscape transformer and so on.

Model NO	Input Voltage	Output Voltage	Output current	Output Power	Efficiency	Dimension/mm
APV-150-24	200-240Vac	24V	6.25A	0-150W	92%	203x70x45
APV-150-36	200-240Vac	36V	4.16A	0-150W	92%	203x70x45
APV-150-48	200-240Vac	48V	3.125A	0-150W	93%	203x70x45
