Scissor Goods Lift, Loading Dock Lift, Cargo Lift, Cargo Lift Table, Stationary Scissor Lift, Cargo Lifting Equipment

FOB Price:	3000.00 - 5000.00 USD/Unit
Supply Ability:	100 Unit(s) per Month
Shipping:	Delivery Time 20days
Payment Terms:	L/C

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	wooden case

Quick Details

Certification: CE
Max. Lifting Height: 3400MM
Rated Loading Capacity: 10000
Lift Drive / Actuation: Hydraulic
Brand Name: WIZ
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 3years
Weight: 3ton
Overall Dimensions: 3300mm*2500mm
Table Size: customized
Min. Lifting Height: customized
Power: customized
Lift Mechanism: Lift Chain
Model Number: WIZ
Color: customized

Specifications

Scissor goods lift
Scissor goods lift,loading dock lift,cargo lift,cargo lift table,stationary scissor lift, cargo lifting equipment

Scissor Goods Lift Loading Dock Lift Cargo Lift Cargo Lift Table Stationary Scissor Lift Cargo Lifting Equipment

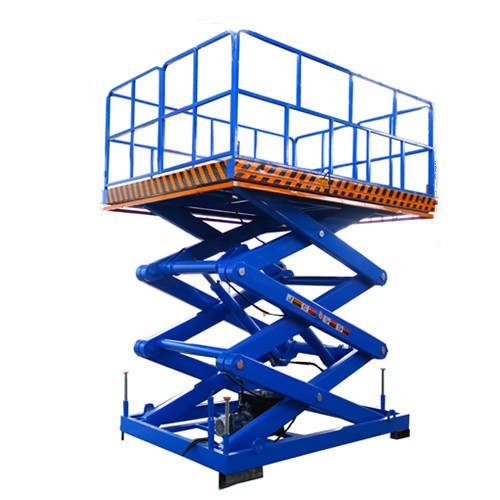

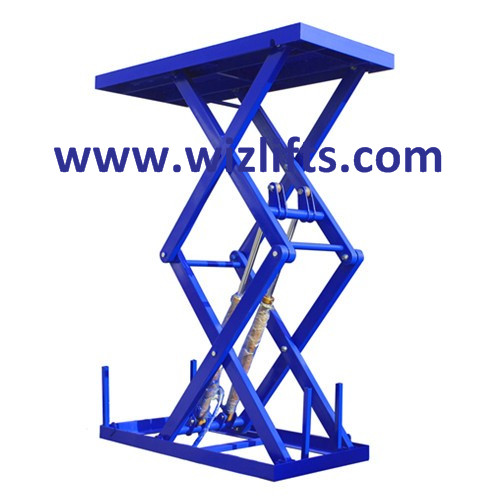

A scissor lift table is a mechanical lifting platform that can be raised and lowered to any desired height. Main components are the top platform, the lower frame, the scissor system activated by one or more cylinders. Lift tables make your work processes more efficient by removing the need for physical lifting. Also, WIZ Lift customized lift tables have a large variety of options and can be customized for almost any need.

Main models

Model	Load capacity	LIfting Height	Platform size	power	Approx weight
FSL1.5-3.4	1500kg	3400mm	2000x1500mm	3.0kw	1700kg
FSL2-1	2000kg	1000mm	1300x800mm	3.0kw	750kg
FSL3-3	3000kg	3000mm	2500x5000mm	4.0kw	5000kg
FSL4-1.8	4000kg	1800mm	7500x3000mm	5.5kw	4500kg
FSL10-2.5	10000kg	2500mm	3300x2500mm	5.5kw	4800kg
Note: Load capacity, lifting height, platform size, voltage all can be custom made according to customer requirement

Customized your Scissor lift table solutions

There are three basic details that will help you get a scissor lift table solutions

the lifting height
the top platform size
the load capacity

Once we get the above three important parameters, WIZ lift will provide you a best suitable lifting solutions.

Application
SciSsor Lift tables are often used for goods and material handling in manufacturing, retail, packaging, logistics, production lines, construction and food-industry.
