Hydraulic Cissor Car Lift Support Customized

FOB Price:	1000.00 - 3000.00 USD/Set
Supply Ability:	100 Unit(s) per Month
Shipping:	Delivery Time 20days
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	wooden case

Quick Details

Certification: CE
Max. Lifting Height: 3400mm
Rated Loading Capacity: 10000kg
Lift Drive / Actuation: Hydraulic
Brand Name: WIZ
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 3years
Weight: 3ton
Overall Dimensions: 3300mm*2500mm
Table Size: customized
Min. Lifting Height: customized
Power: customized
Lift Mechanism: Scissor Lift
Model Number: WIZ
Color: customized

Specifications

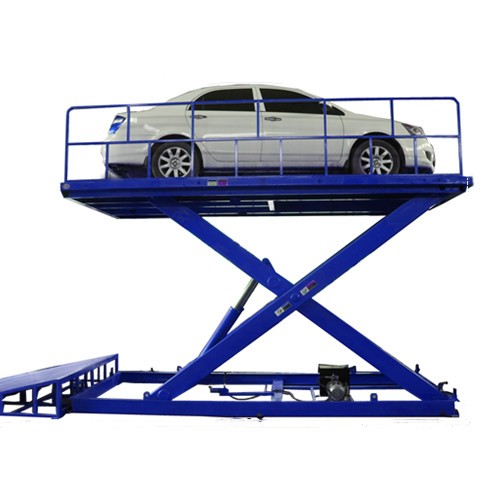

Scissor car lift

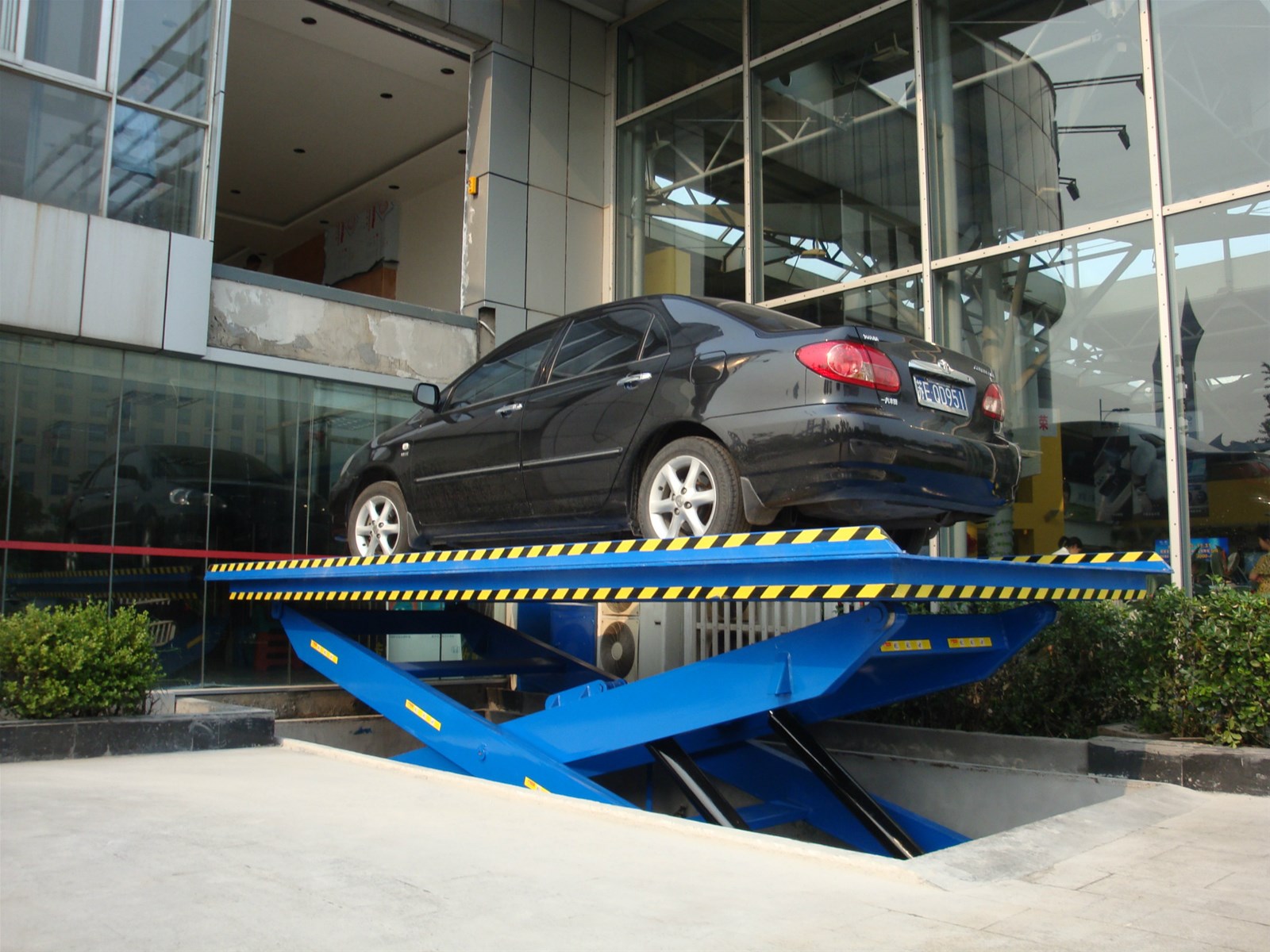

Scissor Car Lift is specially designed to transfer cars from one floor to other floors. Our car lift now is pretty welcomed by automobile 4S stores, car showrooms, garages and some other sites. The control panels of car lift are installed at the designated floors, and could be also installed on the lift platform, user-friendly and easy-operating.

Main models

Model	Load capacity	LIfting height	Platform size	power	Approx weight
FSL1.5-3.4	1500kg	3400mm	2000x1500mm	3.0kw	1700kg
FSL2-1	2000kg	1000mm	1300x800mm	3.0kw	750kg
FSL3-3	3000kg	3000mm	2500x5000mm	4.0kw	5000kg
FSL4-1.8	4000kg	1800mm	7500x3000mm	5.5kw	4500kg
FSL10-2.5	10000kg	2500mm	3300x2500mm	5.5kw	4800kg
Note: Load capacity, lifting height, platform size, voltage all can be custom made according to customer requirement

Details of main components

	COntrol box with up and down buttons, manual and Automatic switch,Emergency button and fault buzzer.
this control button could be fixed on upper floor or on platform.They canControl the lift up, DOWN, STOP at wills.
	the hydraulic pump station has incredible features: Small, compact structure, Lightweight, highly efficient with more longer life span
Free spare parts: seal ring, oil seal, relays and other parts
	Anti-skid surface with checkered plate surface.

Customized your Scissor lift table solutions

There are three basic details that will help you get a scissor lift table solutions

the lifting height
the top platform size
the load capacity

Once we get the above three important parameters, WIZ lift will provide you a best suitable lifting solutions.

Application
the scissor car lift is widely used in automobile 4S stores, car showrooms, garages and some other sites.
