Industry Stainless Steel Thickness Automatic Car Parts Ultrasonic Vibrator Cleaner 50L

FOB Price:	1800.00 - 2500.00 USD/Pack
Supply Ability:	10 Pack(s) per Week
Shipping:	Shenzhen
Payment Terms:	L/C, T/T, Other, PayPal

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	plastic film with cartons in wooden case.

Quick Details

Machine Type: Industrial Ultrasonic Cleaner
Material: Metal / Coil
Cleaning Type: Industrial Ultrasonic Cleaner
Certification: CB,CE,CSA,ETL,GS,RoHS,UL,UR
Brand Name: JYD/OEM
Condition: New
After-sales Service Provided: No overseas service provided
Dimension(L*W*H): 550*400*400mm (customizable)
Power(W): 1200W
Industry Used: Food Processing
Cleaning Process: Cold Water Cleaning
Use: Degreasing
Fuel: Diesel
Feature: Rust / Corrosion Inhibitor
Model Number: JYD-1024SG
Warranty of core components: 1 Year
Material: Metal / Coil, SUS 304L / SUS 316L
Capacity: 96L
Heating power:: 3000W
Tank Size:: 600x400x400mm
Core Components:: PLC, Engine
Place of Origin:: Guangdong, China
Frequency: 17/20/25/33/40/68/80/100/132/170/200Khz
Max temperature:: 20-100Celsius
Application: car parts ultrasonic cleaning

Specifications

the following example is for you reference.

1.Brief Introduction:

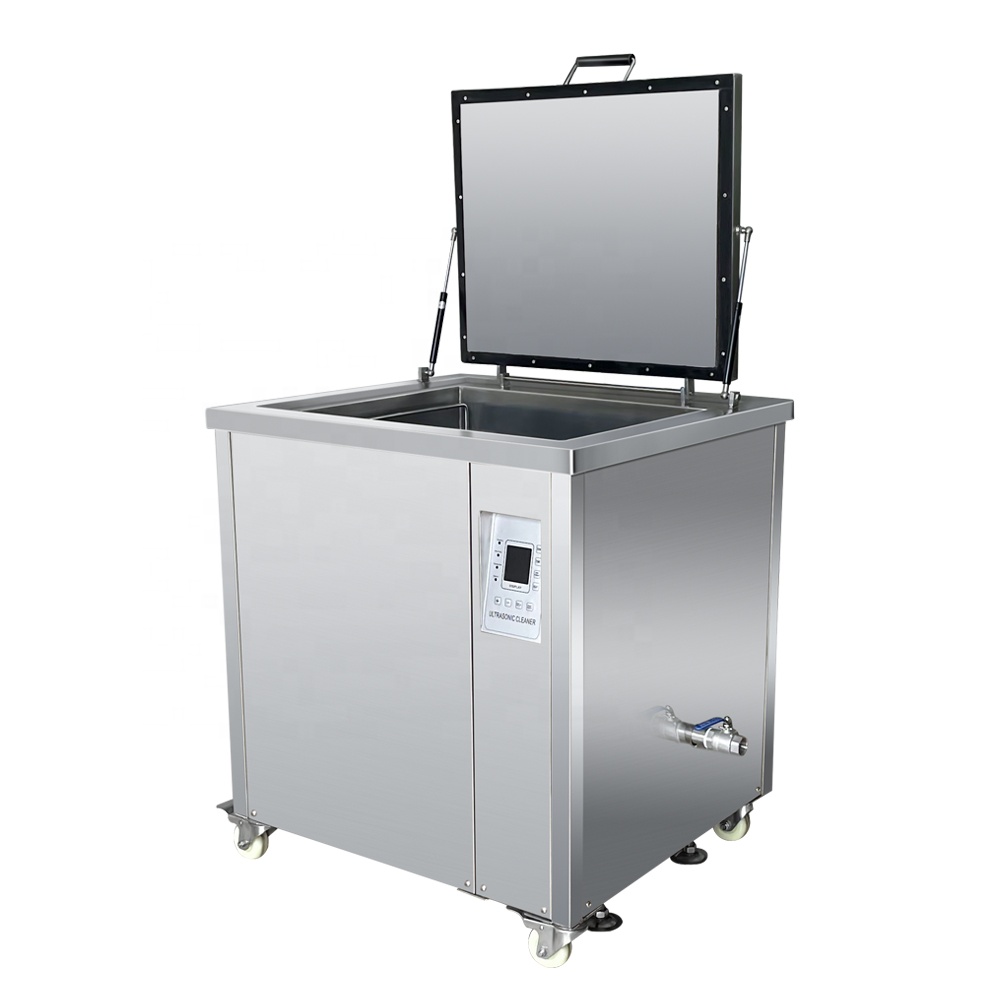

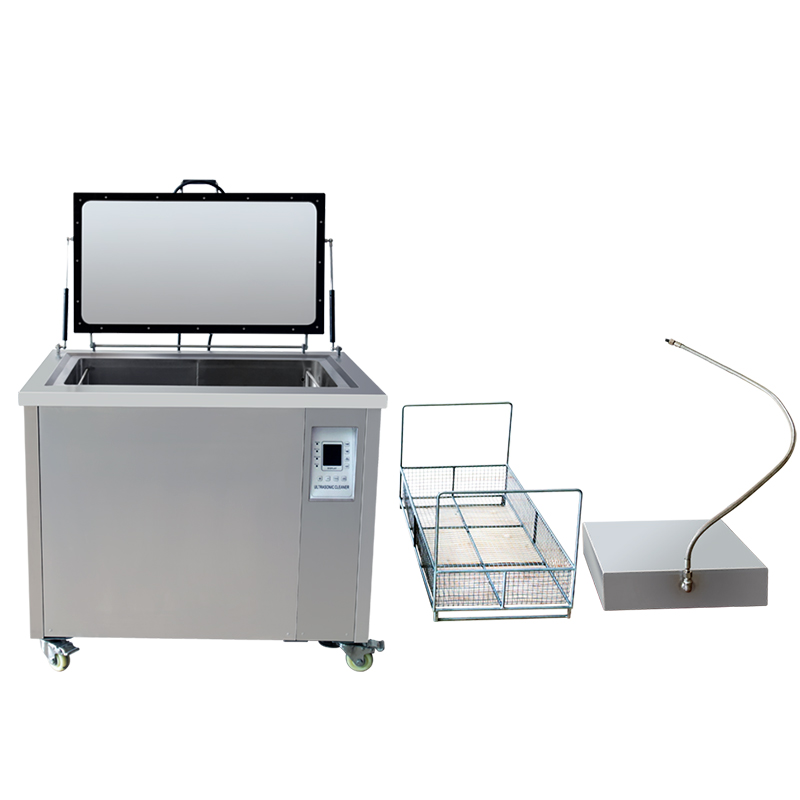

the single tank(1-piece) ultrasonic cleaner can be set up to clean parts as well as a multiple tank at far less cost. this cleaner features a fully integrated ultrasonic generator and cleaning tank in a single enclosure. this unit fits perfectly into a busy power sports or automotive repair shop needing a larger, tougher system for stripping oil, carbon and corrosion from small engine cases and other parts, but don’t have the room for a full-size unit. It’s used primarily for cleaning small parts, such as coating parts, clock and watch parts, mechanical and hardware parts, spinneret filtration assemblies, semiconductor wafers, optical lenses, spectacle frames, jewelries, glassware and many others.

Industry Stainless Steel Thickness Automatic Car Parts Ultrasonic Vibrator Cleaner 50L

2.Techincal parameters:

Name	Industrial ultrasonic single tank cleaner
Frequency	17/20/25/33/40/68/80/100/132/170/200Khz.(customizable)
Max Temperature	20-100℃
Material	SUS304 stainless steel, thickness 2.0-3.0mm or SUS316L, thickness 2.0-3.0mm
Voltage	AC 220V/110V±10%(50/60KHz)

Model	Capacity(L)	Ultrasonic Power	Heating Power	Tank Size (Customizable)
JYD-1012SG	36	600W	1500W	500300250mm
JYD-1018SG	61	900W	2000W	500350350mm
JYD-1024SG	88	1200W	3000W	550400400mm
JYD-1030SG	108	1500W	3000W	650450400mm
JYD-1036SG	147	1800W	6000W	650500450mm
JYD-1048SG	175	2400W	6000W	700550500mm
JYD-1060SG	240	3000W	9000W	800600500mm
JYD-1072SG	300	3600W	9000W	1000600500mm

3.Performance features:

1.Automatic frequency tracking generator MCU-SWEEP drive, modular design of the whole machine, easy to operation, convenience to maintenance

2.Digital controlled Dispaly, one-button to start degassing, can quick remove the air in water,and have strong ultrasonic effect,

3.20-100 ℃ heating temperature adjustable, 0-100% ultrasonic power adjustable, cleaning time can be adjusted in minutes or hours to meet the cleaning requirements of different products, constant power output, ultrasonic effect homogeneous and strong,

4.High Q ultrasonic transducers, high strength glue bonding,have higher ultrasonic transfer efficiency and longer service life, the tank body is welded by SUS304 2.0-2.5mm, the vibration surface is plated with environmental protection chromium treatment, when the machine has no liquid level protection, the ultrasonic work will have abnormal alarm function

5.past 2500V high voltage test, strict production process and aging process,have mute cover/ 304 stainless steel washing basket, etc.and certificated by CE/ROSH/FCC

Application:

Golf club: Golf clubs,irons,grips;
Automotive: engine block,engine parts,fuel injector, carburetor,spark plug and other target car parts.
Others: printing, marine, medical, pharmaceutical, electroplating, disk drive components, engineering and weapons industries.
