High Speed 3 Axis Wood CNC Router Woodworking Engraving Cutter
| FOB Price: | 4400.00 - 4800.00 USD/Set |
|---|
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- After-sales Service Provided: Overseas third-party support available
- Warranty: 1 year
- Certification: CE
- Brand Name: UnionTech
- Condition: New
Specifications
1500 * 1200mm the standard working size, equipped with 200mm rotary device, is professionally used for processing cylindrical products, such as wooden table legs,railing etc. Which do not need to move, saving labor and time. And HSD spindle is the highest quality and most convenient for process.
| Features: |
- Imported original ABBA 20 square guide rails, longer life and smooth moving.

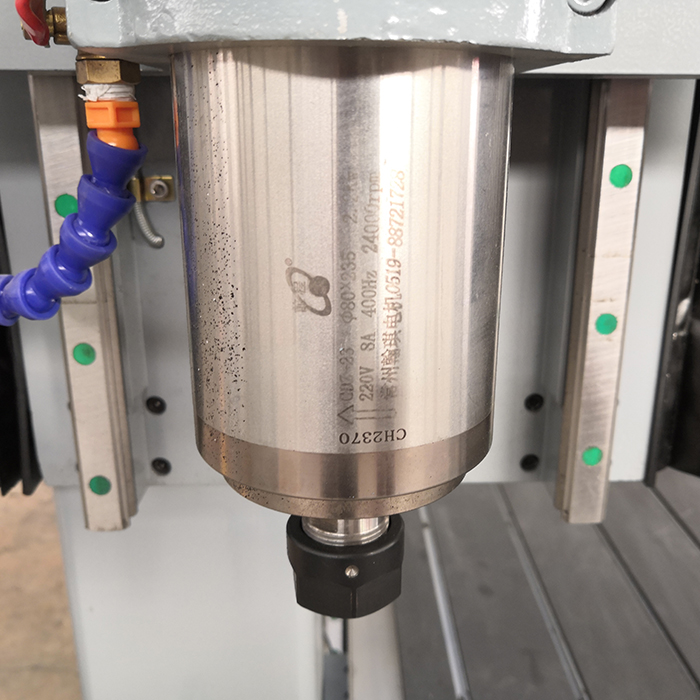

- Chinese best water cooling spindle with 24000rpm.
Helical rack gear transmission,which can ensure faster speed,higher efficiency,stronger
Power,longer lifetime,and it makes the machine more stable.
- with DSP control system, It can support offline operation. Easy to operate.
Standard configured with stepper motor FL118 and YAKO 2811 big driver,very powerful.
for option,we can change toJapan YASKAWA servo or TaiWan DELTA servo motors and drivers.
| Parameters: |
Model |
UT-1512 |
Working area |
1500*1200*200mm (can be customized) |
Working Voltage |
380V, 3PHASE, 50HZ (can be customized) |
Control System |
Ncstudio control system |
Control box |
Computer control box |
Spindle |
3KW air cooling spindle |
Spindle speed |
0-18000RPM |
Motor and Driver |
Leadshine driver and stepper motor |
Inverter |
3.7kw Fuling inverter |
Structure |
Heavy duty thicker and bigger welded frame and gantry |
Table surface |
T-slot and Vacuum Working Table with 4 zones |
Gantry structure |
Thicker steel tube, Gantry Moving |
Vacuum pump |
5.5kw water cooling vacuum pump (380V, 3PHASE, 50HZ) |
Calibration |
Manual tool sensor calibration |
Transmission |
X,Y Axis: Helical rack pinion, Taiwan Hiwin/PMI/CSK 20# Rail Linear Bearing, Z Axis: Taiwan TBI Ball Screw |
Command language |
G Code |
Software |
ArtCam, Ucancam,Type3 |
Optional |
Servo motor, Rotary device: 200mm diameter* 2000mm length |
