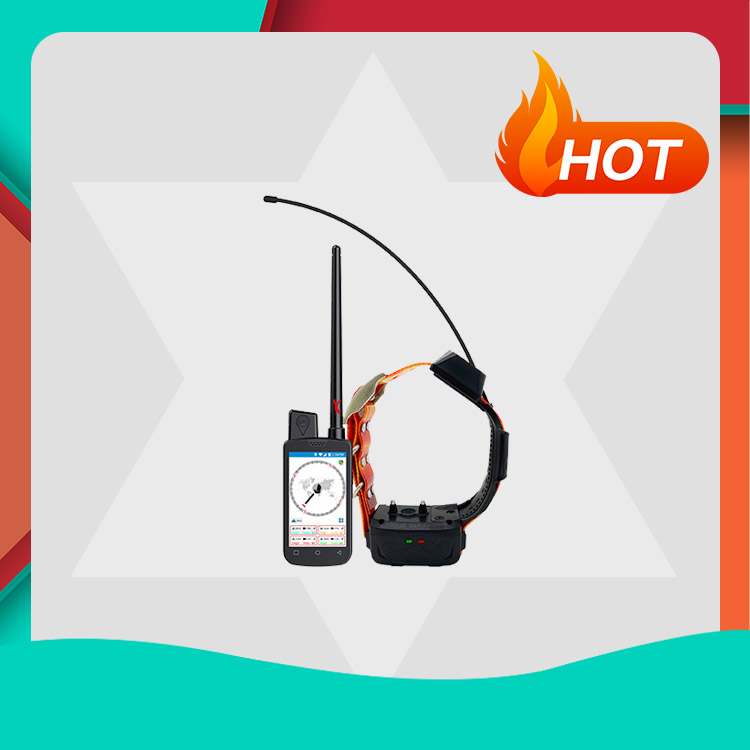

Hot in 2021 GPS Hound Tracker Support OEM/ODM the Best GPS Dog Tracking Collar

FOB Price:	480.00 - 580.00 USD/Set
Supply Ability:	50,000 Set(s) per Month
Shipping:	shenzhen
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	38x28x7cm

Quick Details

Type: Pet Collars & Leashes
Brand Name: Ruiyi
Feature: Stocked
Application: Dogs
Collar & Leash Type: gps tracking dog collar
Type: GPS
Model Number: RYC-01
GSM/GPRS module: MTK
GPS module: UBLOX
Positioning accuracy: 1-10 meters
Battery: 7000mAH
IP rating: IP68

Specifications

Ruiyi GPS Hound Tracker is an intelligent electronic product specially designed for hunting enthusiasts. through GPS/BDS, WiFi, base station multiple positioning, it is easy to use Google Maps, and it can receive positioning normally through VHF wireless technology in deep mountains without internet. Signal to realize the interaction between human and hound

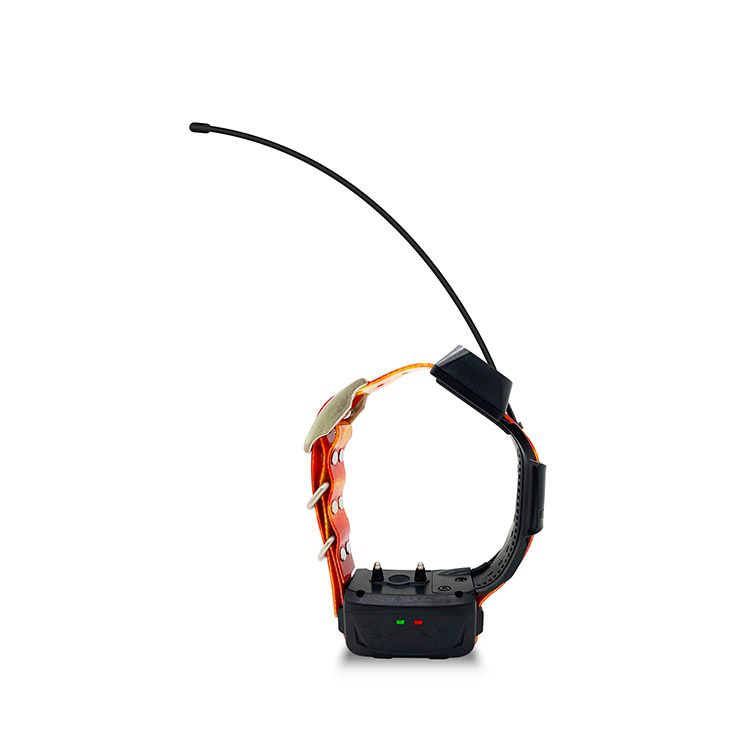

Product Name: GPS Hound Tracker / GPS tracking dog collar

Product model: RYC-01

Features:

1. the GPS tracking dog collar used in conjunction with GPS dog tracking device.

2. GPS/BDS positioning system for precise positioning.

3. VHF wireless technology, normally send the position information of this collar to the handheld without network.

4. Support network communication, upload location information to the server regularly in the networked state for viewing by the handheld, and the use of VHF wireless technology can ensure that this GPS tracking dog collar is not lost.

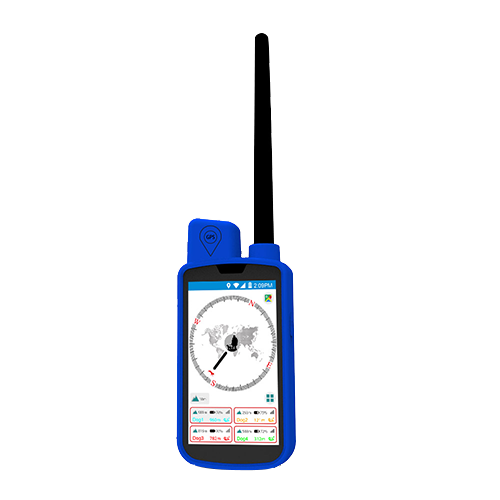

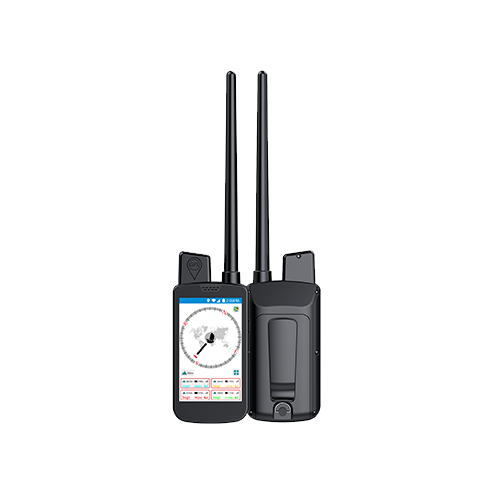

5. the high-definition map of the handheld device displays the location of the collar in real time.

6. the map supports offline maps, and the handheld device can normally use the map to view the location of this GPS tracking dog collar without the network.

7. Dog training safety (electrical shock stimulation, vibration stimulation).

8. Long standby time.

9. Fast charging.

10. IP68 waterproof and dustproof.

Hot in 2021 GPS hound tracker Support OEMODM the best GPS dog tracking collar

Technical Parameters:

GSM/GPRS module: MTK

GPS module: UBLOX

VHF wireless module: 155-169 MHz

Electrical stimulation module: multi-mode optional

GPRS frequency: 850/900/1800/1900Mhz(4Band)

Working current/voltage: GPRS<90mA/3.8V VHF<1200mAH

GPS antenna: built-in (external to VHF antenna)

Positioning accuracy: 1-10 meters

GPS cold start positioning time: 36S

GPS hot start: 1S

Standby current: <60mAH

GPS sensitivity: tracking: -162dBm capture: -160dBm

Battery: 7000mAH

Working temperature: -20℃~60℃

Storage temperature: -35℃~70℃

IP rating: IP68

Size: Length 85MM*Width 45MM*Thickness 50MM

SIM card: Micro SIM card

Battery working time: 28 hours in full-speed positioning mode, 42 hours in interval positioning mode, 120 hours in standby mode

Data sending and receiving: GPRS/VHF wireless transmission module GPS data storage: cloud server background/computer storage

Interface: USB (magnetic type)

Built-in storage: 32M

Working charging voltage: 5V DC

Battery type: 18650 lithium battery*2

Button: TPU button

Charger type: 1A current fast charge type

Sensor type: G-SENSOR
