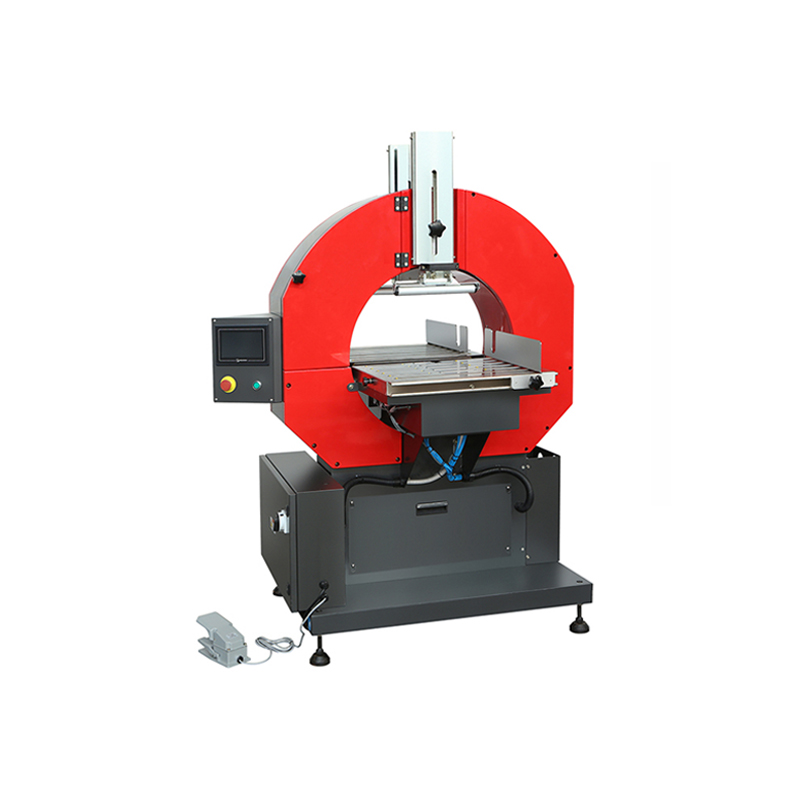

Aluminum Profile Sofa Door Windows Steel Pipe Tyre Panel Orbital Wrapper Horizontal Stretch Warpping Machine

FOB Price:	4800.00 - 5800.00 USD/Set
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China

Quick Details

Type: Wrapping Machine
Brand Name: AUSIM
Packaging Material: Plastic,
Packaging Type: Film,
Application: Machinery & Hardware
Condition: New
After-sales Service Provided: Overseas service center available
Weight: 420
Model Number: SCR-60AC
Power: 2.5KW
Voltage: 110/220V
Driven Type: Electric
Automatic Grade: Automatic

Specifications

the following example is for you reference.
Aluminum profile sofa door windows steel pipe tyre panel orbital wrapper horizontal stretch warpping machine

1.Brief Introduction:

* Indicator alarms automatically when trouble occurs.Trouble can be shown

* Photoelectric sensor is adopted for setting packing position

* Material tension could be adjusted automatically

* THe turning ring is controlled by frequency converter. Overlap rate could be adjusted according to the requirement

* Pneumatic grab,attach and cut the film tails automatically

* Slewing bearing ring system

2.Techincal parameters:

Model	SCR-60AC
Power	220V,1P,50/60HZ
Air consumption	0.6-0.8Mpa
Film cut/Clamp system	by pneumatic
Top presser	by pneumatic
Inner coil diameter	600mm
Packing dimension	√W2+H2600mm
Packing length	Unlimited
Conveying method	Belt/roller

3.Performance features:

1.Special conveying device is easy for loading&conveying the package strengthens the transfer capacity.

2.Indicator alarms automatically when trouble occurs.Trouble can be shown.

3.Photoelectric sensor is adopted for setting packing position.

4.Material tension could be adjusted automatically.

5.the turning ring is controlled by frequency converter. Overlap rate could be adjusted according to the requirement.

6.Omron PLC control system.

7.Pneumatic grab,attach and cut the film tails automatically.

8.Film packing layers,times adjustable.(cycle pause capability).

9.Manually adjustable infeed and outfeed side guides.

10.Infeed and outfeed product photocells detection during running process automatically.
