Home >Products Catalog > shrink wrapper > Shrink Packaging Machine Heat Tunnel Packing Machine Shrinking Sealing Machine Shrink Wrapping Machinery for POF PVC

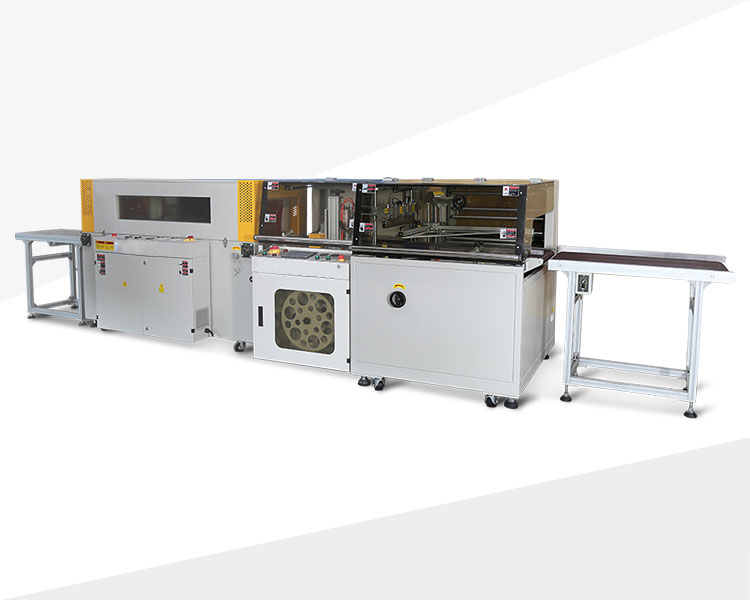

Shrink Packaging Machine Heat Tunnel Packing Machine Shrinking Sealing Machine Shrink Wrapping Machinery for POF PVC

FOB Price:	4200.00 - 5200.00 USD/Set
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Type: Wrapping Machine
Brand Name: AUSIM
Packaging Material: Plastic,
Packaging Type: Film,
Application: Machinery & Hardware
Condition: New
After-sales Service Provided: Overseas service center available
Weight: 380
Model Number: SFQ-50C
Power: 1.6KW
Voltage: 220V 50HZ 1 P
Driven Type: Electric
Automatic Grade: Automatic

Specifications

the following example is for you reference.

Shrink Packaging Machine Heat Tunnel Packing Machine Shrinking Sealing machine Shrink Wrapping machinery for POF PVC
1.Brief Introduction:

* the sealing and cutting tool holder is driven by a four-column vertical system, which can overcome the problems of wrinkles and the sealing line not in the middle of the product in the traditional L-shaped sealing machine

* the sealing height can be adjusted to ensure that the sealing line is in the middle position. Choosing a suitable packaging height can reduce the sealing knife stroke time and reduce production costs

* It adopts two sets of horizontal and vertical photoelectric, which is convenient to switch, and can easily complete packaging for thin and small products

* Automatic program control, simple and convenient operation, with safety protection and alarm functions;

Fully automatic L-shaped vertical up and down sealing and cutting shrink packaging machine is especially suitable for large products

2.Techincal parameters:

Model	as-5545D	as-5030LW
Packing speed	10-35pcs/min	20-85pcs/min
Packing size	W+H≤430mm,L+H≤550m M(H≤220mm)	W≤400mm*H≤250mm
Cutter size/Tunnel size	L635*W510mm	L1500W500H300mm
Power	220V,50/60HZ,1Phase,3.5kw	220V/380V,50/60HZ,1Phase,16kw
Air compressing	5.5-8.5kg/cm3	/
Table height	850±30mm	850±30mm
Machine dimension	L2040W1500H1370mm	L1850W1095H1325mm
Machine weight	700kg	650kg

3.Performance features:

Vertical cutting system,prevent crumples.

Sealing height is adjustble to ensure the sealing line is in the middle of the product height.

Adopt horizontal and vertical sensors.Easy to swithch,fit for thin or small products.

PLC control system,easy to operate,safety and warning function.

Particularly suitable for high and big products.
