Wuxi Tangcheng Machinery Co., Ltd.
China Manufacturer with main products: Stitcher Machine, Stitching Machine, Folder Gluer Stitcher Machine, Folder Gluing Stitching Machine |
Inline Flexo Folder Gluer Stitcher
| FOB Price: | 300000.00 - 346000.00 USD/Set |
|---|---|
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | Wooden case packaging |
Quick Details
- Type: Gluing Machine
- Packaging Material: Wood
- Packaging Type: Case
- Application: other packaging machine
- Condition: New
- Type: Automatic
- After-sales Service Provided: Engineers available to service machinery overseas
- Weight: 25TONS
- Dimension(L*W*H): 17000 x4100 x 2900mm
- Model Number: X-300
- Power: 80KW
- Voltage: 380V 50HZ
- Driven Type: Electric
- Automatic Grade: Automatic
Specifications

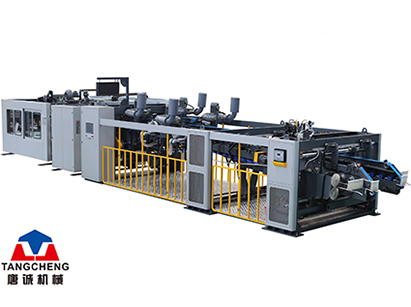

Inline Flexo Folder Gluer Stitcher
X-300-1224-1228
AUtomatic corrugatedCartonBox folder gluer Sticher inline flexo printer slotterMainly used in food corrugated carton box, fruit carton box,Industry carton box and other various corrugated packaging application.It'swith high speedFolding gluing StitchingProduction,PLC program system,Intelligent controlling and oRder memory system application.
Technical data:
Model |
X300-1224 |
X300-1228 |
Max gluing speed |
300pcs/min |
280pcs/min |
Max feeding size |
1200*2400mm |
1200*2800mm |
Min gluing feeding size |
350*740mm |
350*740mm |
Min stitching feeding size |
350*800mm |
350*800mm |
Available corrugated board |
3ply, 5ply, 7ply |
3ply, 5ply, 7ply |
Max stitching speed |
120pcs/min (3 stitching) |
120pcs/min (3 stitching) |
Max stitching head speed |
1200 Stitches/min |
1200 Stitches/min |
STitchingDistance |
30-80mm |
30-80mm |
Slanting of the stitch |
45 |
45 |
Total power |
96kw |
96kw |
Voltage |
380V, 50HZ, 3phase |
380V, 50HZ, 3phase |
Weight |
25tons |
26tons |
Dimension |
15600*4200*2900mm |
15600*4600*2900mm |
