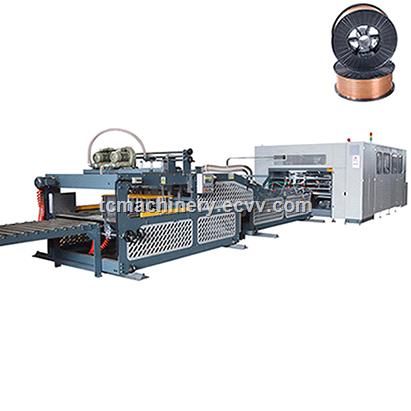

Full Automatic Carton Paper Board Gluing Stitching Machine Corrugated Box Stitcher

FOB Price:	170000.00 - 180000.00 USD/Set
Shipping:	Sea shipment delivery
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	Wooden case packaging

Quick Details

Type: Other
Brand Name: No
Packaging Material: Wood
Packaging Type: Case
Application: other packaging machine
Condition: New
After-sales Service Provided: Engineers available to service machinery overseas
Dimension(L*W*H): 14400 x 3800 x 2000mm
Weight: 15ton
Model Number: TC-2600-2800
Power: 50KW
Voltage: 380V 50HZ
Driven Type: Electric
Automatic Grade: Automatic

Specifications

Feactures:

1. AutomaticCorrugated boxStitcherand corrugated carton box folding stitching machine are mainly used in food carton box, fruit carton box and industry carton box.

2. the stitching head life is one hundred million stitching times. PUnChing head life is fifty million PUnChing times.

3. the stitching head speed is 800 stitching times per minute

4. Automatic vacuum belt lead edge feeder.

5. the whole machine installed 8 sets of Mitsubishi servo motors.

6. PLC program system is Mitsubishi.

7. Order memory is 100 sets of sheets.

Technical Data

Model	Y-90
MaxCorrugatedSheet size	2400x850mm
Min corrugated sheet size	800x300mm
AvailableCorrugatedsheet	3 layer, 5 layer, 7 layer
Max stitching speed	100Pcs/min (3 wire stitching) 90Pcs/min (4 wire stitching) 80Pcs/min ( 5 wire stitching)
Gluing speed	100Pcs/min
Stitching head speed	800 Stitches/min
Stitching head	Fixed type
Stitching type	// // // (double), / / / (single)
Stitching wire	Width: 1.95mm (+/- 0.05mm), Thickness: 0.75mm (+/- 0.03mm)
Min sTitchingDistance	25mm
Slanting of the stitch	45
Total power	50kw
Voltage	380V, 50HZ, 3phase
Dimension	14400 x3800 x2000mm
Weight	15tons
