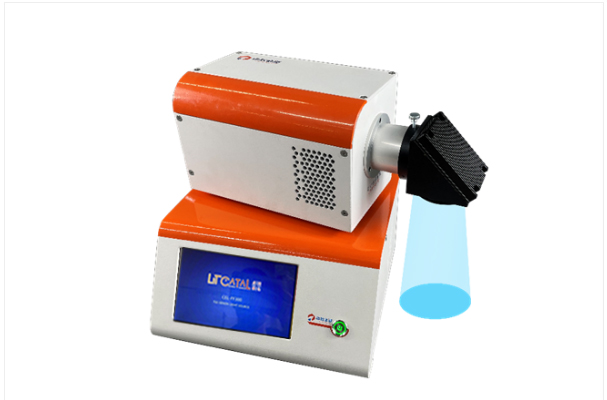

Photochemical Solarsimulator Xenon Lamp Light Source

FOB Price:	5000.00 - 10000.00 USD/Unit
Supply Ability:	100 Unit(s) per Month
Shipping:	FOB, CPT
Payment Terms:	T/T

In Stock

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Beijing in China
Packaging Details:	Carton

Quick Details

Brand Name: LiTCATAL
usage: CO2 reduction
Weight: 12kg
Temperature range: -20-80
Power supply: 300W
Model Number: CEL-PF300-T10
SpectralOutput: 300-2500 nm
Light intensity: 1-20 Sun
Bulb lifetime: 1000 Hours

Specifications

CEL-PF300-T10 xenon lamp light source system is widely used in photolysis of water, photolysis of aquatic hydrogen oxygen production, CO2 reduction, photothermal catalysis, VOCs degradation, photothermal synergy, photochemical catalysis, photoinduced synthesis, photodegradation of pollutants, water pollution treatment, biological light, optical detection, various types of simulated daylight, visible light, ultraviolet light, monochromatic light acceleration experiments and other fields.

CEL-PF300-T10 xenon lamp light source intelligent system to achieve automatic power on, off, optical power density display, calibration and automatic adjustment, custom switch times and frequency, to achieve digital monitoring, program mode can be based on the requirements of different stages of the experimental time automatically adjust the light intensity at the right time (can fully simulate the changes in daylight throughout the day). Through the expansion module can be used remotely with software or cell phone applet to achieve real-time online monitoring of the light source.

Xenon Lamp Light Source System CELPF300T10

Main parameters	CEL-PF300-T10	CEL-PF300UV-T10
Light stability	Fiber optic optical feedback achieves stable output of optical power density of xenon lamp light source; usiNg fiber optic to channel the calibrated optical output into Hamamatsu sensor, which can discard the temperature drift of Hamamatsu sensor and achieve stable long-term signal feedback and stable optical output.
Intelligent control system	the working time and working light intensity of the light source can be adjusted automatically according to the demand; the temperature monitoring of the bulb, power supply, sensor and many other places to ensure the stable operation of the light source.
Working mode	Regular use mode (without opening fiber optic optical feedback); fiber optic optical feedback mode; program intelligent mode; automatic mode, etc.
Optical power density display	Test point with optical power meter calibration (factory calibration display, working distance 15cm), to achieve real-time display of the working optical power density value; K-factor correction function, can be based on the actual measured value of real-time correction of light intensity output.
Luminous spectrum range SpectralOutput(nm) (AULTT-P4000 measurement)	300nm~2500nm (without ozone)	200nm~2500nm (with ozone)
Working spot diameter (optional continuous adjustment accessories)	60mm or more	60mm or more
UV Output, <390nm (Watts)	2.6W	6.6W
IR Output, >770nm (Watts)	28.8W	26.8W
Visible Output, 390-770nm (Lumens)	5000Lu, 18.6W, 5600K	4500Lu, 16.6W, 5050K
Input Power(Watts)	300W (Lighting voltage 30KV, working voltage 14V)
Working currentCurrent (Amps DC)	21A (10A~22A, 18A recommended)
Total luminous output power	50W (can replace the bulb quickly and safely by itself)
Lamp life Life (Hours)	>1000H, Limit 6000H (dusty and humid environment will seriously affect the life)
Light output index	Light sTability: <±1%
Temperature control system	Light source system using multi-point temperature monitoring to ensure stable output of light source.Fan speed delay automatically adjusts according to the system temperature to stabilize the light intensity output.
Optional accessories	CEL-LMP400 automatic lifting table; CEL-LB70 photochemistry experiment box CEL-NP2000-2A Intense light power meter
Optional quartz coated filter	Conventional filters: UVIRCut400 (through 400-780nm), UVIRCut420 (through 420-780nm), Cut800 (through 800nm or more), AM1.5G (300-1100nm), AREF (full spectrum reflection, 200-2500nm), VisREF (standard with visible reflector. 350nm-780nm), UVREF (ultraviolet reflective sheet, 200-400nm). Bandpass filters: QD254, QD275, QD280, QD295, QD300-800, QD313, QD320, QD325, QD330, QD334, QD350, QD355, QD360, QD365, QD370, QD375, QD380, QD400, QD405, QD420, QD435 QD420, QD435, QD450, QD475, QD500, QD520, QD550, QD578, QD600, QD630, QD650, QD670.QD700, QD730, QD765, QD850, QD940
