Beijing China Education Au-Light Co., Ltd.
China Manufacturer with main products: Xenon Lamp Light Source System, Mercury Lamp Light Source System, Photochemical Reaction Instrument, Gas Chromatography, Reaction Kettle,... |
Home
>Products Catalog > Photocatalytic Xenon Lamps > Photocatalytic Xenon Lamp Light Source CEL-PF300-T6

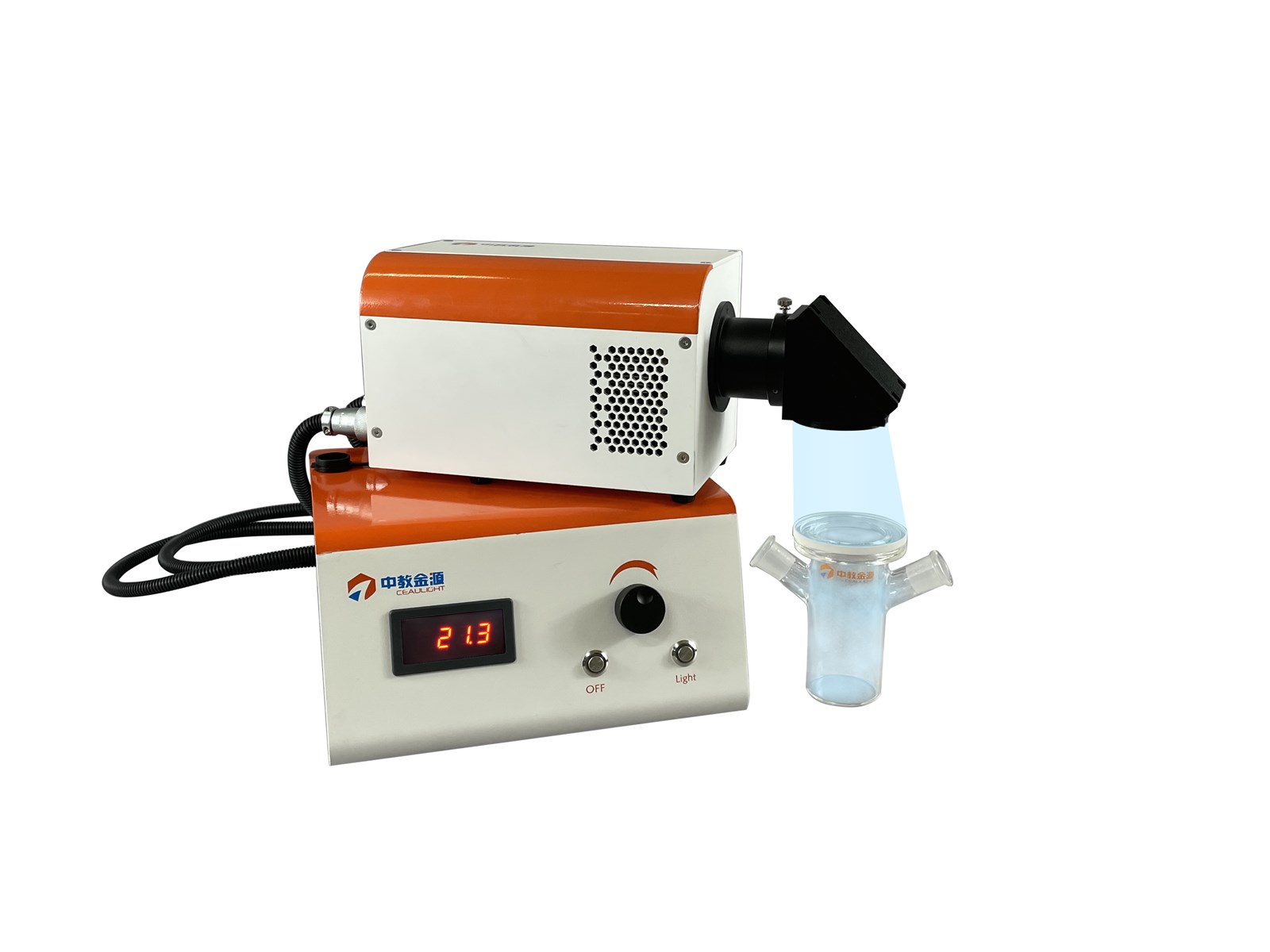

Photocatalytic Xenon Lamp Light Source CEL-PF300-T6
| FOB Price: | 5000.00 - 5500.00 USD/Unit |
|---|---|
| Supply Ability: | 1,000 Set(s) per Month |
| Shipping: | Exw, CPT |
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | CARTON |
Quick Details
- Brand Name: CEAULIGHT
- usage: photochemical
- Weight: 13kg
- Temperature range: -20-80
- Power supply: 300W
- Model Number: CEL-PF300-T6
- SpectralOutput: 300-2500 nm
- Light intensity: 1-20 Sun
- weight: 10kg
Specifications
Instrument advantages for CEL-PF300-T6
1.Newly Improved Lamp Case Structure and Cooling Module helps improving output light stablity.
2.Easy Replacement of PE300 Bulb.
3.Support all M62 M52 optical filters. Multiple filters can be mounted together.
4.Optional LMP400 lifting structure offers easy adjustment of height.
5.Optional LB70 protective case (400*400*700mm), allow two sets of lamps at same time.
Technical Parameters
CEL-PF300-T6 |
CEL-PUV300-T6 | |
Output light Power |
0~20 Sun(1Sun=1000W/m2) |
0~20 Sun |
Spectral Output(nm) |
300nm~2500nm(Ozone free) |
200nm~2500nm(ozone) |
Beam Diameter |
>=60mm |
>=60mm |
UV Output, <390nm (Watts) |
2.6W |
6.6W |
IR Output, >770nm (Watts) |
28.8W |
26.8W |
Visible Output, 390-770nm (Lumens) |
5000Lu,18.6W,5600K |
4500Lu,16.6W,5050K |
Input Power(Watts) |
300W(Igniter DC 30KV,Working DC 14V) | |
Working Current (Amps DC) |
21A(10A~22A) | |
Total Output light Power |
50W | |
Bulb Life(Hours) |
>1000H | |
Output stability |
±1% | |
Temperature Control System |
the light source system adopts multi-point temperature monitoring to ensure the stable output of the light source; the fan speed delay is automatically adjusted according to the system temperature to stabilize the light intensity output; | |
Options |
CEL-LMP400 Lifting Platform CEL-LB70 Photochemical experiment box CEL-NP2000-2 Glare Optical Power Meter | |
Optional quartz coated filter(M62) |
Available Optical Filters AREF(Full Reflective,200-2500nm) - Default included with lamp set VisREF (Reflect Visible Light, 350-780nm) UVREF (Reflect UV, 200-400nm) AM1.5G (300-1100nm) UVIRCut400 (Band Pass 400-780nm) UVIRCut420 (Band Pass 420-780nm) CUT800 (Pass above 800nm) Band Pass Filters QD254,QD275, QD280, QD295, QD300-800QD313, QD320, QD325, QD330, QD334, QD350, QD355, QD360, QD365, QD370, QD375, QD380, QD400,QD405, QD420, QD435, QD450,QD475,QD500,QD520, QD550, QD578,QD600,QD630, QD650, QD670,QD700,QD730, QD765,QD850,QD940 | |
