Beijing China Education Au-Light Co., Ltd.

Home >Products Catalog > Photocatalytic Xenon Lamps > Photocatalysis Square Shape Light Xenon Light Source CEL-PE300-4A

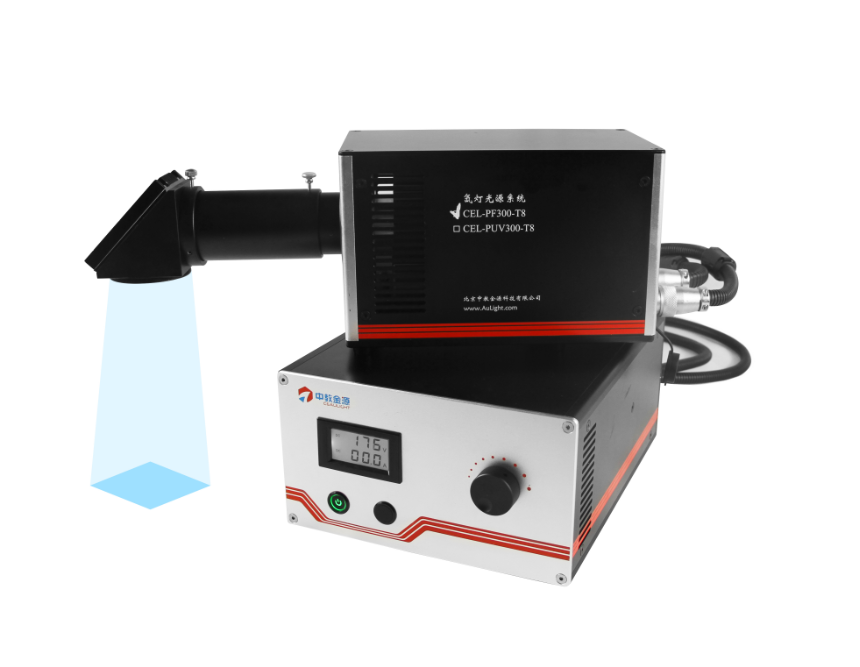

Photocatalysis Square Shape Light Xenon Light Source CEL-PE300-4A

In Stock

Inquiry Now Start Order

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Beijing in China
Packaging Details:	Carton

Quick Details

CELPE3004A Square Xenon Light Source

Nstrument advantages for CEL-PE300-4A

1.Square light output, square light can be adjusted in a wide range 20 * 20mm2-100 * 100mm2;

2.the square light spot uses the lens group to completely collect the light energy, instead of blocking to form a square spot;

3.the output power of the square spot is the same as the light intensity of the round spot, achieving 2000mw / cm2;

4.the light uniformity of the square spot is more than 10 times higher than that of the round spot;

5.Achieve precise adjustment of light spot at any distance;

6.Product design safety, multi-level safety protection such as grounding and high voltage;

7.Cooperate with NP2000 optical power meter to display the absolute irradiance in real time, and stabilize the constant optical power in real time;

Technical Parameters for CEL-PE300-4A

Items	Parameters
Output optical power	0.120Sun(102000mw/cm2)
Light bulb	PerkinElmer300W
Light shape	2020mm-100100mm
Optical path steering	It can be matched with any model of CEAuLight,can be adapted to M62, M52, round filter, and does not affect the shape of the light
Spectral range	300-2500nm
Temperature protection	Lamp temperature monitoring,over-temperature Power-off protection, real-time protection of lamp safety
Power supply	300W AC220V, <0.05%
Light stability	<±1%
