Home >Products Catalog > Wood machine > Wood Pallet Stringer Cutting off Saw Machine

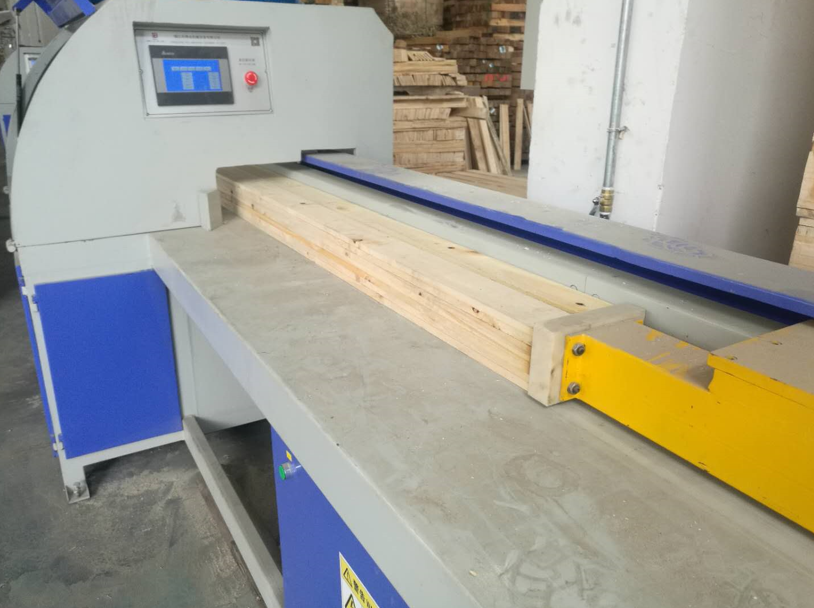

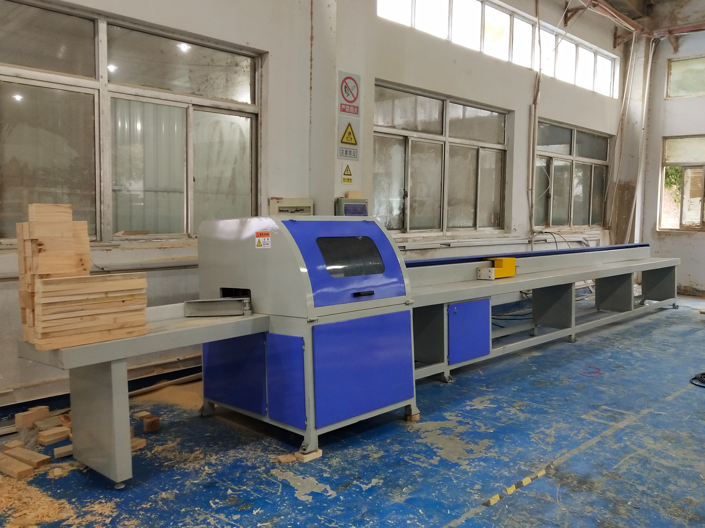

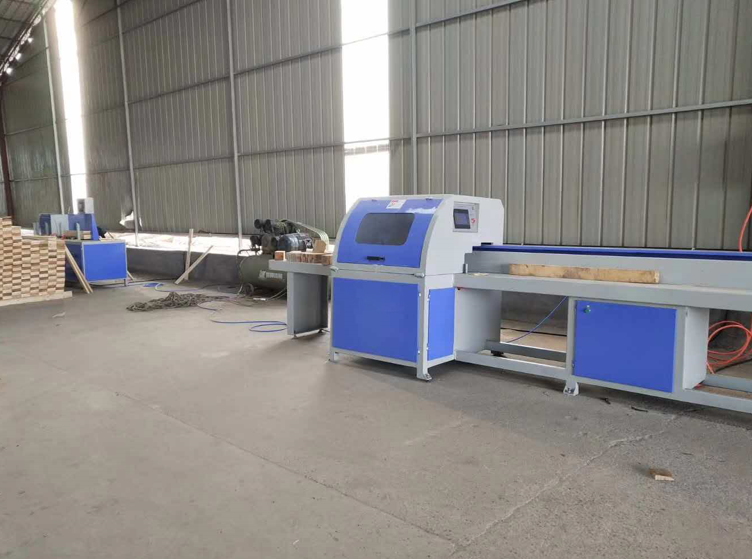

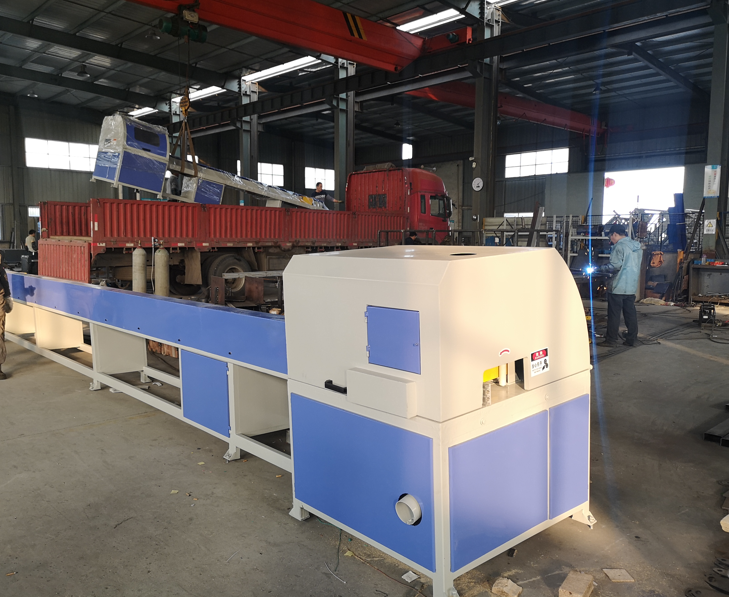

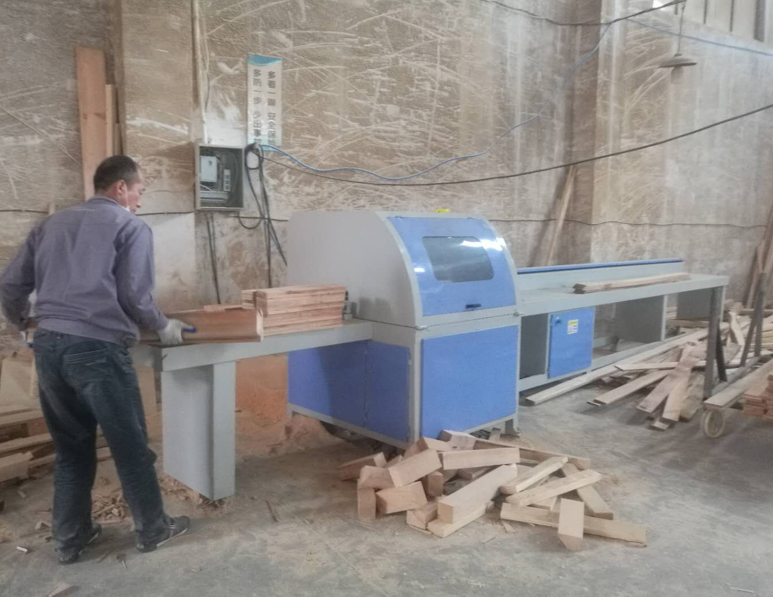

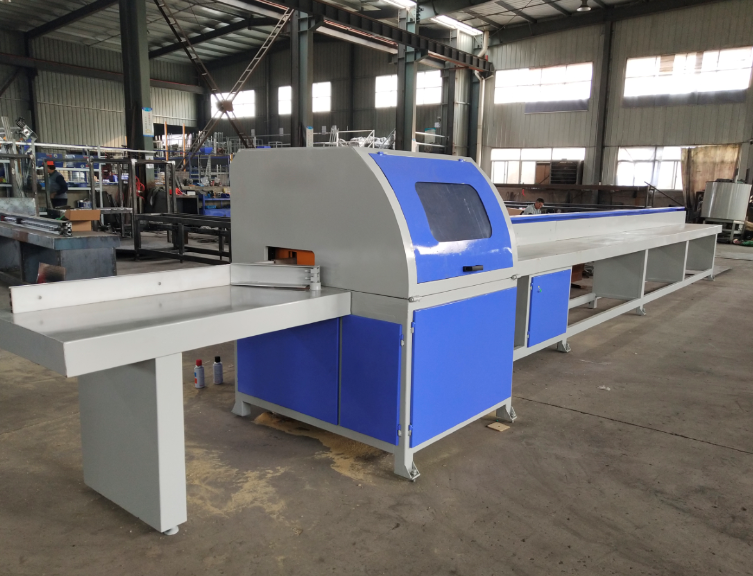

Wood Pallet Stringer Cutting off Saw Machine

FOB Price:	5000.00 - 10000.00 USD/Set
Supply Ability:	100 Set(s) per Month
Shipping:	FOB Shanghai
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	Bulk or wooden package

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Brand Name: LYCODA
Condition: New
Certification: CE
Voltage: 380V
Model Number: LYE2000
Description: Wood pallet stringer cutting off saw machine
Cutting Length: 10~120mm
Cutting Width: 30~200mm
Max. cutting cross area: 120*120/100*200mm
Feeding Speed: 5~30m/min
Cutting Speed: 40pcs/minute
Diameter.of Blade: Dia.400/450mm
Saw shaft size: Dia.30mm

Specifications

Wood pallet stringer cutting off saw machine

It is the machine which can cutting the sawdust block, wood board in different size.this machine adopt PLC control system, it can make sure cutting in right way with less fault.

Usually use for the packagIng factory or furniture factory.

1, Energy and labor saving

2, High efficiency and easy to operate

3, PLC controlSystemfor the best cutting plan

4, Can be adjusted for cutting different size sawdust block or wood board

5, the tailing after cutting can be recycling used

Model	LYE-2000	LYE-4000	LYE-6000
Cutting Length	10~120mm	10~120mm	10~120mm
Cutting Width	30~200mm	30~200mm	30~200mm
Cutting Length	2000mm	4000mm	6000mm
Max. Cutting cross area	120120/100200mm	120120/100200mm	120120/100200mm
Feeding Speed	5~30m/min	5~30m/min	5~30m/min
Cutting Speed	40pcs/minute	40pcs/minute	40pcs/minute
Dia.of Blade	Dia.400/450mm	Dia.400/450mm	Dia.400/450mm
Saw size	Dia.30mm	Dia.30mm	Dia.30mm
Spindel speed	3500rpm	3500rpm	3500rpm
Feed servo motor	750w	750w	750w
Blade motor	7.5kw	7.5kw	7.5kw
Working Pressure	5~6kg/cm2	5~6kg/cm2	5~6kg/cm2
Dust collector	Dia.100mm*2	Dia.100mm*2	Dia.100mm*2
Dimension	430012001500mm	730012001500mm	930012001500mm
Cutting Deviation	<1mm	<1mm	<1mm
