Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Output: UART_TTL (3.3V/5V electrical level), PWM, I2C(3.3V electrical level)
Theory: NDIR
Usage: Gas Sensor
Brand Name: Cubic
material: metal
Model Number: CM1107N

Specifications

Introduction

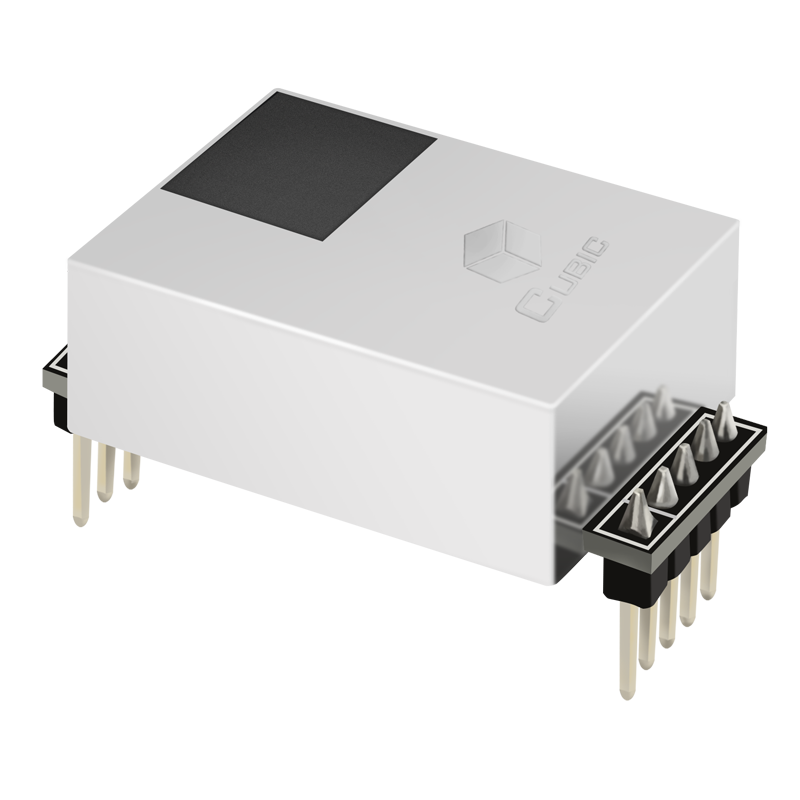

CM1107N is a dual beam (single light source, dual channel) CO2 sensor, based on non-dispersive infrared (NDIR) technology, which can detect CO2 concentration of indoor air. with higher accuracy, superior long term stability, it is widely used for ventilation system, air purifier, air conditioner, intelligent agriculture, storage and cold-chain, etc.

Features
1.NDIR technology with independent intellectual property.
2.Dual beam detection for superior stability and better accuracy.
3.High accuracy, long term stability, long life (>10years).
4.Temperature calibration within whole measurement range.
5.Signal output PWM/UART/ I2C.
6.Small size and compact structure, easy to install.

Applications
1.Air Purifier
2.Fresh Air System
3.Fresh Air System Controller
4.Household & Central Air Conditioner
5.Greenhouse

Specification

Measurement range	0~5000ppm default
Response time	≤30s
Accuracy	±(30ppm+3% of reading) @0℃~50℃, 50±10%RH
Working temperature	-10℃~50℃
Working humidity	0~95% RH(non-condensing)
Power supply	DC 4.5V-5.5V
Ripple wave	50mV
Working current	Average50mA@1s
Signal output	UART_TTL (3.3V/5V electrical level), PWM, I2C(3.3V electrical level)
Dimensions	W33H21.7D12.7(mm)(without pin)
Weight	6.3G
