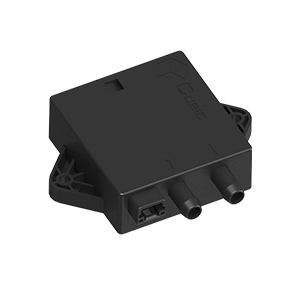

Integrated Air Quality Sensor AIS-8100

FOB Price:	1.00 - 9999.00 USD/Cubic Meter
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Output: CAN
Theory: PM: Laser light scattering;CO2: NDIR
Usage: Gas Sensor
Brand Name: Cubic
material: metal
Model Number: AQIS-1000

Specifications

Introduction

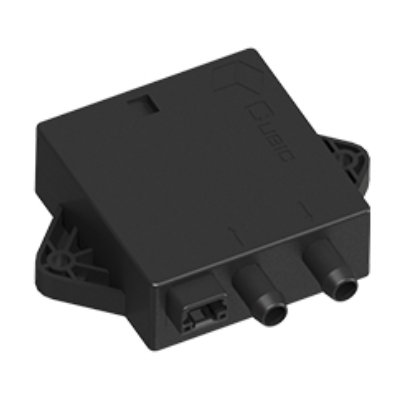

AIS-8100 sensor is an integrated air quality sensor for vehicle air quality monitoring. by integrated PM sensing based on laser scattering technology and CO2 sensing based on advanced NDIR technology, AIS-8100 sensor can output accurate and fast PM2.5 and CO2 concentration measurement via CAN communication. It helps to give a real time vehicle in-cabin air quality monitoring, and provides a health and comfortable in-cabin environment for both drivers and passengers.

Features
1.PM2.5 and CO2 simutaneous output
2.Laser scattering technology adopted, the smallest size of available measurement: 0.3μm
3.Real-time PM2.5 output in μg/m3
4.NDIR technology adopted for high accuracy CO2 concentration measurement
5.Beneficial from built-in fan, CO2 level measurement is in faster response
6.Auto-calibration for CO2 sensing
7.High-temperature laser module, resistant up to 85℃
8.Long lifetime laser
9.Vehicle-level (AEC-Q compliance) circuit design can be suitable to the harsh vehicle environment
10.CAN real-time communication

Applications
1.Automotive Air Conditioner
2.Rail Transport

Specifications

Operating principle	PM: Laser light scattering;CO2: NDIR
Measured paride range	0.3μm ~ 2.5μm
Measurement range	PM2.5: 5~500μg/m3; CO2: 400-5000ppm
Resolution	PM2.5: 1μg/m3; CO2:1ppm
PM2.5 accuracy	±5μg/m3 or ±10% of reading
CO2 accuracy	±5% of reading
Data refresh time	≤1s
Digital output	CAN
IP rating	IP54
Noise	≤35dB(A)@50cm
Working condition	-40~+70C.5-95%RH (non-condensing)
Storage condition	-40~+85C,5 -95%RH (non-condensing)
Power supply	DC 12V( DC 9V ~16 V compatible)
Working current	≤150mA
Standby current	≤100μA
