Automactic Film Shrinking Tunnel Wrapping Packaging Machine

FOB Price:	3000.00 - 5000.00 USD/Set
Supply Ability:	100 Set(s) per Month
Shipping:	by sea
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	film wrapped + iron pallet

Quick Details

Type: Wrapping Machine
Brand Name: Yingyi
Packaging Material: Glass,Paper,Plastic,
Packaging Type: Barrel,Bottles,Cans,Cartons,Film,Foil,
Application: Beverage,Chemical,Commodity,Food,Medical,
Condition: New
After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE ISO SGS
Weight: 1200kg
Dimension(L*W*H): 5050x3300x800MM
Model Number: YY-L480
Power: 28kw
Voltage: 220V/380V
Driven Type: Electric
Automatic Grade: Automatic
product name: film shrinking tunnel
Material: Steel
Function: packing bottles together
Speed: 8pack per min
Keyword: film packaging machine
Warrenty: 1 year
Power: 220V/380V
Advantage: eay operation
Other name: film wrapping machine

Specifications

Product Description:
1. the film sealing machine adopts the advanced structure of heat sealing and eager cutting, with firm sealing, neat edges and good stitching performance. 2. the main body of the sealing and cutting is driven by a cylinder with guide posts at both ends to ensure the stability and reliability of the sealing and cutting film. 3. the conveying trough adopts the flat conveying form, and the whole conveying is in place, without changing the template, adapting to various bottle types, and the operation is convenient and quick. 4. Set up PID temperature controller, its temperature control is accurate and energy-saving. 5. the equipment adopts an automatic control system, with automatic feeding, bottle unscramble, shrinking, cooling and shaping, the production process is stable and reliable, and it can adapt to long-term work without stopping. 6. Imported high-speed fiber optic sensor is used for counting in the conveying and entering bottles, which is more accurate and stable. 7. Touch screen control makes the equipment action control enter a high-precision and intelligent state. All actions are monitored, various alarms, and PC status are displayed on the touch screen, which makes the equipment operation safer and more reliable. It can be operated in a single step, which is convenient for debugging and maintenance. 8. the equipment is equipped with an automatic alarm device to further improve the safety and reliability of the equipment. 9. The advanced spiral air circulation structure of the shrinking furnace, three-layer heat insulation treatment, save energy. 10. The conveying level and feeding direction of the equipment, and the size of the machine can be customized according to customer requirements.

Product Tenichque Parameters:

MODEL		YY-L480
Input Power	Kw	28
Input Voltage	V/Hz	3, 380/220VAC/50Hz
Production Efficiency	P/M	0-8 pack/Minute
Size of Host Machine	mm	5050L3300W1800H
Applicable Diameter of Bottle Body	mm	25120
Applicable Length of Label	mm	30250
Height of Conveying Belt	mm	7501100
Working Pressure	Mpa	0.60.8
Packing material		PE shrinking film

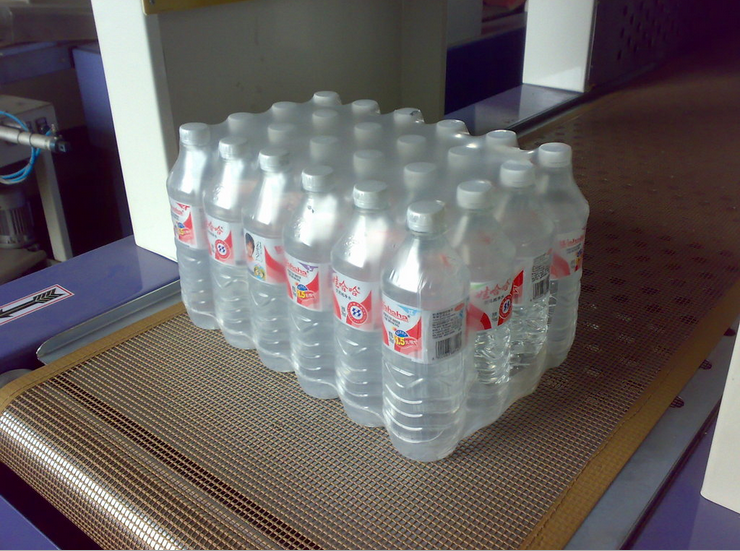

Product Photos:

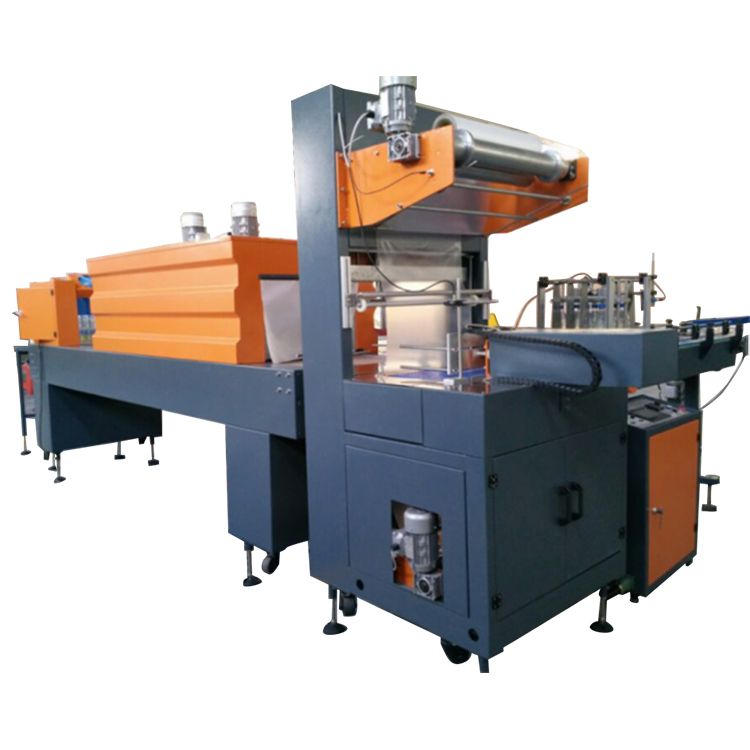

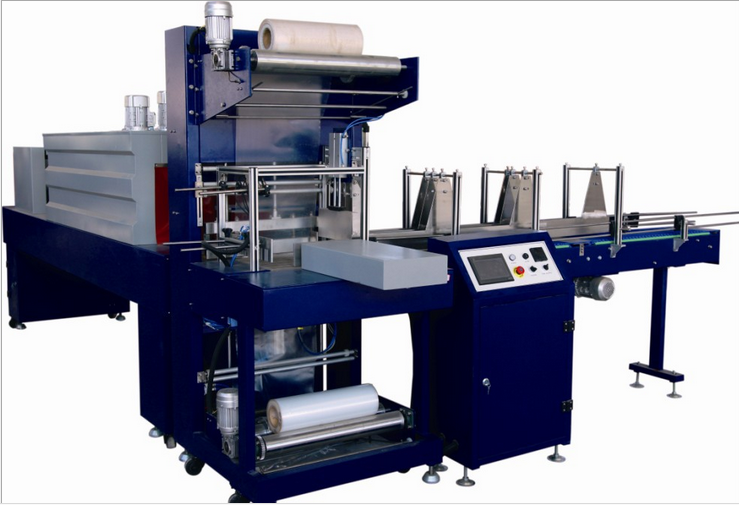

Automactic film shrinking tunnel wrapping packaging machine
