Home >Products Catalog > Flue Gas Analyzer > Greenhouse Gas Emission Analyzer Portable Flue Gas Analyzer Gasboard-3000GHG for Measuring CO2, CH4, N2O, CO, O2

Greenhouse Gas Emission Analyzer Portable Flue Gas Analyzer Gasboard-3000GHG for Measuring CO2, CH4, N2O, CO, O2

FOB Price:	1.00 - 9999.00 USD/Cubic Meter
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Brand Name: Cubic-Ruiyi
Weight: N/A
Sampling Method: N/A
Size: N/A
Alarm type: N/A
Model Number: Gasboard-3000GHG

Specifications

Introduction
Cubic-Ruiyi (a wholly-owned subsidiary of Cubic sensor) independently developed Gasboard 3000GHG greenhouse gas emission analyzer. Adoptting the independent intellectual property rights of Micro flow NDIR dual-chamber sensor technology (international PCT patent PCT/CN2018100767), Cubic-Ruiyi portable greenhouse gas emission analyzer Gasboard 3000GHG can accurately measure the greenhouse gases concentration change of CO2, CH4, N2O etc and CO gas in flue gas at the same time. the range can be as low as 200ppm, the accuracy can be as high as 1%F.S.. Besides it has strong resistance to gas cross interference and low drift. At the same time, for high concentration of CO2 and high range CO measurement, NDIR gas sensor technology sensor modules with intellectual property rights are optional for flexible configuration. Good stability, small size and low cost.

Features

1. One analyzer can simultaneously and continuously measure up to five gases such as CO2, CH4, N2O, CO and O2;
2. CO2, CH4, N2O, CO can choose the patented Microflow NDIR technology, the range can be as low as 200ppm, accuracy up to 1%F.S.;
3. Small drift, anti-moisture interference, good long-term stability;
4. Dual beam NDIR technology can be used to measure CO2 and CO for flexible collocation for medium and high concentration measurement requirements;
5. both digital and analog signal output functions, simple data management;

Specifications

Measuring components	CO2, CH4, N2O, CO, O2
Measuring Principle	Micro-flow NDIR	CO2/CH4/N2O/CO
	Dual beam NDIR	CO2(high range), CO(Middle or high range)
	ECD	O2
Measurement range	CO2	Micro-flow NDIR: Range 0-500ppm, resolution: 1ppm
		Micro-flow NDIR: Range 20%, resolution: 0.01%
		Dual beam NDIR: Range 25%-100%, resolution: 0.01%
	CH4	Range: 1000ppm, resolution: 1ppm
	N2O	Range: 500ppm, resolution: 1ppm
	CO	Micro-flow NDIR: Range 200-500ppm, resolution: 1ppm
		Dual beam NDIR: Range 1-5%, resolution: 0.001%
	O2	Range 0-25%, resolution: 0.01%
Measurement Precision	Micro-flow NDIR measurement	CO2/CH4/N2O/CO: ±1%F.S.
	Dual beam NDIR measurement	CO2/CO: ±2%F.S.
	Electrochemical measurement	O2: ±2%F.S.
Repeatability	≤±1%
Response Time	T90 25s
Flow rate	(0.7-1.2)L/min
Inlet gas pressure	(2-50)kPa
Output signal	RS485/RS232, 4-20mA
Sample gas requirement	Water remove(non condensing), dust filter (1μm or smaller)
Power supply	AC220V, 50Hz
Diagnosis Function	Equipped with self-diagnosis function to check sensor status

Applications
Thermal power plant, steel plant, non-ferrous metal smelter, aluminum smelter, cement plant, phosphate fertilizer plant, nitric acid plant, sulfuric acid plant, petrochemical plant, chemical fiber plant, industrial furnace, boiler, civil heating boiler, etc.

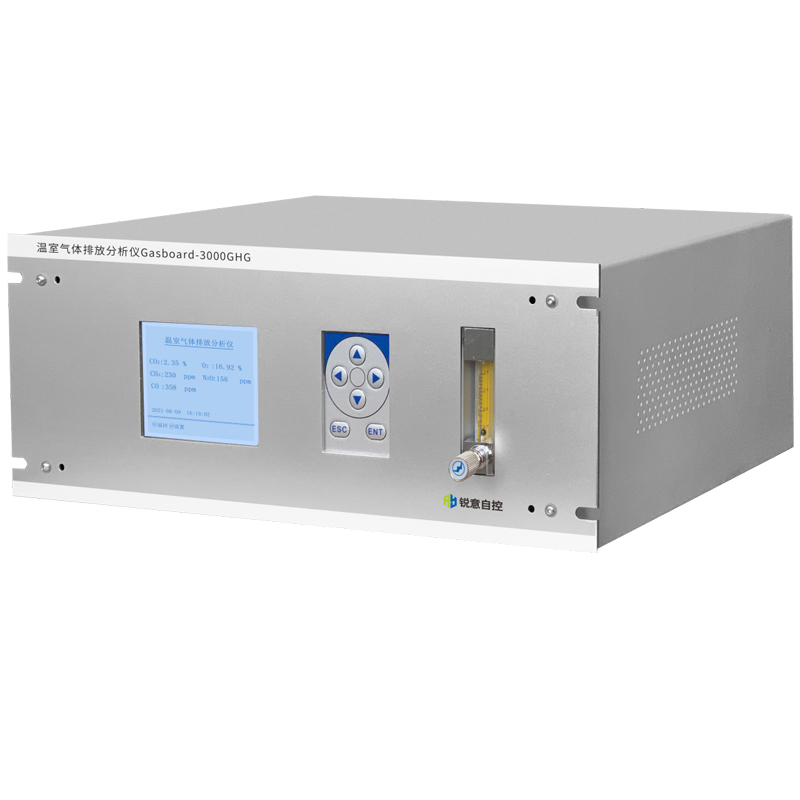

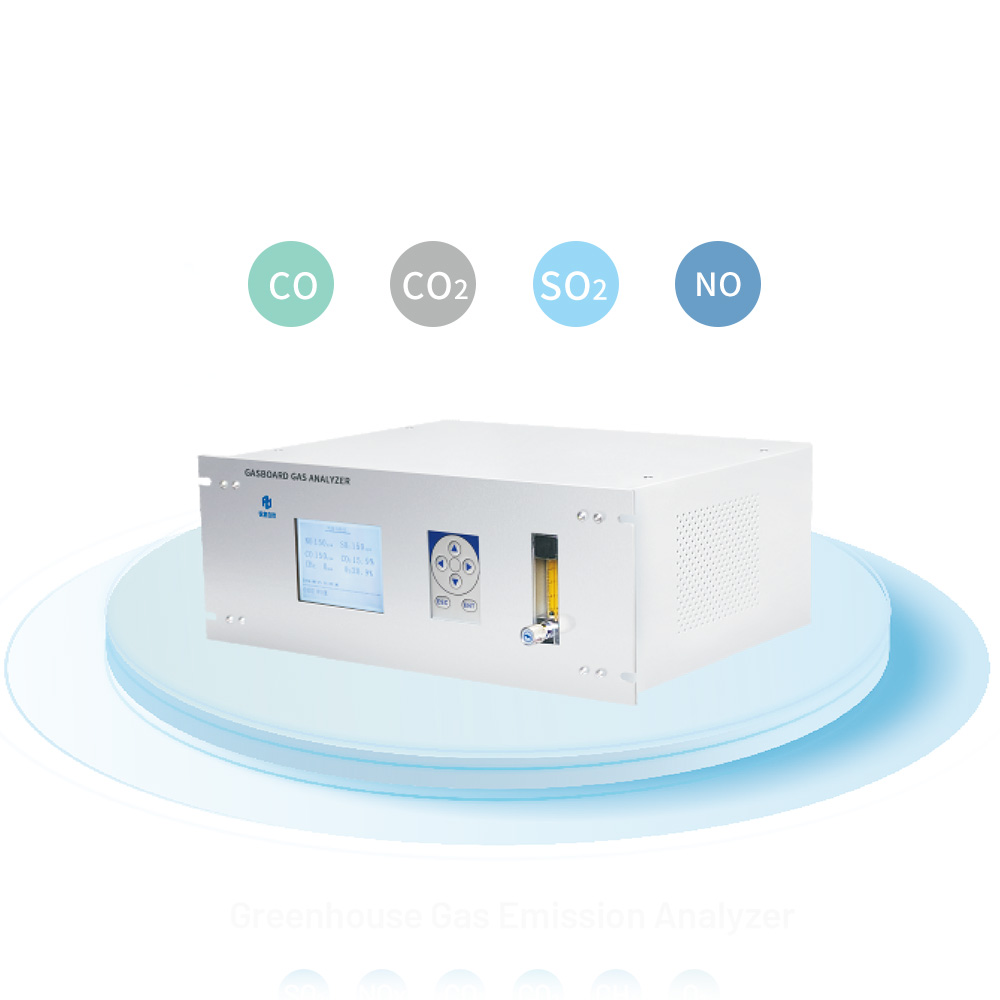

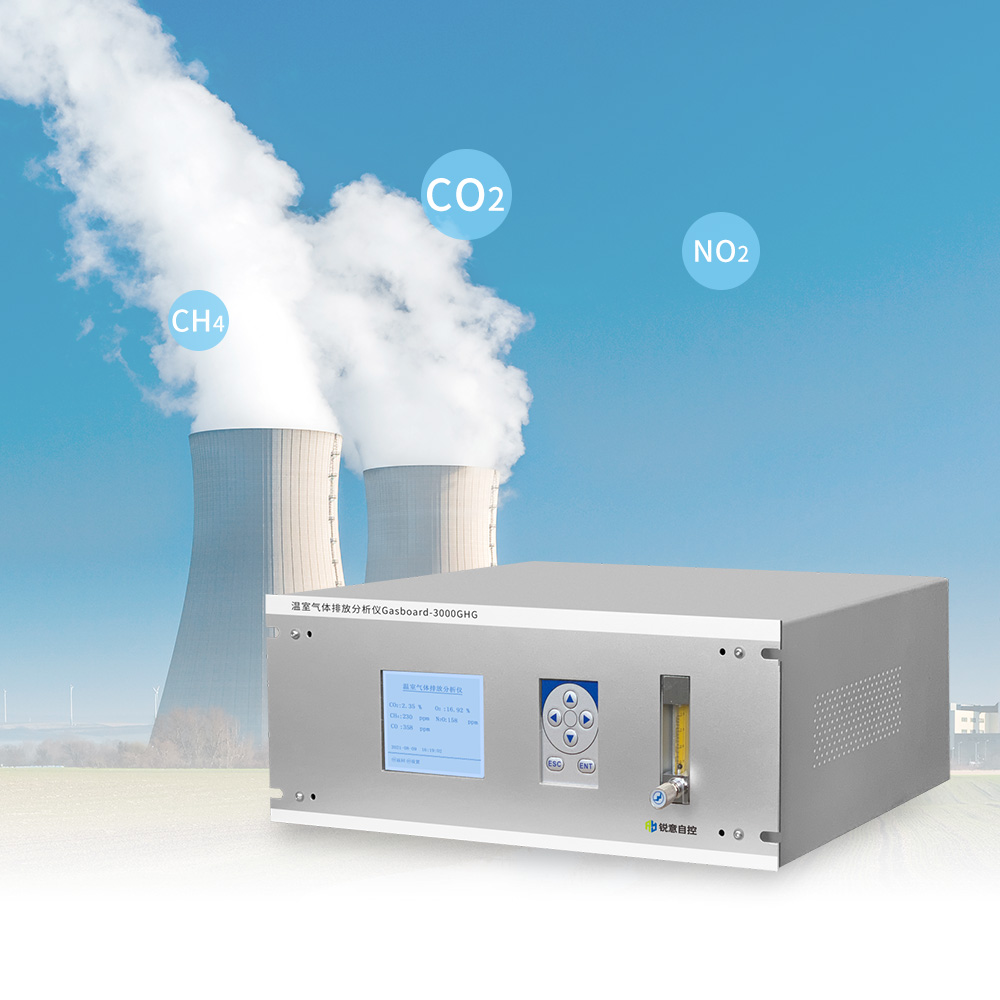

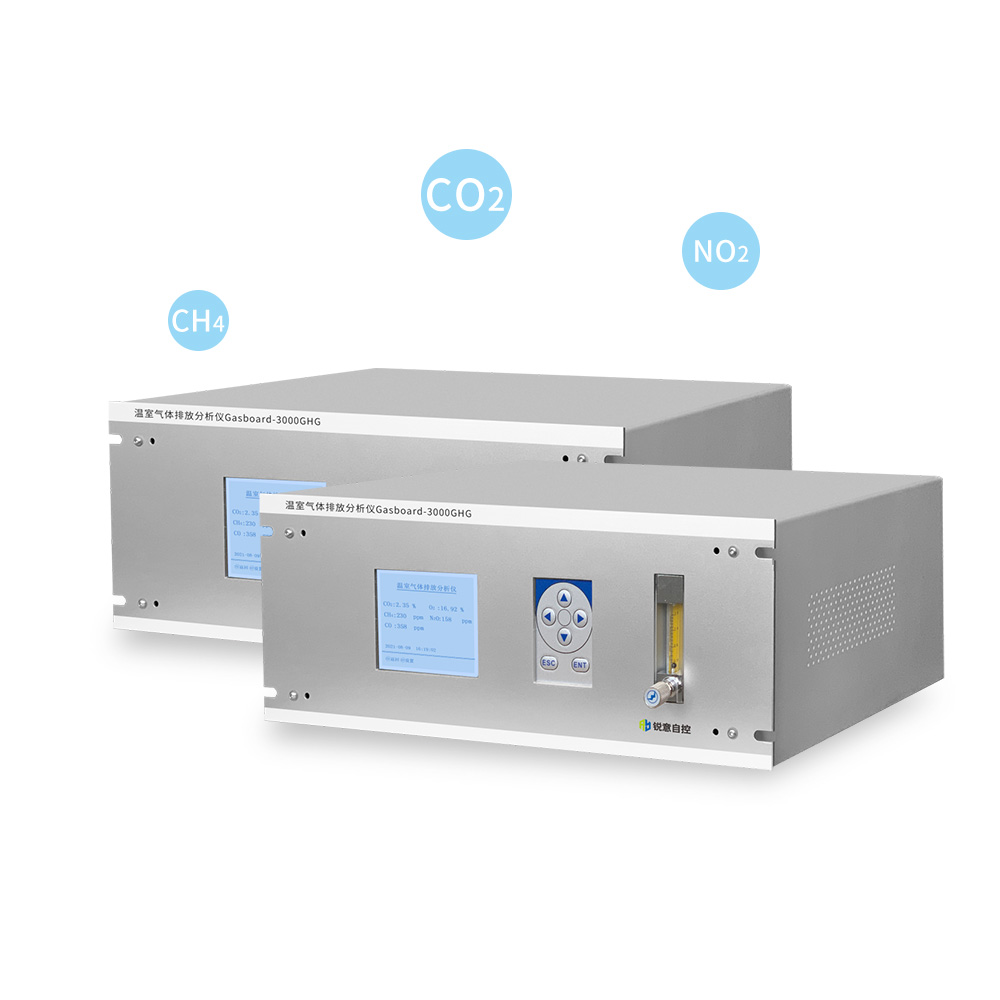

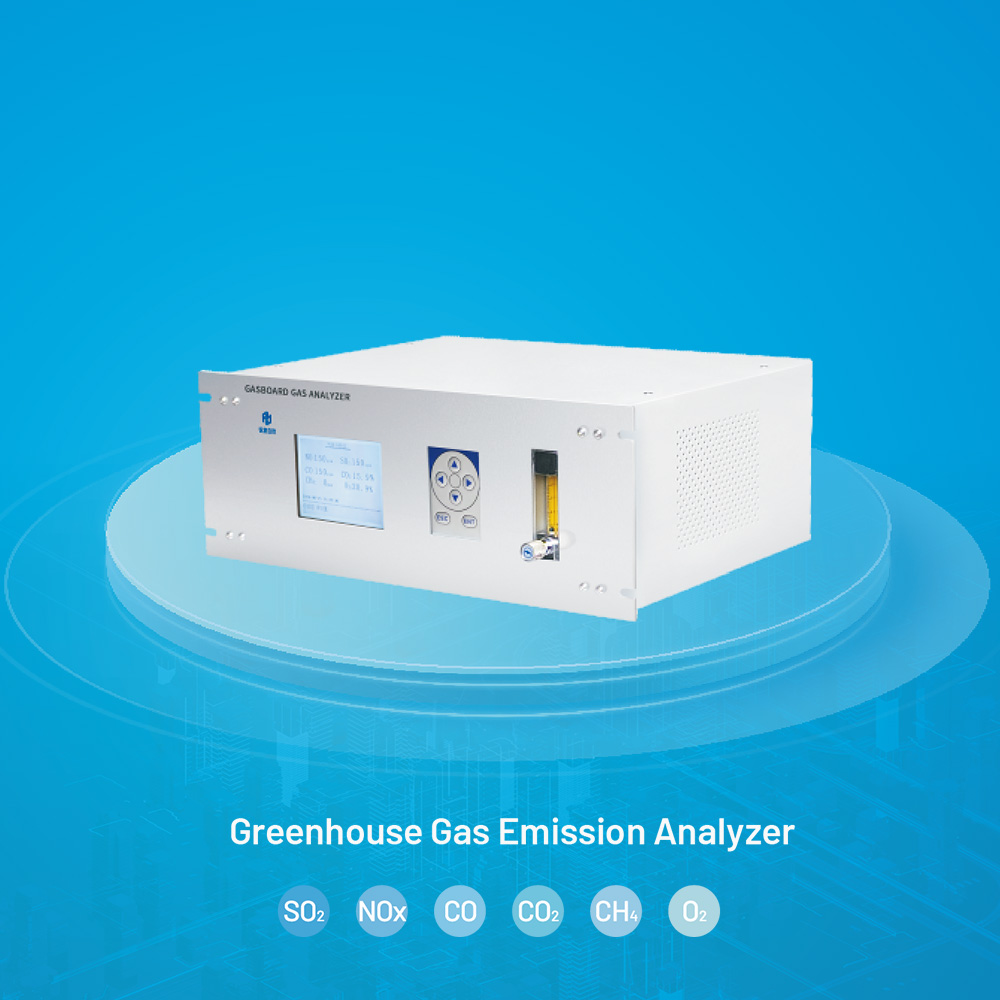

Greenhouse Gas Emission Analyzer Gasboard3000GHG

Greenhouse Gas Emission Analyzer Gasboard3000GHG
