5Ton 10Ton 16Ton 20 Ton Trussed Type Lifting Machine MH Electric Hoist Single Girder Beam Gantry Crane
| FOB Price: | 3000.00 - 8000.00 USD/Set |
|---|---|
| Supply Ability: | 5,000 Set(s) per Month |
| Shipping: | By sea and Land transportation |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | 1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation. 3. If the size are suitable for container ship, usually by container. |
Quick Details
- After-sales Service Provided: No overseas service provided
- Condition: New
- Brand Name: Kuangyuan
- Weight: 4140kg
- color: customizable
- Model Number: MH
- Product Name: 5Ton 10Ton 16Ton 20 ton Trussed Type Lifting machine MH Electric Hoist Single Girder Beam Gantry Crane
- Crane type: Single Beam Light Duty Gantry Crane
- Power Source: 3 Phase 380V 50hz
- Work Duty: A3, A4
- Main electrical parts: Siemens or Schneider brand
- Control method: Ground Control+Remote Control
- Color: Customised
- After-sales Service Provided: Engineers available to service machinery overseas
- Working temperature: -10 ~45
- Lifting mechanism: Wire Rope Electric Hoist
Specifications
5Ton 10Ton 16Ton 20 ton Trussed Type Lifting machine MH Electric Hoist Single Girder Beam Gantry Crane
Product Description:
Remote Control 5TON 10TON 15TON 20TON Electric Hoist Single Girder Gantry Crane is a small and medium-sized lifting equipment running on rails, which is mainly composed of gantry frame (main beam, support leg, ground beam, etc.), lifting mechanism, running mechanism and electronic control system.
It takes electric hoist as lifting mechanism and runs along the lower flange of main beam I-steel when working.
the door frame structure is divided into box type and trussed type, box technology is good, easy to make; the trussed type has light weight and less wind resistance.
the machine has the characteristics of light weight, simple structure, convenient installation and maintenance, and is suitable for general loading, unloading and lifting work in factories and mines, freight yards and warehouses for small and medium duty lifting job.
Painting: brushed by man, to make sure even coating thickness and high adhensive
Product Technical parameters of Remote control 5TON 10TON 16TON 20TON Single Girder Gantry crane:
| 5 | 10 | 16 | 20 | |
| Span/m | 10-40 | |||
| Lifting height/m | 6/12/18 | |||
| Working class | A3/1bM | |||
| Lifting speed/m/min | 8 | 7 | 3.5 | 3.5 |
| Trolley running speed/m/min | 20 | 20 | 20 | 20 |
| Crane running speed/m/min | 20 | 20 | 20 | 20 |
| Power source | 380V50Hz3PhAC | 380V50Hz3PhAC | 380V50Hz3PhAC | 380V50Hz3PhAC |
| Control mode | Remote control | Remote control | Remote control | Remote control |

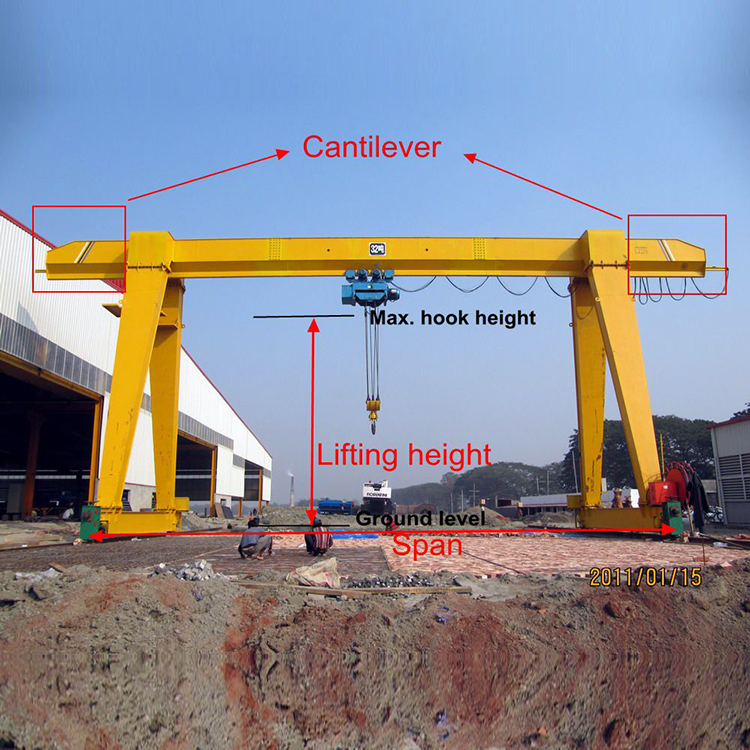

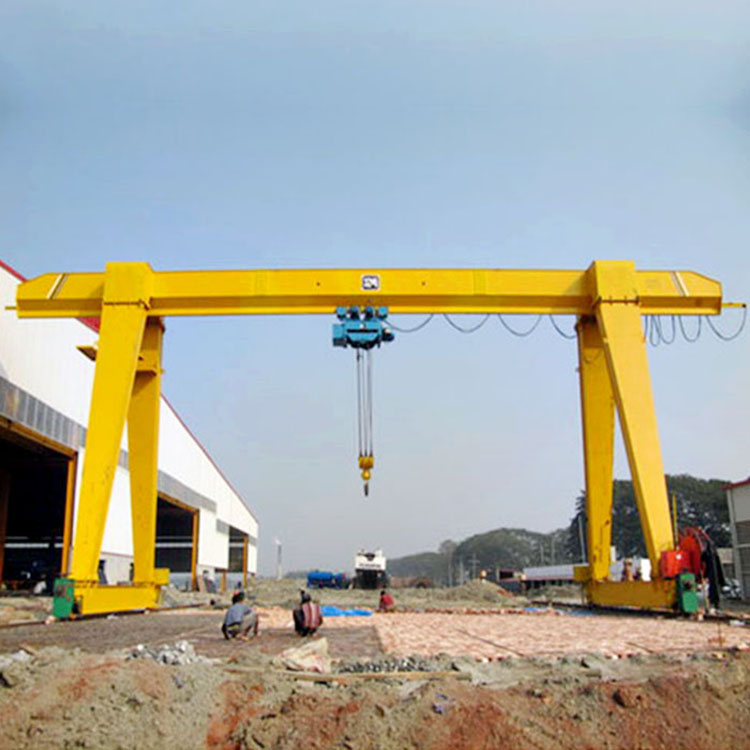

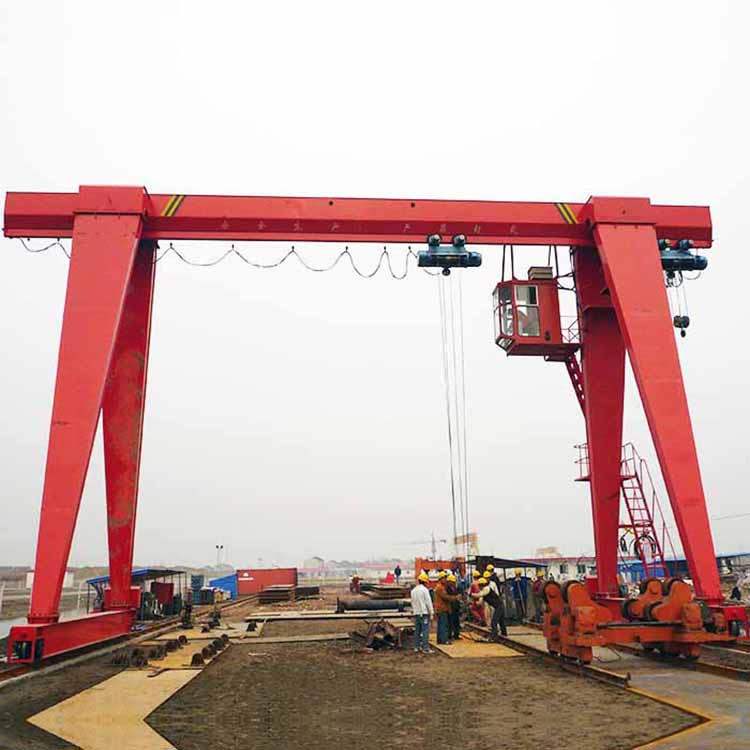

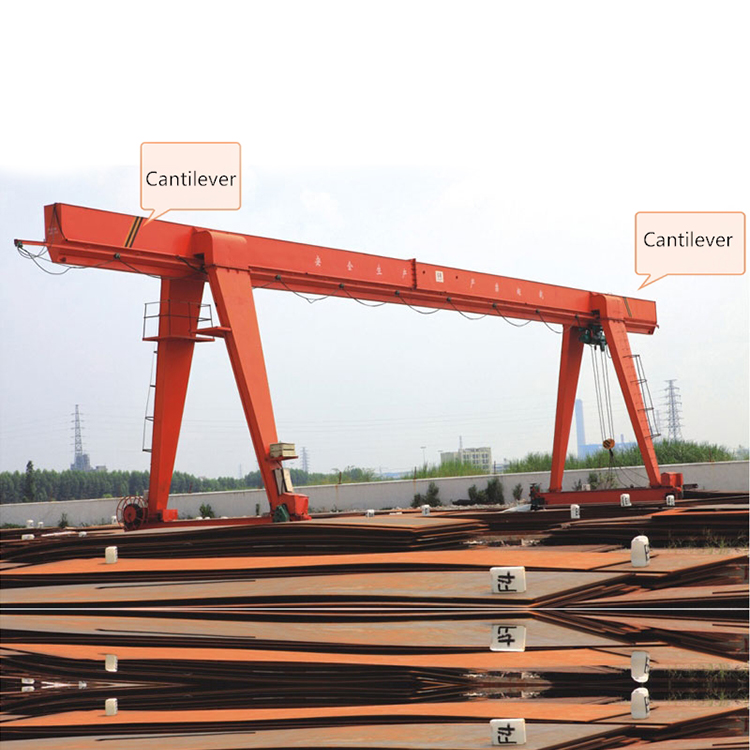

Product photo of Remote Control 5TON 10TON 15TON 20TON Electric Single Girder Gantry crane:
Product sketch of 5TON 10TON 15TON 20TON Single Girder Gantry crane:

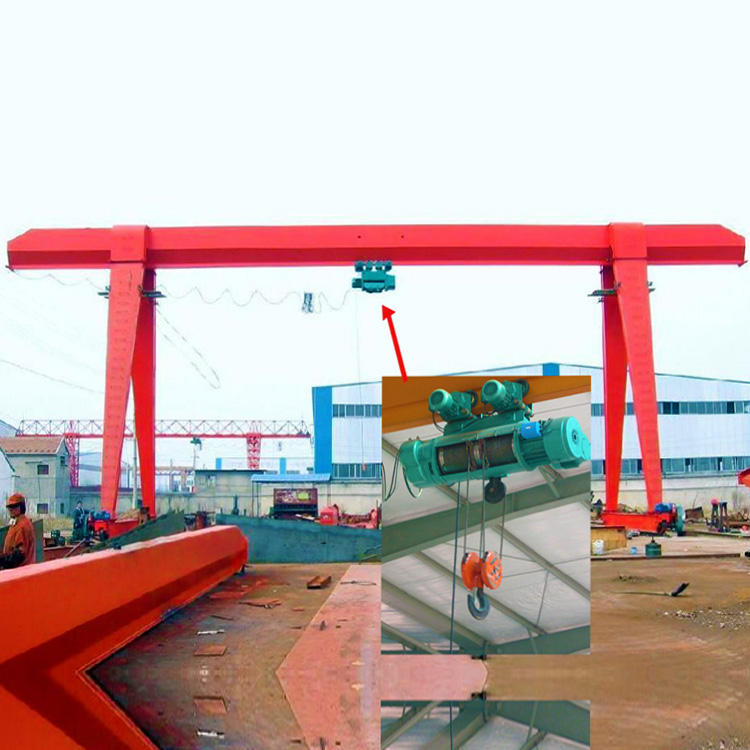

Main Parts of MH model 5TON 10TON 15TON 20TON Single Girder Gantry Crane:
Main Features of MH model 5TON 10TON 15TON 20TON Gantry Crane:
1.It has main beam,legs,ground beam,lifting mechanism,electric controlsystem.
2.Its structure type has two types, box type or trussed type,Simple and compact structure, steady performance.
3.Lifting unit is Electric Hoist,capacity 5ton,10ton,15ton,20ton
4.Motor protection class IP44,IP54,IP55,Motor insulation class F,H
5.Control mothod:Pendent control,cabin control or remote control.
6.Working environment tempetature:-20'C~45'C.
Attention:
Safety is the most important issue for cranes. to ensure the safety,It is prohibited to use the equipment in the combustible, explosive or corrosives environment.(Need explosion proof type for this).
Company Information:
Henan Mine Crane Co.,Ltd is the largest industrial crane manufacturer in China since 2002. Main products are Electric hoist/Overhead crane/Gantry crane/Grab crane/Magnet crane/Ladle Lifting crane/Explosion proof crane/Container gantry crane/European type crane and hoist /Electric Winch,Jib crane,Scissor Lift/Crane components.
Henan Mine Crane has 4500staffs,1420000m2 workshop area,3500sets of various advanced equipments,yearly sales 100000sets of crane and hoist, ISO,CE etc certifications, cranes are exported to 120countries.
in Pakistan,we have supplied our cranes to Abbas Steel Group,Almoiz industries Ltd,Fareed Engineering works.
Besides Pakistan,we also supplied our cranes to India,Bangladesh,Philippines,Uzbekistan,Cameroon,Egypt,Ethiopia,Nigeria,Morocoo,Algeria.
Certifications:
We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.
