Henan Mine Crane Co., Ltd.
China Manufacturer with main products: Overhead Crane, Gantry Crane, Electric Hoist, Casting Crane, Grab Overhead Crane, Electric Winch |
1t 2t Customized Electric Wire Rope Hoist with Motorized Trolley for Sale
| FOB Price: | 800.00 - 5000.00 USD/Set |
|---|---|
| Supply Ability: | 5,000 Set(s) per Year |
| Shipping: | By sea and Land transportation |
| Payment Terms: | L/C, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | Electric parts are packed by high quality plywood crate. |
Quick Details
- After-sales Service Provided: No overseas service provided
- Condition: New
- Brand Name: Kuangyuan
- Weight: 1000KG
- color: customizable
- Model Number: CD/MD
- Product Name: 1t 2t Customized electric wire rope hoist with motorized trolley for Sale
- Crane type: electric wire rope hoist
- Power Source: 3P 220--440 V/50HZ
- Work Duty: A3, A4
- Main electrical parts: Schneider Brand
- Control method: Ground Control+Remote Control
- Color: Customised
- After-sales Service Provided: Engineers available to service machinery overseas
- Working temperature: -10 ~45
- After Warranty Service: Video technical support
Specifications
1t 2t Customized electric wire rope hoist with motorized trolley for Sale
Product Description:
MD Model electric wire rope hoist provides two speeds: normal speed and low speed. at a low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc. It is widely used in factories, mines, harbours, warehouse, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.
| Lifting weight(t) | 1,2,3,5 | 10 | 16 | ||
| Lifting height(m) | 6/9/12/16/24/30 | 9/12/18/24/30 | 9/12/16/20/24/30 | ||
| Hoisting speed(m/min) | 8(0.8/8) | 7(0.7/7) | 3.5(0.35/3.5) | ||
| Running speed(m/min) | 20 | 20 | 20 | ||
Steel wire Rope type |
Specification | 637+1 | |||
| H beam orbit model | 16-45c | 30T-45c | 30T-45C | ||
| Minimum curvature radius(m) | 1.5-6 | 3.5-9 | 3.5-6 | ||
| Hoisting motor | Type | ZD1(ZDS1) | ZDI(ZDS1) | ZD1(ZDS1) | |
| Power(KW) | 1.5/3/4.5/7.5 | 13(1.5/13) | 18.5(2.2/18.5) | ||
| Rotation speed(r/min) | 1380 | 1380 | 1380 | ||
| Current(A) | 4.3,7.6,11,18 | 30 | 30 | ||
| Running speed | Type | ZDY11,12,21-4 | ZDY21-4 | ZDY21-4 | |
| Power(KW) | 0.2,0.4,0.8 | 1.5*2 | 0.8*2 | ||
| Rotation speed(r/min) | 1380 | 1380 | 1380 | ||
| Current(A) | 0.72,1.25,2.4 | 2.4 | 2.4 | ||
| Power source | Three-phase, 380V, 50 HZ or 400~440V/50-60Hz, | ||||
| Working system | Intermediate FC=25% | ||||
Main Product:
Henan mine cranes are universal bridge cranes, 20 and 5-ton overhead cranes, eot cranes, door cranes, universal crane cranes, rubber tires and container cranes, 4-link portal cranes, thread cranes. Hooks, mining cranes, cranes, forklifts, bucket loaders, bucket loaders, stack regenerators, draggers, mobile platforms and other types of hydraulic cranes.

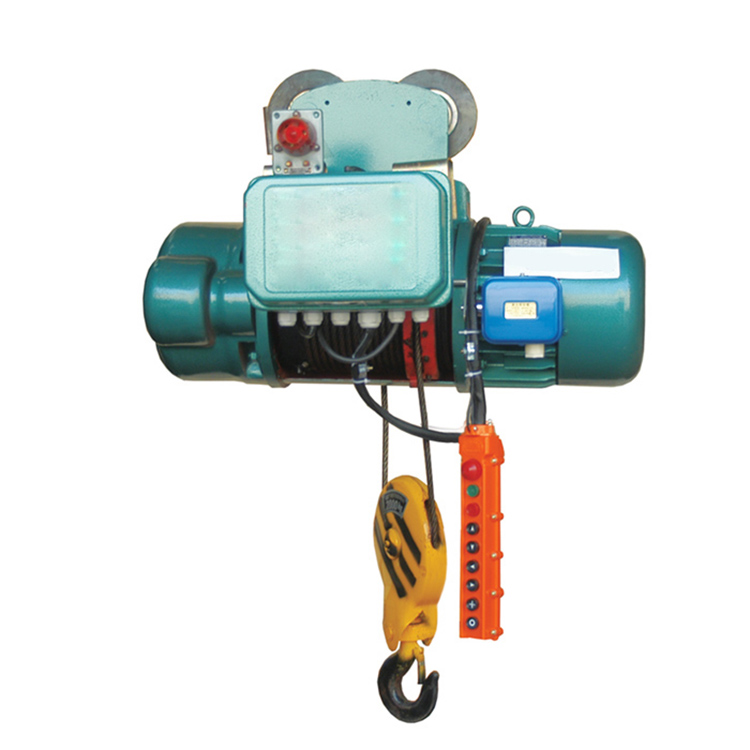

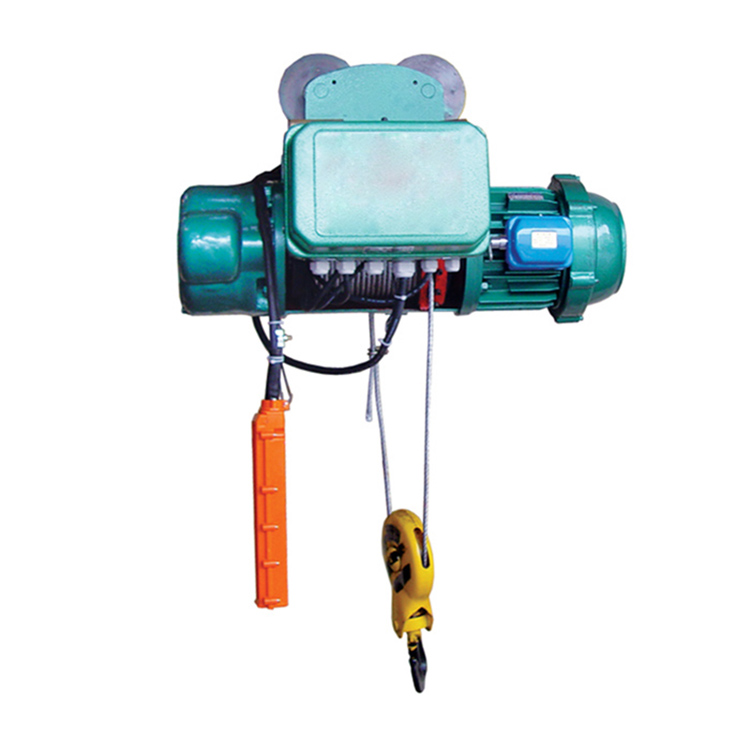

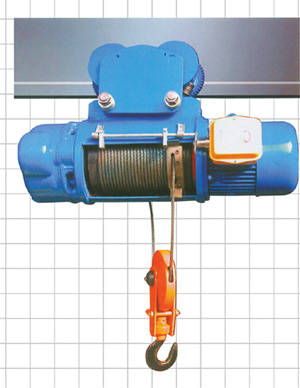

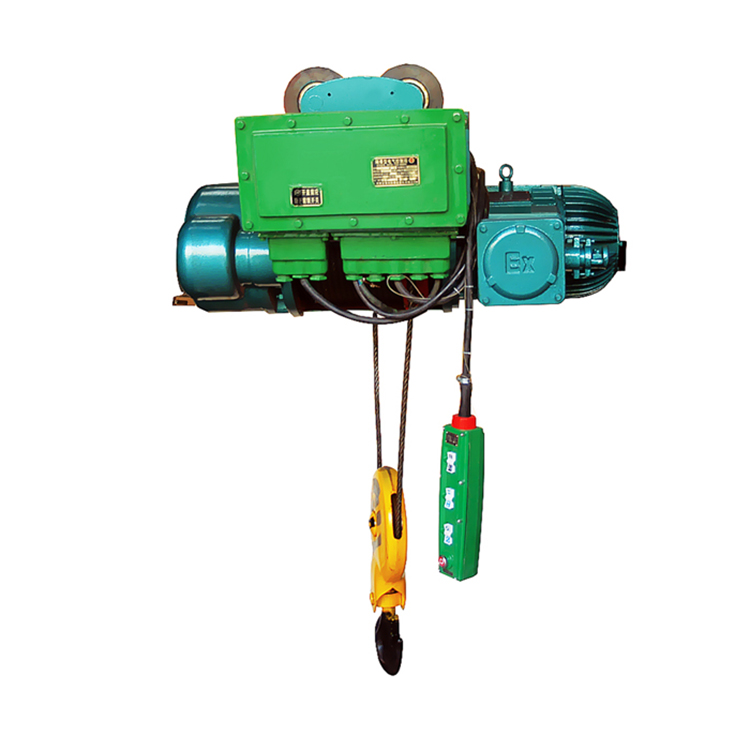

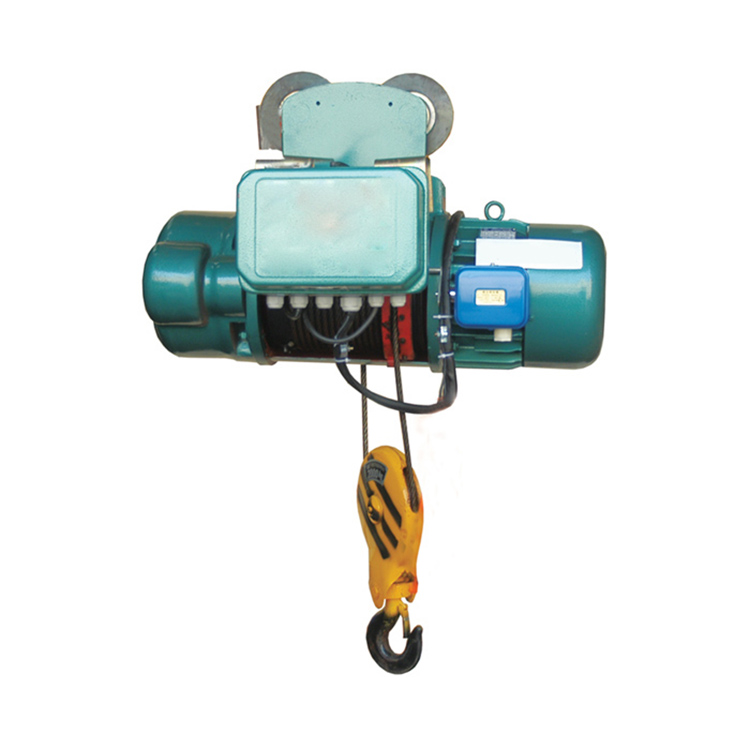

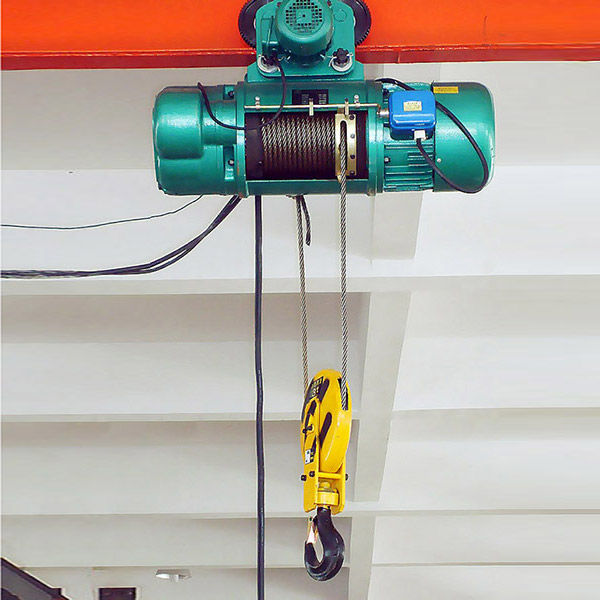

Photos:
Structural features:
the components of wire rope electric hoist are: motor, transmission mechanism, reel and wire rope. the motor and the reel can be roughly divided into four types based on the different positions of each other. (1) The electric hoist whose motor axis is perpendicular to the axis of the drum adopts worm gear transmission, which is large in width, heavy in structure, low in mechanical efficiency, and difficult to process. No manufacturer produces products of this type of structure anymore. Wire rope electric hoist
(2) the electric hoist with the motor axis parallel to the drum axis has the advantage of small height and length.Its disadvantages are large width, grouping, and complicated manufacturing and assembly. the track turning radius is large.
(3)the electric hoist with the motor installed in the drum has the advantages of small length and compact structure. Its main disadvantages are poor heat dissipation conditions of the motor, poor grouping, inconvenient inspection, installation, and maintenance of the motor, and complicated power supply devices. (4) the electric hoist with the motor mounted on the outside of the drum has the advantages of good grouping, high degree of generalization, easy to change the lifting height, and convenient installation and maintenance. the disadvantage is: the length is large.
