Home >Products Catalog > Sensor Switch > DC Mini LED Dimmer Touch Switch 12-24V 2A Single Color Light Emitting Diode Strip Brightness Controller On/off Inline

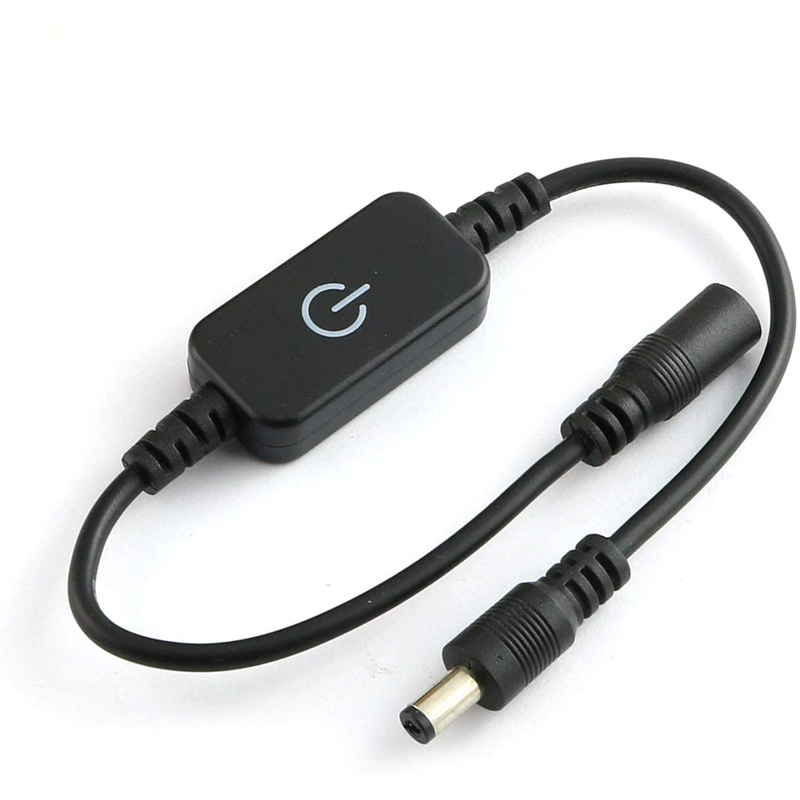

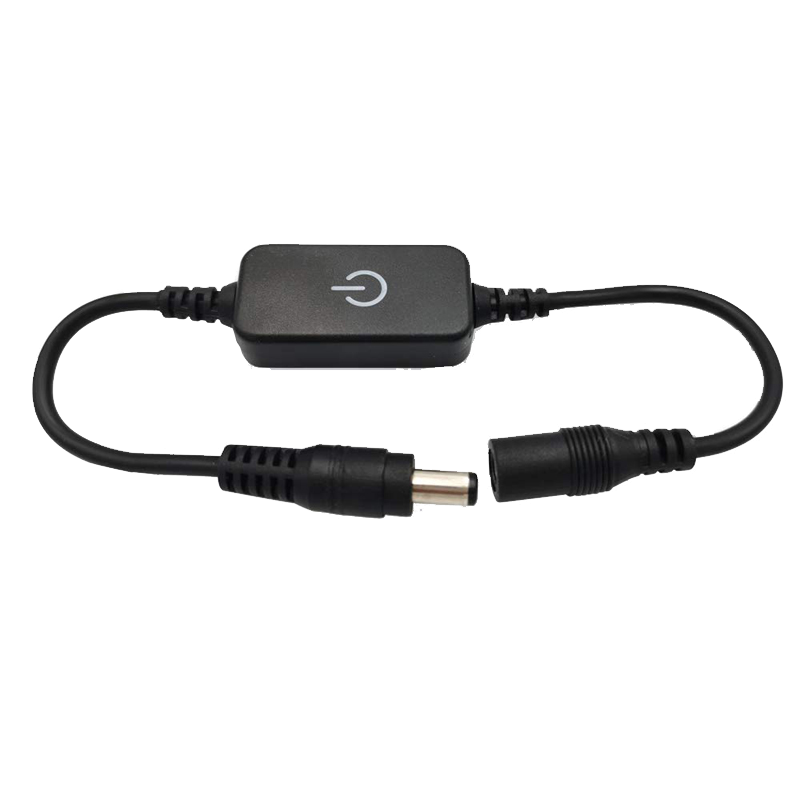

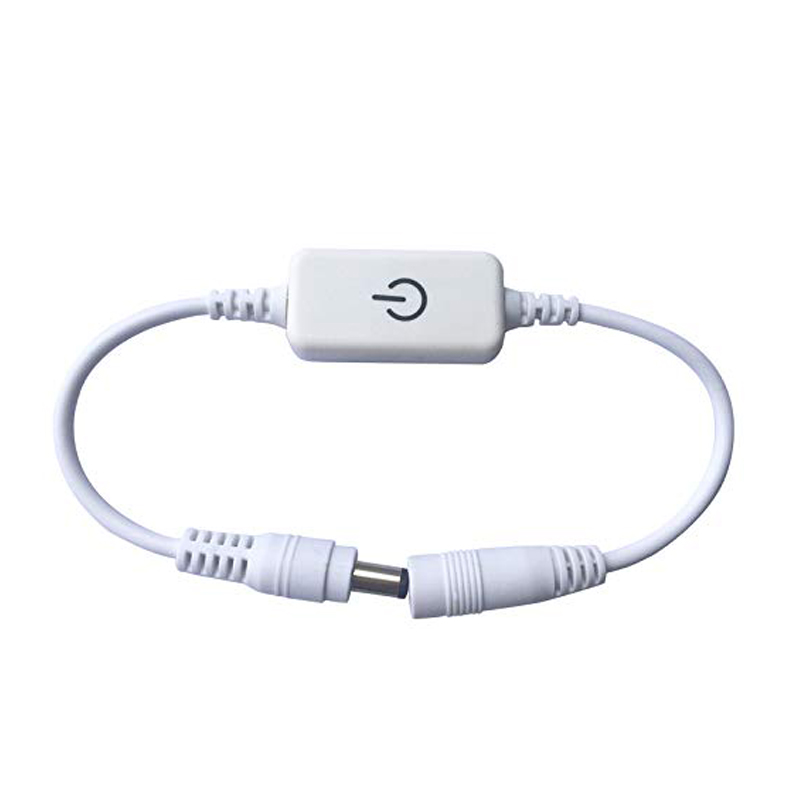

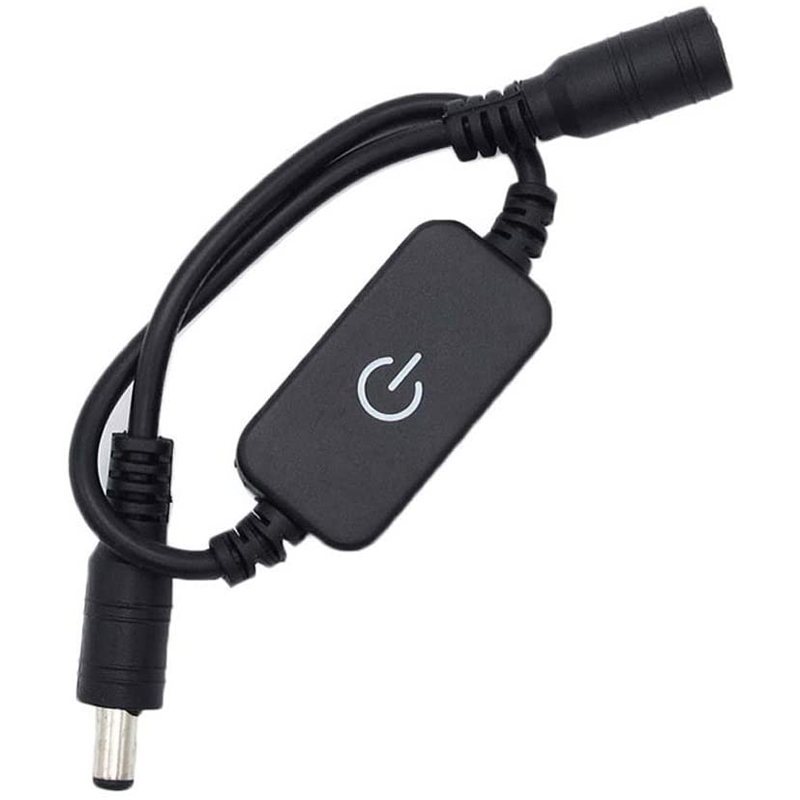

DC Mini LED Dimmer Touch Switch 12-24V 2A Single Color Light Emitting Diode Strip Brightness Controller On/off Inline

FOB Price:	3.00 - 5.00 USD/Piece
Supply Ability:	60,000 Piece(s) per Month
Shipping:	7-15 workdays after payment
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	1pcs per month

Quick Details

Mechanical Life: 50000hours
Max. Voltage: 12V
Max. Current: 2A
Size: 40x20x11mm
Brand Name: cinakira

Specifications

DC Mini LED Dimmer Touch Switch 12-24V 2A Single Color Light Emitting Diode Strip Brightness Controller On/off Inline about this item

Package: 1pc White Mini LED Dimmer Touch Switch, use your finger to touch the power icon to dim smoothly as well as power on/off your LED light.

Operating Voltage: DC 12-24V; Drive Current: 2A; Quiescent Current: Less than 60uA

Function: Connect Single Color LED Strip light to the DC power adapter, to adjust brightness by long press, and switch on/off by short press in a cycling pattern.

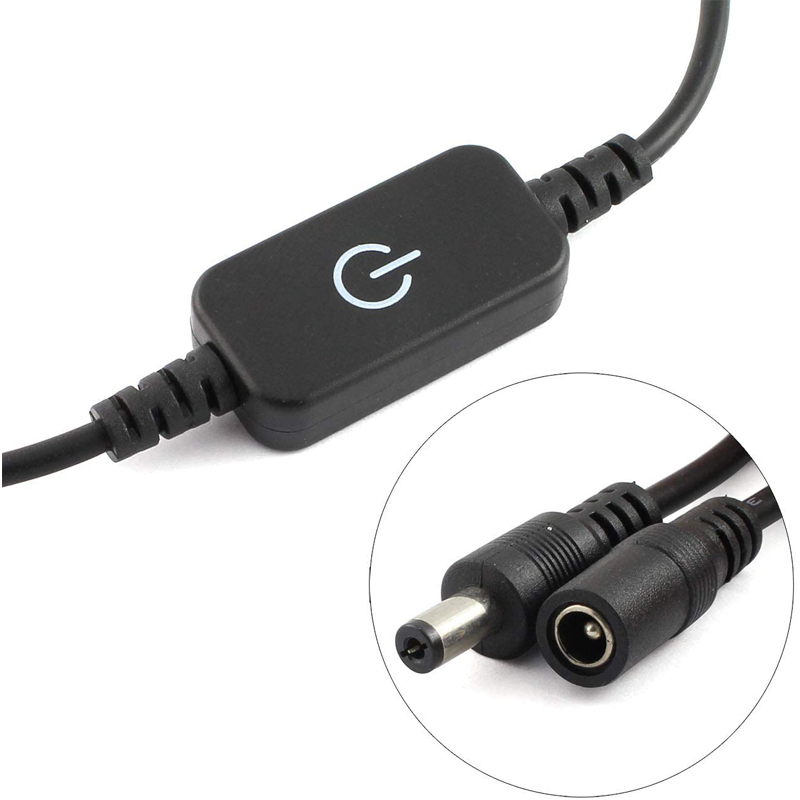

Plug and Play: Standard DC 5.5x2.1mm male / female connectors, no cutting and soldering required, easy to install and simple to use.

Application: Suitable for controlling a variety of monochrome lamps with LED as the light source. for example: point light, soft light strip, wall lamp, glass curtain wall lamp, etc.

Product description

Color:White

It is a touch sensitive switch with non-polar dimming function. When the hand touches the switch for the first time, the light will turn on, touches it again, the light will turn off. Keeps touching, the light will turn on slowly from turning off; Keeps touching after releasing, the light will turn off slowly. Followed by recycling.

Feature:
1. Large driving current, can control 2A 12-24V LED lamp;
2. Small size, convenient to install;
3. Strong anti-interference ability, high stability;
4. Easy wire connection, DC standard male and female jack connector, plug and play;
5. Low static power consumption, micro-ampere level power consumption.

Application:
1. Induction lamp;
2. LED strip sensor;
3. Table light sensor;
4. Cabinet, wardrobe automatic sensor;
5. Corridor light sensor.

Parameter:
Operating Voltage: DC 12-24V
Quiescent Current: Less than 60uA
Drive Current: 2A
Size: 40x20x11mm
Wire Connection: DC 5.5x2.1mm plug
Working Temperature: -20 to +80 degree Celsius

Tip: the input voltage is same with the LED working voltage, for example, if the input voltage is 12V, the LED working voltage should also be 12V.

Package Include:

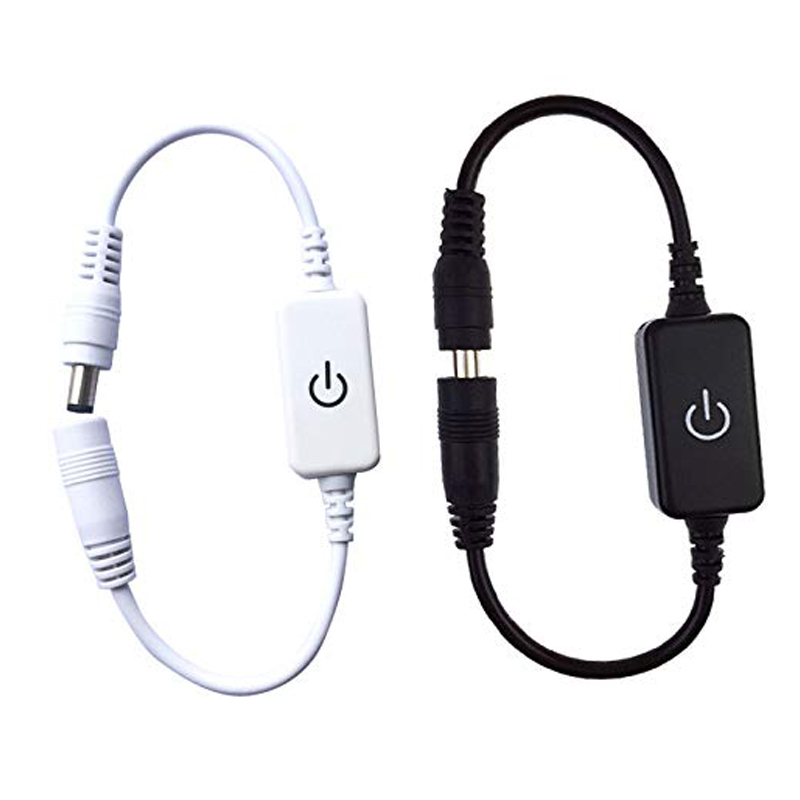

1x White/black Mini LED Dimmer Touch Switch
