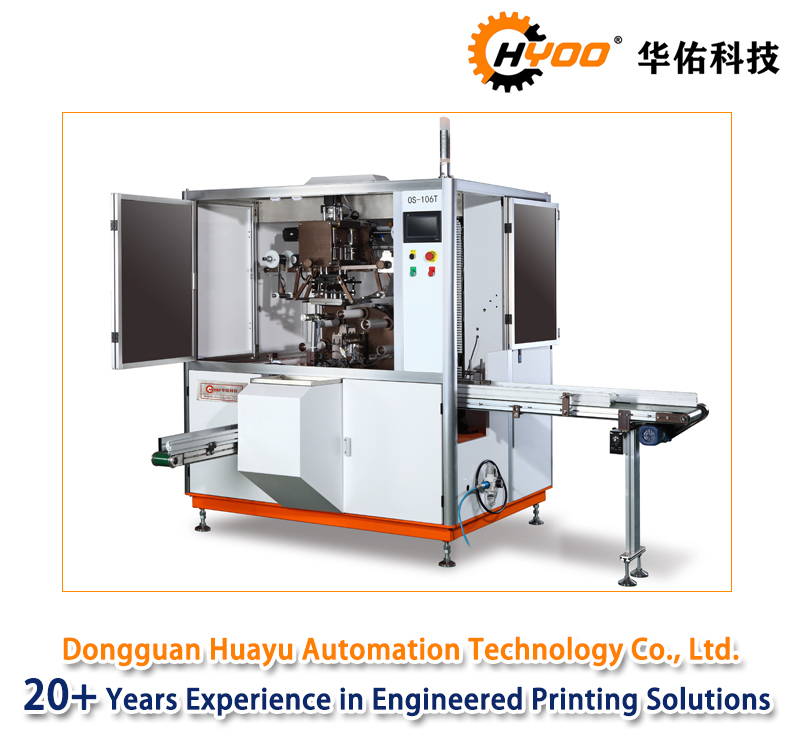

HYOO HY-106T: Automatic Round Hot Stamping Machine

FOB Price:	20000.00 - 50000.00 USD/Piece
Payment Terms:	L/C, D/A, D/P, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Quick Details

Printing Type: Screen Printing Machine
Use: For Heidelberg Printer
Type: Printing Screen
Brand Name: HYOO
Usage: Hot Stamping Machine
Model Number: HY-106T:

Specifications

Dongguan Huayu Automation Technology Co., Ltd. ---20 Years Experience in Engineered Printing Solutions

1.Brief Introduction:

the HY-106T is automatic hot stamping machine, is the latest developed by our company, which is mainly used for hot stamping of patterns and text on the surface of cylindrical plastic bottles, bottle caps and other rotating bodies. The head can be adjusted in angle and forward & backward displacement. Temperature, speed, hot stamping length, the force of paper delivery and feeding etc. Are adjustable.

2.Techincal parameters:

the automatic hot stamping machine is the automatic hot stamping equipment latest developed by our company, which is mainly used for hot stamping of patterns and text on the surface of cylindrical plastic bottles, bottle caps and other rotating bodies. The head can be adjusted in angle and forward & backward displacement. Temperature, speed, hot stamping length, the force of paper delivery and feeding etc. Are adjustable.

Suitable for hot stamping on: various round bottle caps, soft tubes (containers of cosmetics, medicine and food etc.).

the control system of the whole machine adopts Japanese OMRON PLC and touch screen, to ensure the machine to operate easily and run smoothly & reliably.

Fully automatic loading system and unloading manipulator device ensure the continuity and stability of printing, and avoid the scratches on the surface of the printing material as much as possible during the printing process, more ensure the safe operation of the operator.

Due to specialized electronic sensors, it achieves automatic monitoring functions such as "no object, no hot stamping", and automatic alarm when low air pressure or lack of gold foil etc.

"No object, no hot stamping" function can ensure the continuity and material-saving of the machine's high speed hot stamping.

the roll paper is controlled by servo motor. by setting the corresponding roll paper length to reduce the waste of gold foil; for hot stamping on small colored patterns, the paper length can be controlled quickly and accurately, thereby greatly increasing the speed of hot stamping.

3.Performance features:

Model NO.:	HY-106T
Print product size (DiameterxLength):	:10mm-40mm, H:20mm-150mm
Max. Print area:	40x100mm
Max. Printing speed:	50-60 pcs/min
Registration tolerance:	+/- 0.2mm
Drive:	Mechanical driven
Control system:	OMRON PLC & Touch Screen
Stations:	6 stations
Deionizing device:	1 unit
Print head:	1 unit
Motor:	ITALY SITI
Pneumatic parts:	Japan SMC
Photoelectric Sensor:	Japan Keyence
Frequency Converter:	Japan OMRON
Indexer	Japan SANKYO
Electrical Supply:	380V 3phase 50Hz
Air requirement:	6-8 bar
Power consumption:	3.2 KW
Machine Dimension (LxWxH):	2700x2100x2100mm
Weight:	1000 KG
