NNTR50X130X65-2ZL Track Rollers Yoke Type

FOB Price:	5.00 - 50.00 USD/Piece
Supply Ability:	1,000 Piece(s) per Month
Shipping:	FOB SHANGHAI
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	Eastern Europe, Southeast Asia, Western Europe
Packaging Details:	Export standard plywood case

Quick Details

Type: Roller
Structure: Other Structure
Seals Type: Snap Ring
Precision Rating: P0
Outside Diameter: 130-310 mm
Bore Size: 50-130 mm
Brand Name: LYSYM
Number of Row: Double Row
Model Number: NNTR
Material: GCr15

Specifications

LYSYM Yoke Type Track Rollers NNTR Series

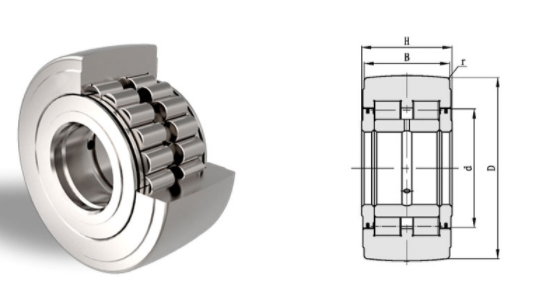

the internal design layout of the non-separable NNTR-2ZL type support rollers similar to that of double row cylindrical roller bearings.

since the outer ring has three fixed lips these support rollers can accept high thrust loads.

the loose ribs on the inner rings are retained by incorporated lamellar rings which also act as labyrinth seal.

these lamellar ring seals act as efficient sealing system against harsh environment, i.e. under presence of dust and scale.

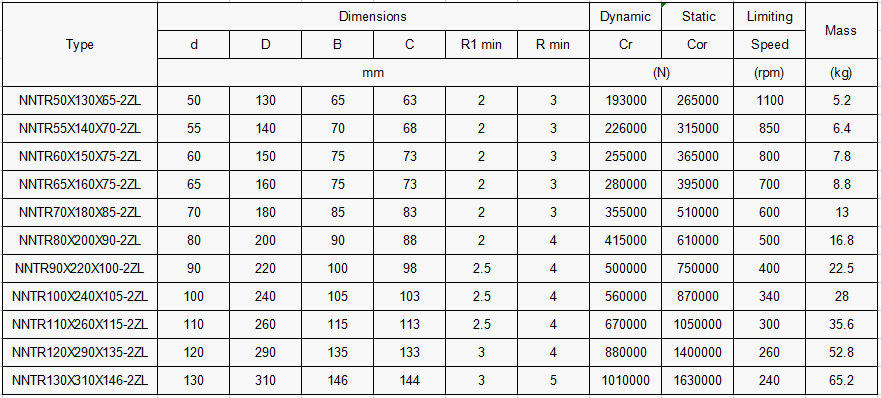

Track Rollers NNTR Model for Choice:
NNTR50X130X65-2ZL
NNTR55X140X70-2ZL
NNTR60X150X75-2ZL
NNTR65X160X75-2ZL
NNTR70X180X85-2ZL
NNTR80X200X90-2ZL
NNTR90X220X100-2ZL
NNTR100X240X105-2ZL
NNTR110X260X115-2ZL
NNTR120X290X135-2ZL
NNTR130X310X146-2ZL

NNTR50X130X652ZL Track Rollers Yoke Type

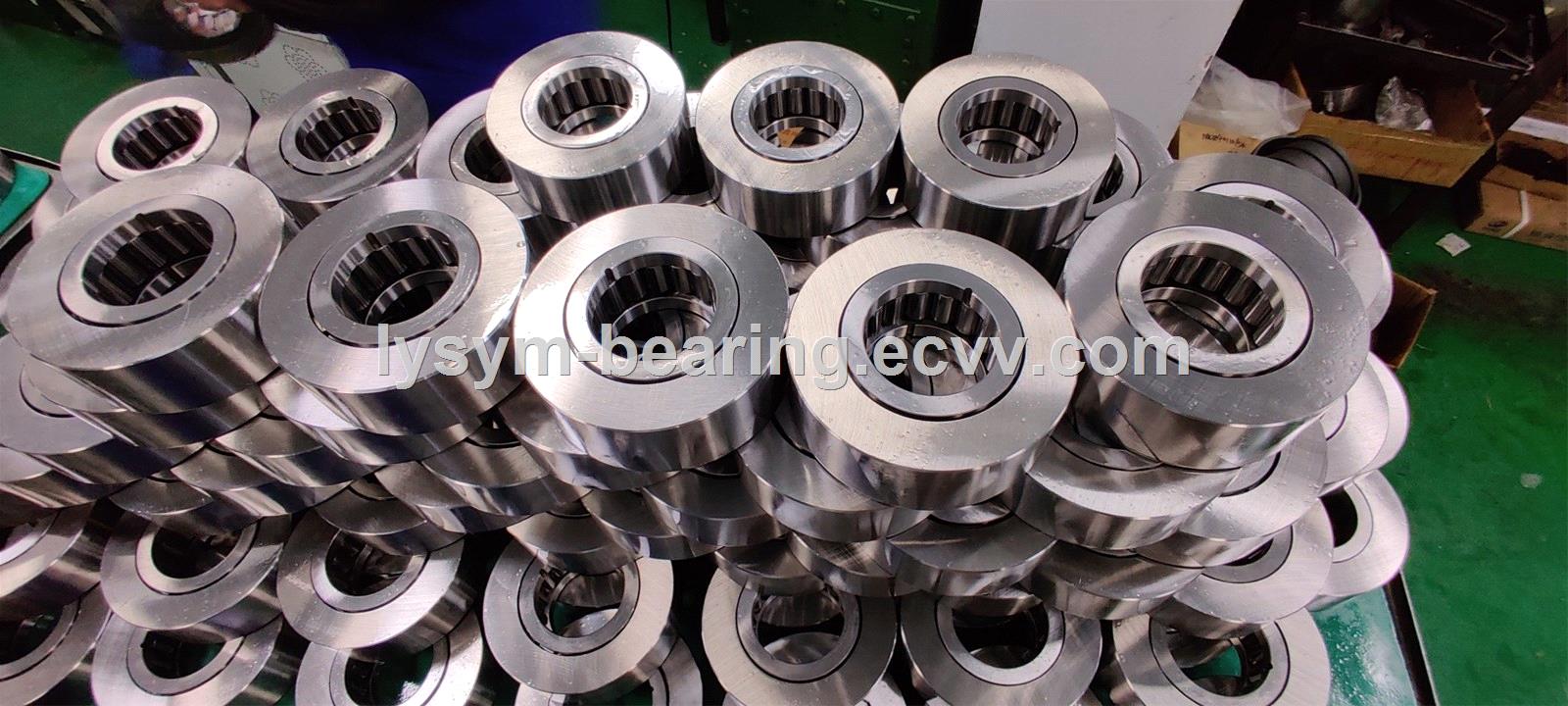

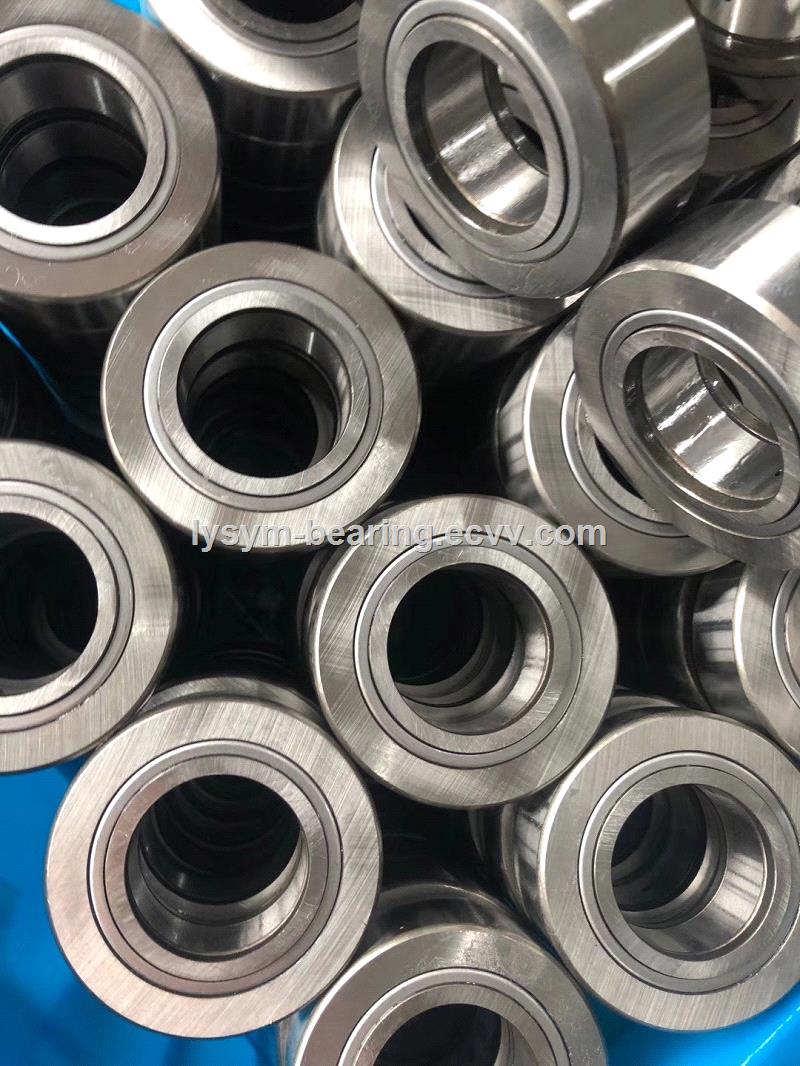

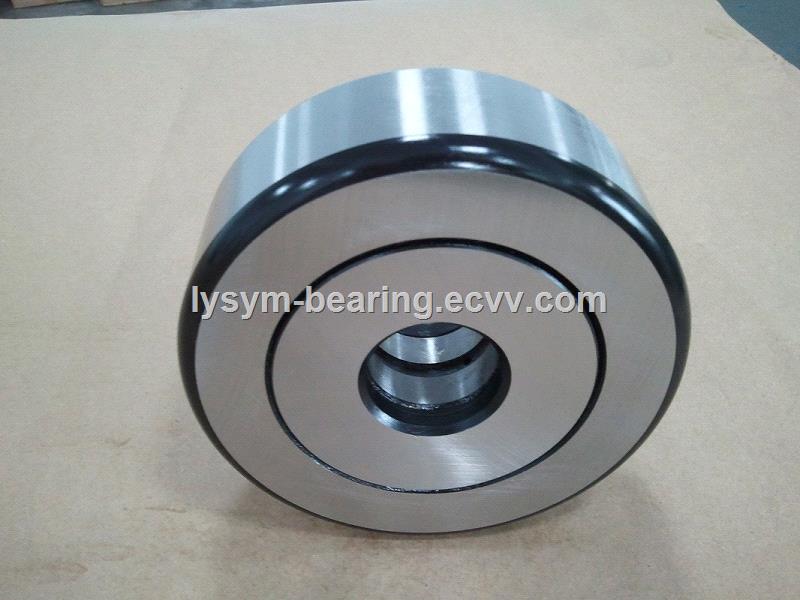

Yoke Type Track Rollers Photos for you:
