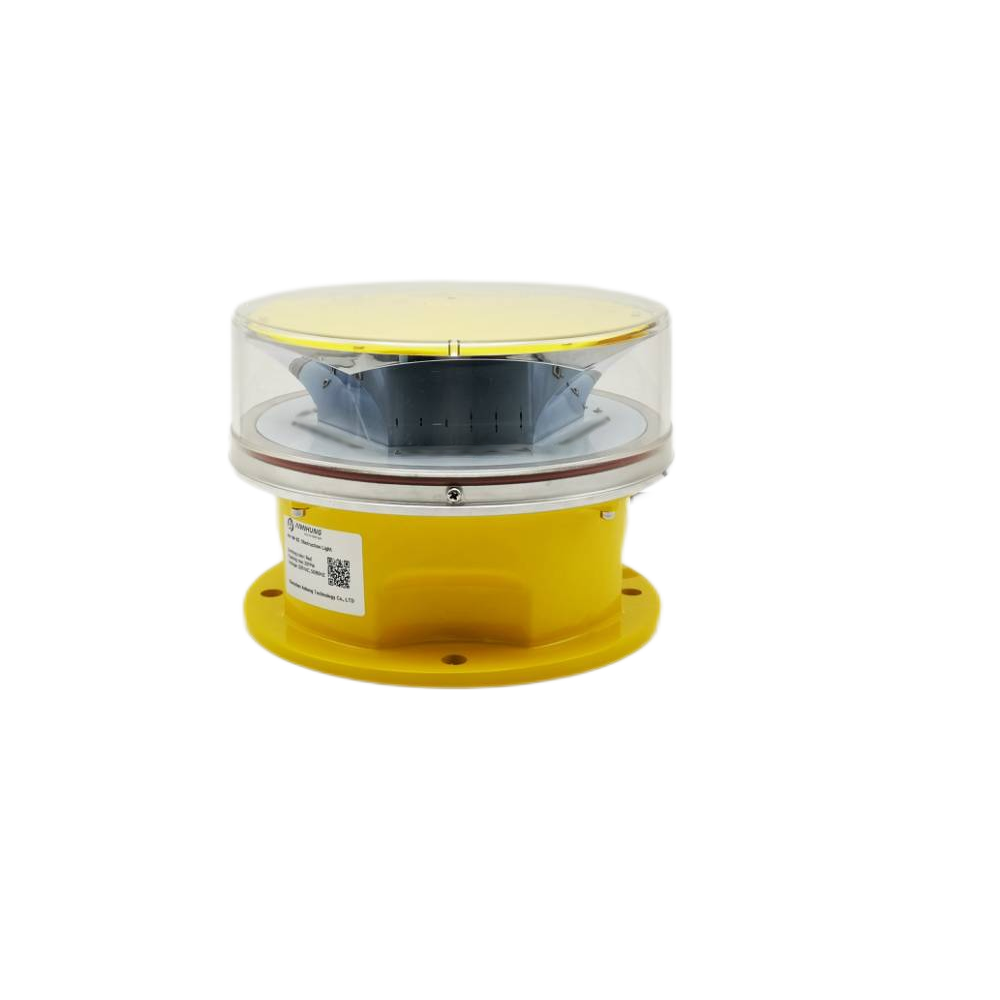

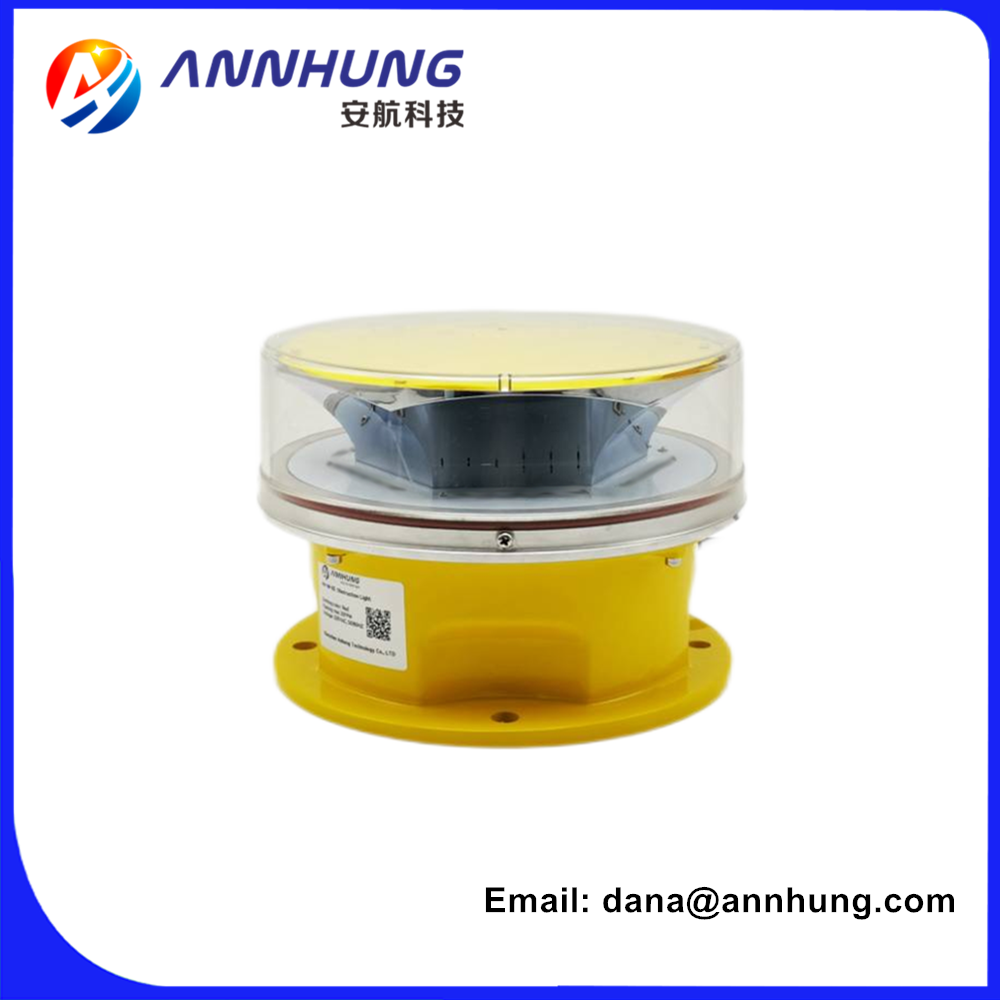

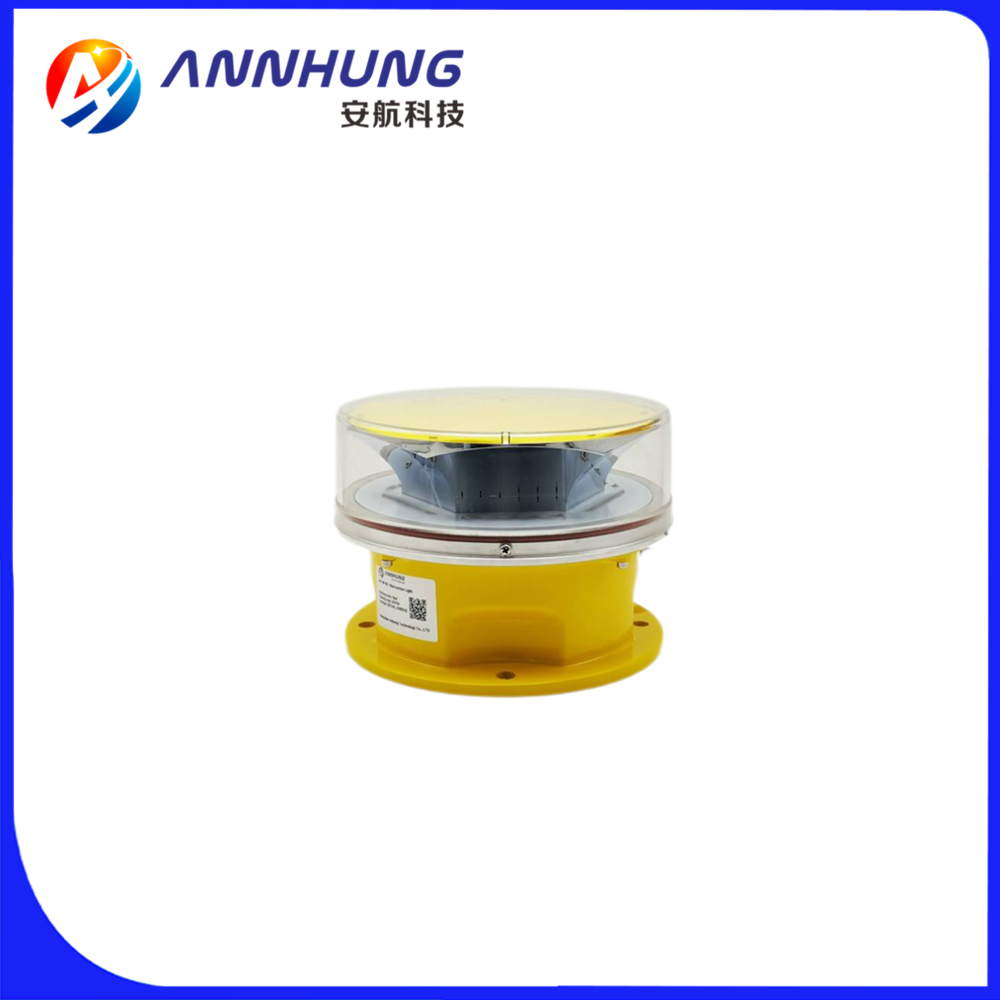

LED Medium-Intensity Type A L865 Aviation Obstruction Light

FOB Price:	399.00 - 499.00 USD/Piece
Supply Ability:	2,000 Piece(s) per Month
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Quick Details

Type: Aviation Obstruction Lights
Brand Name: ANNHUNG
Light Source: LED
Emitting Color: White
IP Rating: IP66
Type: Medium-intensity
Model Number: AH-MI-A2

Specifications

Compliance

ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type A Obstruction Light

FAA L-865

CAAC MH6012-2015 Aviation obstruction light, MH 50012013 Aerodrome technical standards

Features

Electrical

CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp

Power supply available in DC(12V, 24V, 48V) or AC(110-240VAC) Physical

Unique design and UV protected polycarbonate reflector for converging light

UV protection Powder coated bright yellow color base make better visibility

Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection

System design

Built-in photocell for day/night operation(dusk to dawn operation)

Surge and lightning protection

GPS devide inside for flashing synchronously

Optional

Dry contact Alarm output for remote monitoring

Infrared LED for pilot using NVG

IOT Monitoring

Application

AH-MI-A2 medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 105-150meter, and most time work with low /medium intensity lights installed on the lower place.

Description	Parameter
Light Source	CREE high intensity LED
Horizontal Output(degrees)	360
LED Life Experience(hours)	>100,000
Operating Voltage	DC(12V, 48VDC) or AC(110-240VAC) or others
Instantaneous power(W)	600
Average Power(W)	≤13W(20fpm)
Circuit Protection	Integrated
Body Material	UV protected Polycarbonate
Base Material	Powder-coated Die-casting aluminum
Weight(kg)	3.5
Humidity	10%-95%RH(No condensation)
Wind Speed	240Km/h
Waterproof	IP66
FAA	L-865

LED Mediumintensity Type A L865 Aviation Obstruction Light
