Chongqing MIngzhu Single Screw Pump

FOB Price:	2000.00 - 50000.00 USD/Set
Supply Ability:	100 Unit(s) per Week
Shipping:	Sea Shipping
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Chongqing in China
Packaging Details:	wooden case

Quick Details

Pump Parts & Accessries: Pump shaft
Standard or Nonstandard: Nonstandard
Brand Name: CSP
Pump Parts & Accessries: Pump Parts & Accessries
qqq: qqq
Specifications: Specifications
Flow: 0.2 - 1080M3/h
Lift: 10 - 2000M
Max Self-Priming Height: 8.5M
Temp Range: -100 - 550 Celcius
Max Solid Allowed: 85%
Max Fiber Length: 260mm
Max Particle Diameter: 30mm
Adaptive Viscosity: 0.5M2/S
Outlet Pressure: 0 - 20 MPa

Specifications

Chongqing Mingzhu Single Screw Pump

Main Parameter:

Flow: 0.2 - 1080m3/h Adaptive Temperature: -100 - 550℃
Lift: 10 - 2000m Max Allowable Solid Content: 85%
Allowable Particle Size: 30mm
Max Adaptive Viscosity: 0.5m2/s Max Allowable Fiber Length: 260mm

Main Features:
- Strong wear resistance (adjustable structure).
- No leakage, energy saving.
- It is suitable for conveying all kinds of medium with fluidity, non-fluidity, high viscosity, high concentration, strong corrosion, strong solubility and strong wear.
- Strong self-priming capacity, small vibration, low noise, constant reverse performance, long service life.
- It can be used in petroleum, chemical industry, environmental protection, medicine, brewing and other industries.

Product Introduction:
the Progressive Cavity Pump belongs to the rotor type positive displacement
Pump. It conveys liquid depending on the meshing of the screw and the bush
to make the volume change in the suction cavity and the discharge cavity. It is
A closed pump with internal engagement. Its main working parts are: a double
Screw cavity sleeve (stator) and a single screw (rotor) with engagement in the
Stator cavity. When the input shaft drives the rotor through the universal joint
to rotate around the center of the stator as a planet, the stator rotor pair will
Continuously mesh to form a sealed cavity, and the volume of these sealed
Cavities will make an axial motion, and the medium will be transported from
the suction end to the extrusion end.

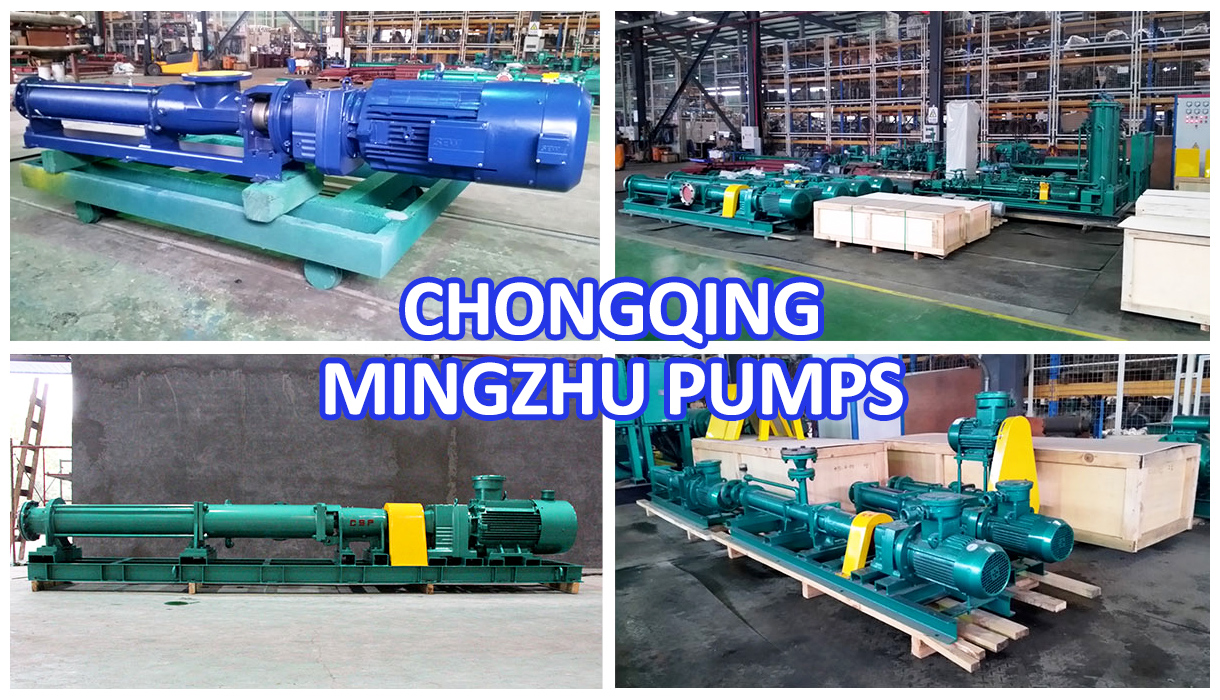

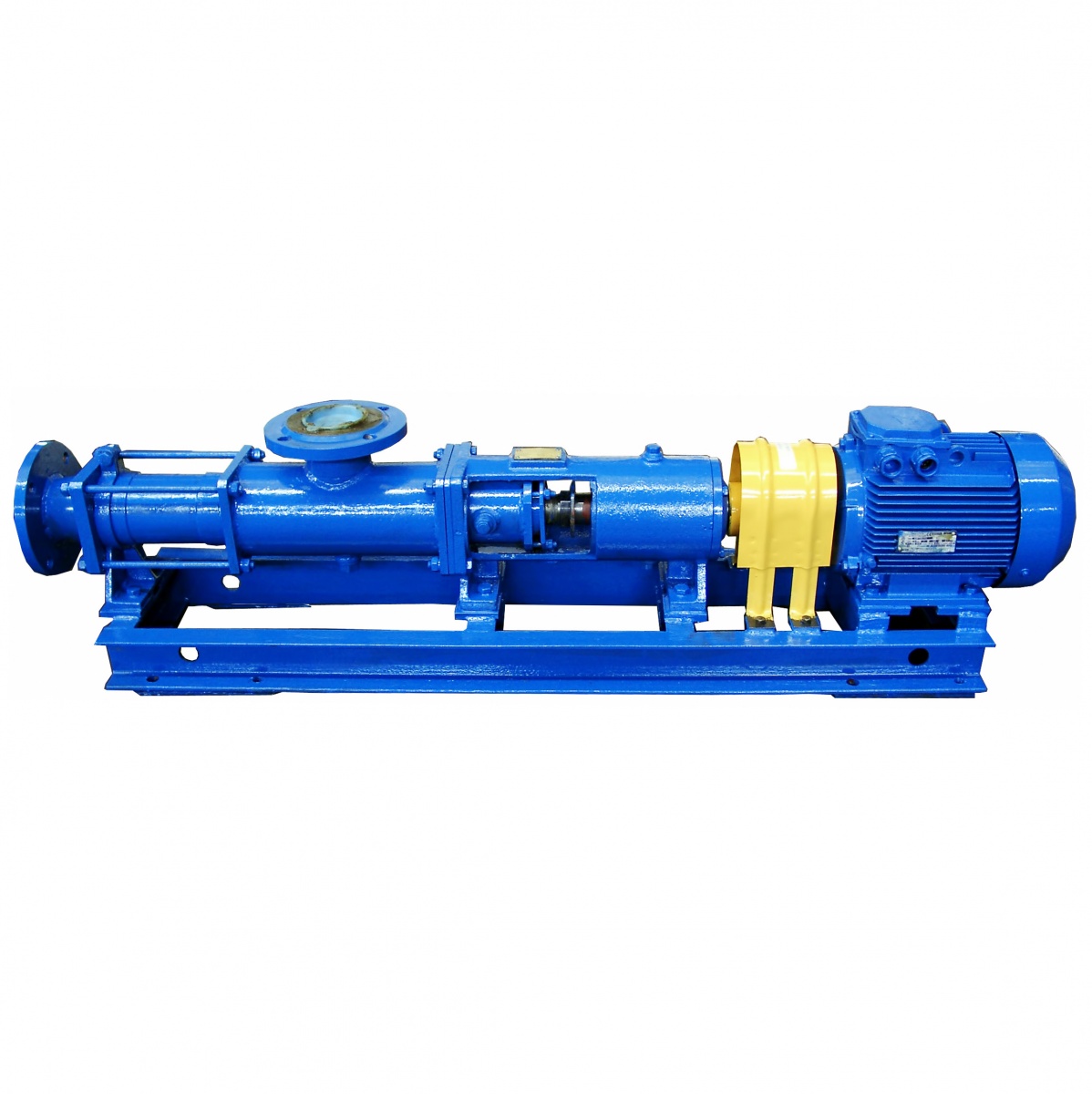

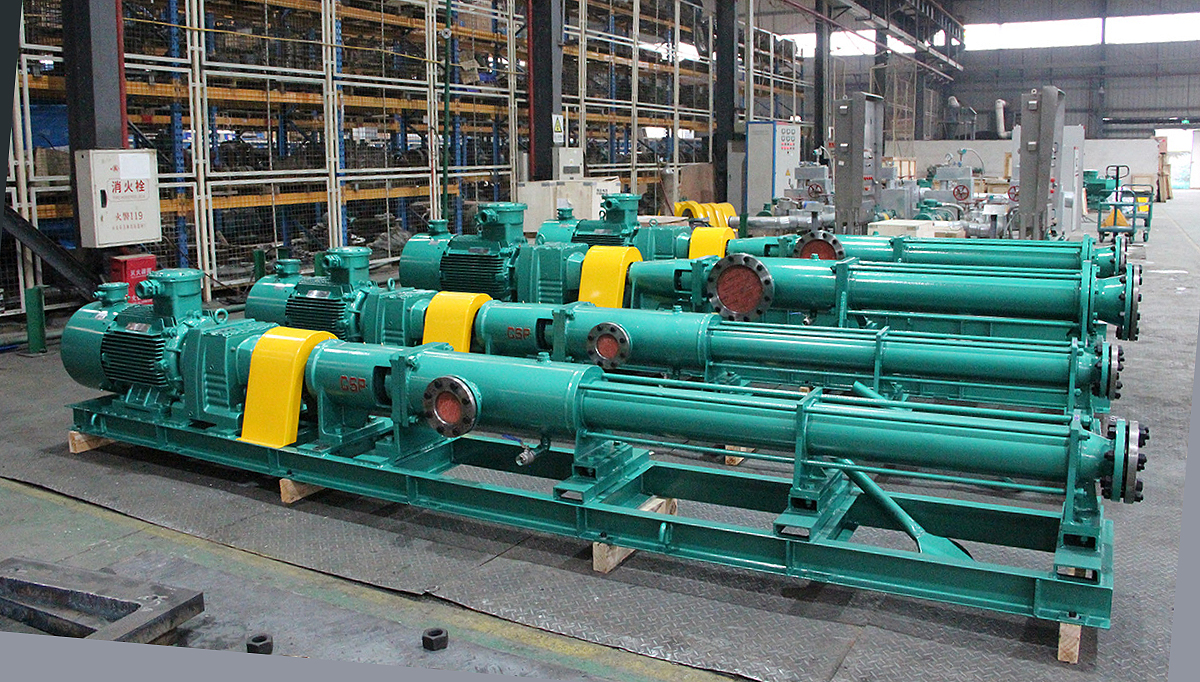

Product Images:
Chongqing MIngzhu Single Screw Pump
