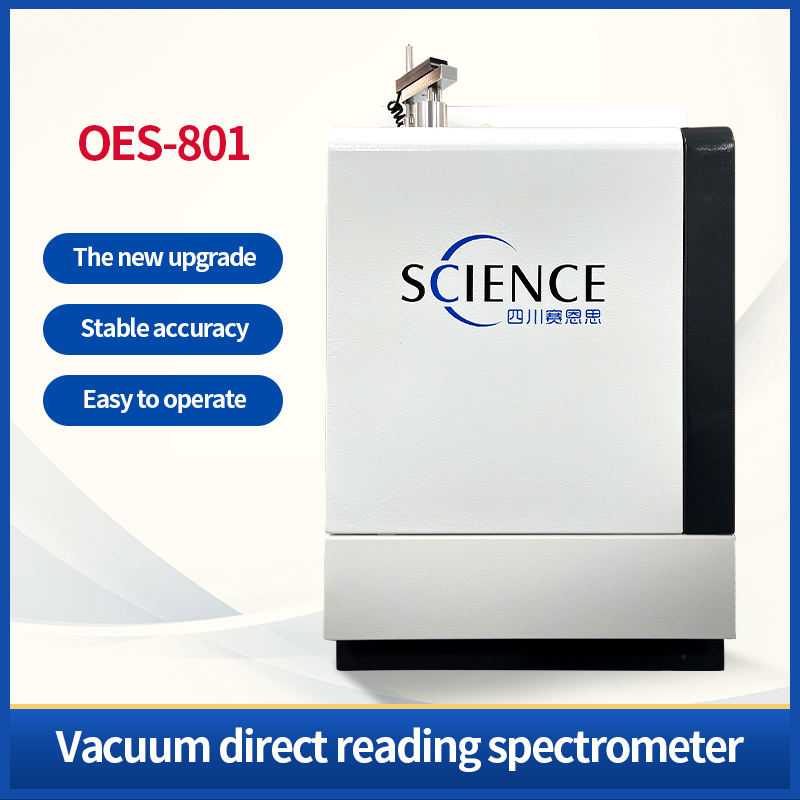

OES-801 CCD Optical Emission Spectrometer

Specifications

Main Advantages:Data Accuracy - the core accessories are all imported: holographic diffraction curved grating, multiple high-pixel CCDs form an array optical system, and the spectral line imaging quality is good, ensuring the best sensitivity and maximum resolution.

Fast analysisHEPS high-energy pre-combustion spark light source, unique "jet electrode" technology, for different analysis materials, the excitation intensity, pre-combustion and exposure time can be set, so that the instrument can achieve the best analysis effect in the shortest time. Elemental composition of all channels can be measured within 20 seconds.

Wide range of applications - the open spark table is used for sample analysis of complex shapes, with small sample fixtures, large and small samples can be handled, simple maintenance and convenient operation.

Intelligent constant temperature system - up to 15mm thick - integrated cast aluminum vacuum light chamber, built-in automatic constant temperature system, to avoid the pixel shift of components caused by thermal expansion and cold contraction, and ensure the stability of the light chamber.

Easy to use - self-developed and designed analysis and testing software, simple operation interface, automatic real-time monitoring of the operating conditions of the optical chamber temperature, vacuum degree, argon pressure and other modules, easy to operate. No pollution, no radiation!

the optical system automatically scans the spectral lines to ensure the correctness of the collected information and avoid the tedious peak scanning work. the instrument automatically recognizes specific spectral line differences and automatically corrects them with one click!

Worry-free after-sales: long warranty + gold service + convenient upgrade, you can upgrade the equipment at any time according to the work needs.

Technical details:Application areas: various analysis in metallurgy, foundry, machinery, scientific research, commodity inspection, automobile, petrochemical, shipbuilding, electric power, aviation, nuclear power, metal and non-ferrous smelting, processing and recycling industries

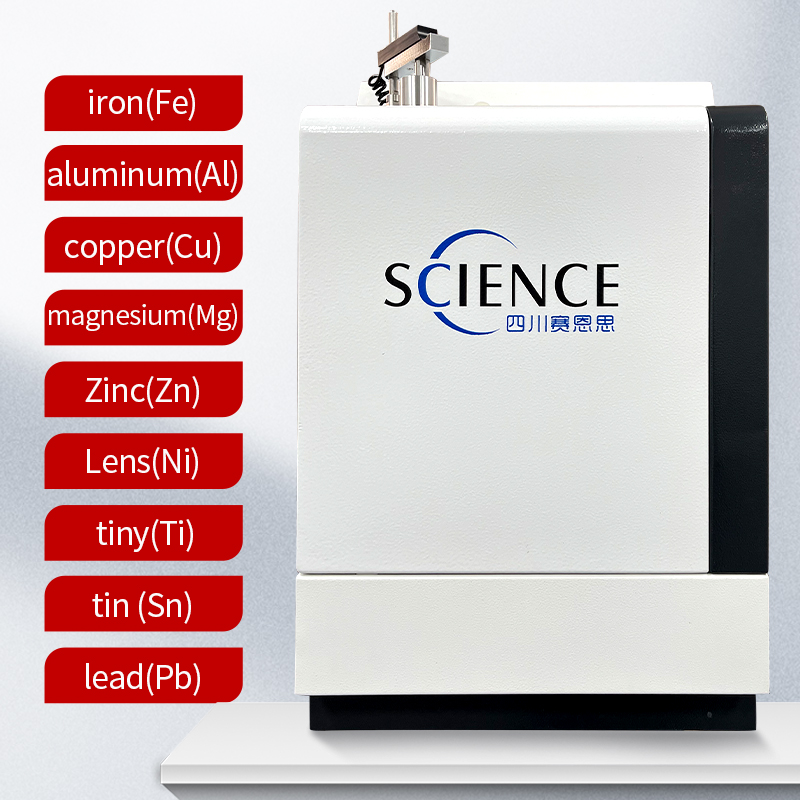

Detectable substrates: Fe, Al, Cu, Mg, Zn, Ni, Ti, Sn, Pb, etc.

Optical system: Paschen-Longe-Roland circle full-spectrum vacuum type optical system

Detection wavelength range: 130-800nm

Roland circle radius: 500mm

Dispersion grating: high performance holographic diffraction grating, scale 2700/mm

Detector: High performance CCD array (single block up to 3648 pixels, maximum 58368 pixels)

Light source type: digital light source, high energy pre-combustion technology (HEPS)

Discharge frequency: 100-1000HZ

Discharge current: 1-100A plasma current

Ambient temperature: external 10-30°C (internal thermostatic control 34°C)

Detection time: generally about 20s

Electrode Type: Tungsten Electrode Spray Electrode

Working power: AC220V (±10%), 50/60HZ, 10A, 1.0KVA

Other functions: software automatically controls vacuum monitoring, internal temperature monitoring, communication detection

Instrument size: L930*W400*H630mm

Instrument weight: about 80Kg

Our Factory:Building 39, Jiuwei Blue Valley Industrial Park, No. 66 Nanhu Road, Deyang City, Sichuan Province

Certificates:

Our Service:Sichuan Saiensi Instrument Co., Ltd. Has strong technical service strength, and has high-quality engineer teams in Chengdu, Deyang and other places. We provide various pre-sales and after-sales services for the instruments and equipment we sell. Services include: product design, product sales, installation services, product extended warranty services, product maintenance services, product use training services, technical remote support services, sample appointment testing services, and guarantee the provision of corresponding repair parts.
If you need us to provide relevant pre-sales and after-sales service, or need to know the details of our company's pre-sales and after-sales service, charging standards, etc., please call the company's service hotline 0838-2695 566 / 2695 588 158 8342 8863, our service staff meeting
Respond as soon as possible after receiving your request.

FAQ:(1)Effects of Carbon and Sulfur Content on Steel Properties?
    Carbon is the main element next to iron, which directly affects the strength, plasticity, toughness and weldability of steel. When the carbon content in the steel is below 0.8%, the strength and hardness of the steel increase as the carbon content increases, while the ductility and toughness decrease; but when the carbon content is above 1.0%, as the carbon content increases increase, the strength of the steel decreases.
Sulfur comes from ore and fuel coke for steelmaking. It is a harmful element in steel. Sulfur exists in steel in the form of iron sulfide (FeS), and FeS and Fe form a low melting point (985°C) compound. the hot working temperature of steel is generally above 1150-1200 °C, so when the steel is hot worked, the workpiece is cracked due to the premature melting of the FeS compound, a phenomenon called "hot embrittlement". this in turn reduces the ductility and toughness of the steel, causing cracks during forging and rolling. In addition, sulfur also has a detrimental effect on weldability, it also reduces the corrosion resistance of the steel. Therefore, different grades of steel materials have corresponding content requirements for sulfur, such as high-quality steel: S<0.02%-0.03%; high-quality steel: S<0.03%-0.045%; ordinary steel: S<0.055%-0.7% the following.
