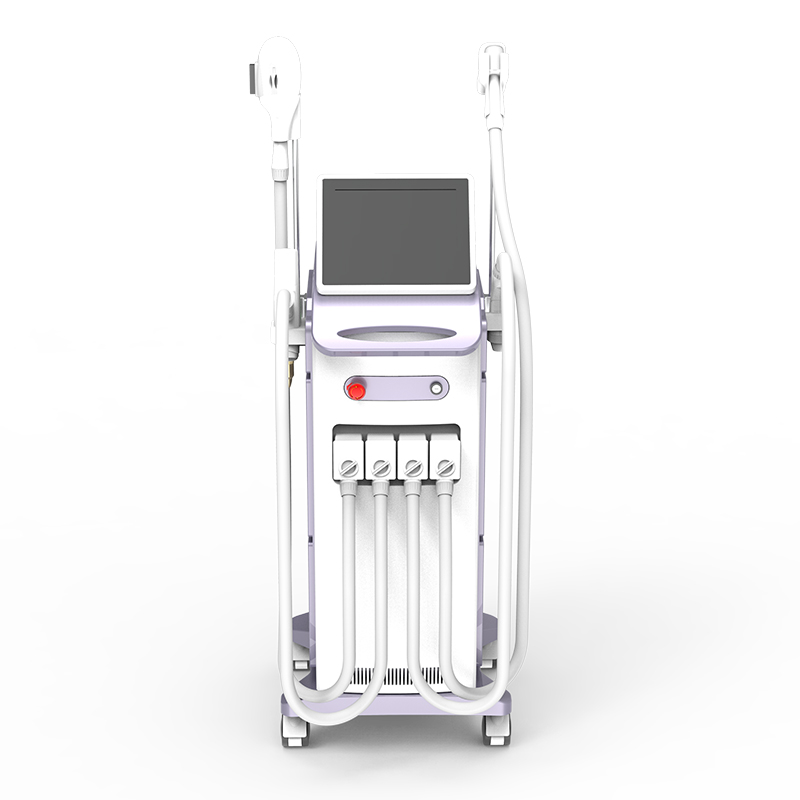

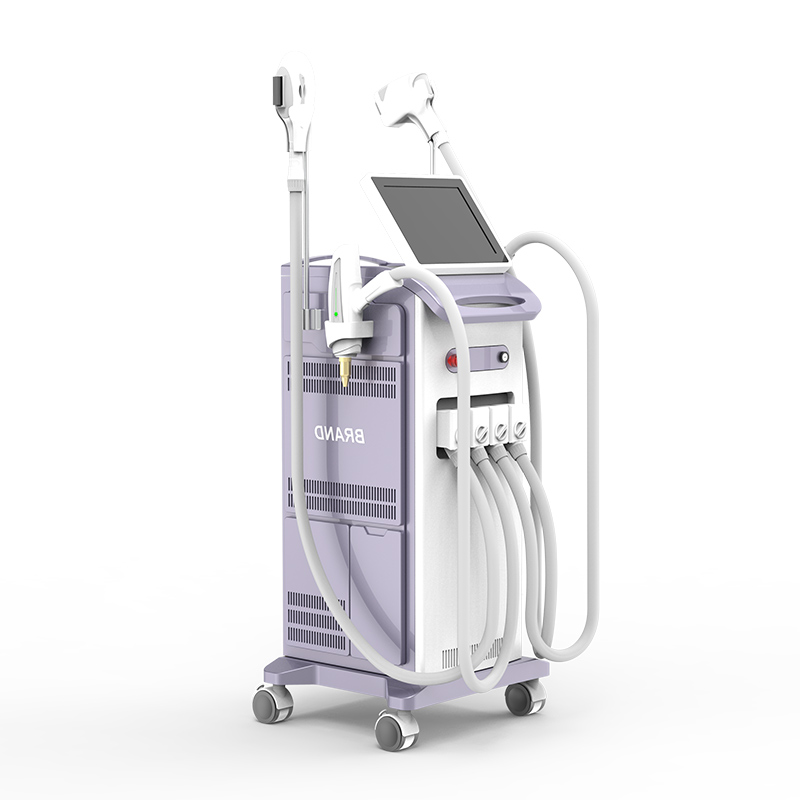

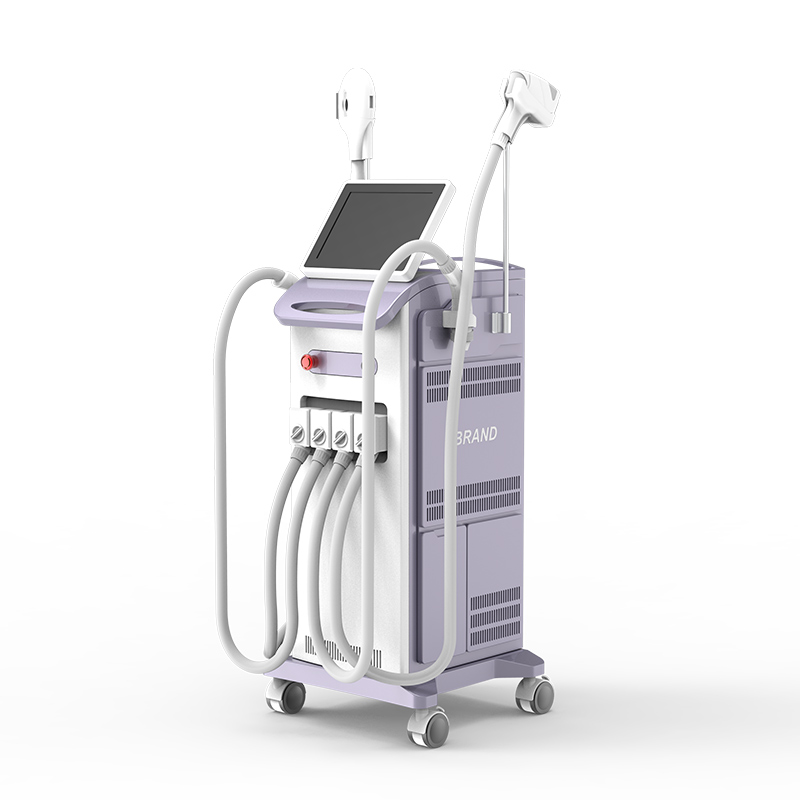

Multi-Function Diode Laser / IPL Opt e-Light / Q Switch Nd Yag Laser + RF Radio Frequency Beauty Machine

FOB Price:	5000.00 - 8000.00 USD/Set
Supply Ability:	200 Set(s) per Month
Shipping:	DHL
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Beijing in China
Packaging Details:	aluminum box

Quick Details

Type: Multi-Function Beauty Equipment
Brand Name: QM Medical
Certification: CE
Type: Facial Massager,IPL,RF
Application: hair removal
Function: hair removal
Model Number: QM-230+

Specifications

QM-230+

Applications

- Laser hair removal-Acne treatment -

- Photo rejuvenation -

- Skin whitening -

- Spider vein treatment -

- Pigmentation treatment -

- Tattoo removal -

- Carbon peeling -

- Wrinkle removal -

- Body lifting -

Specialty of QM-230+

Independent power supply for each system. this well ensures each system Has strong and stable energy.Inside structure is very reasonable and every line Is clear. All the spare parts are fixed to metal shelf.

* 3000W Power supply for diode laser system
* 2000W power supply for E-light (IPL SHR E-light) system
* 500W power supply for ND yag laser system
* 100W power supply for RF sy

Spare parts we use

* UK lamp, US laser bars
* 8L big water tank with water level monitor
* 2 Korea imported water filters
* Schneider brand switch
* 4 Japan imported big fans + 2 big radiator
* Latest brushless DC water pump with lift 15m
* Pulse water switch to monitor water flow
* Stainless steel board between connector and internal stem

Technical Specification

Specification	Diode Laser	E-light IPL SHR OPT	Nd: Yag Laser	RF
Power supply	2000W	2000W	500W	/
Laser power	500w-800w	/	15W	/
Energy/max	1-166J/cm2	1-50J/cm2	1000mJ	1-100W
Wavelength	808nm or Mixed Wavelengths	480/530/590/640/690nm	532/1064/1320nm	/
Spot size	15*15mm	1550mm(1230mm optional)	6mm	20/28/35mm
Pulse duration	10-400ms	1-12ms	10ns-20ns	/
Pulse interval	/	/	/	0-3000ms
Frequency	1-10Hz
Cooling Level	1-5 level
Cooling System	Air + Water + Wind + TEC + Sapphire sking contact Cooling
Operation	10" TFT True Color Touch Screen
Electrical input	90-130V, 50/60HZ or 200-260V, 50HZ
