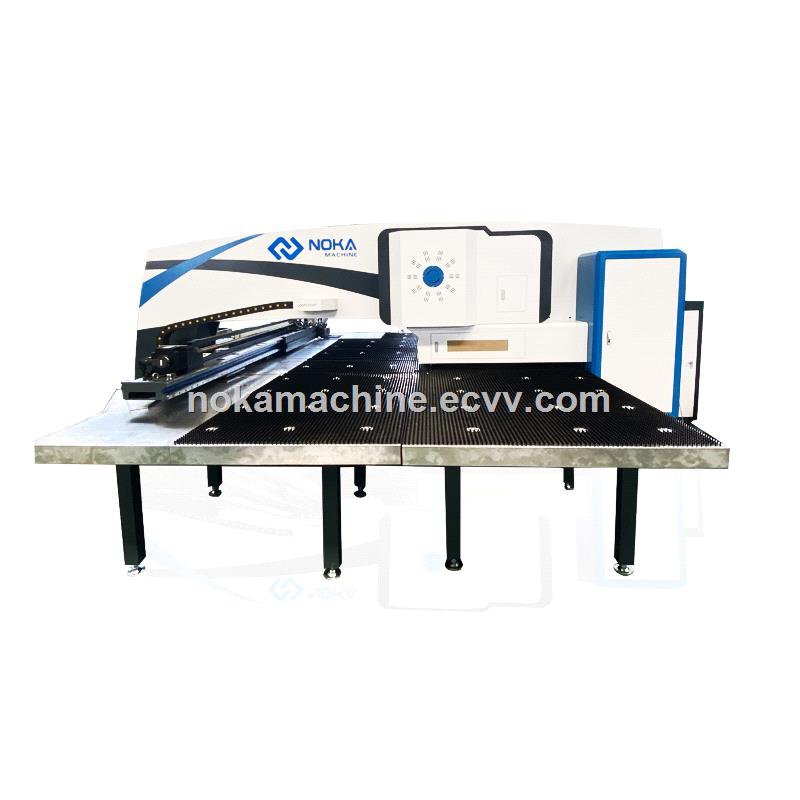

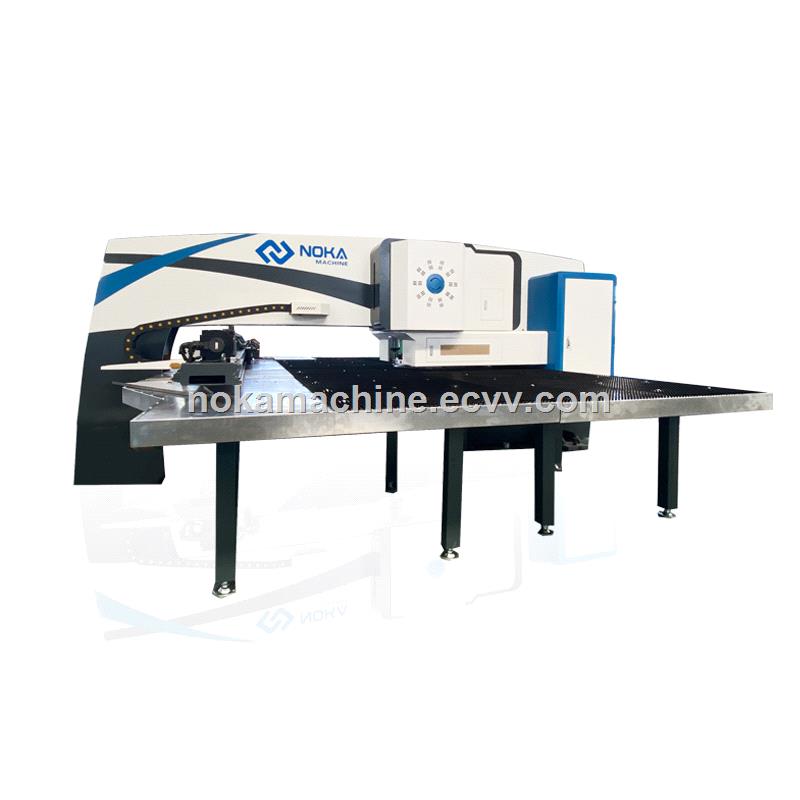

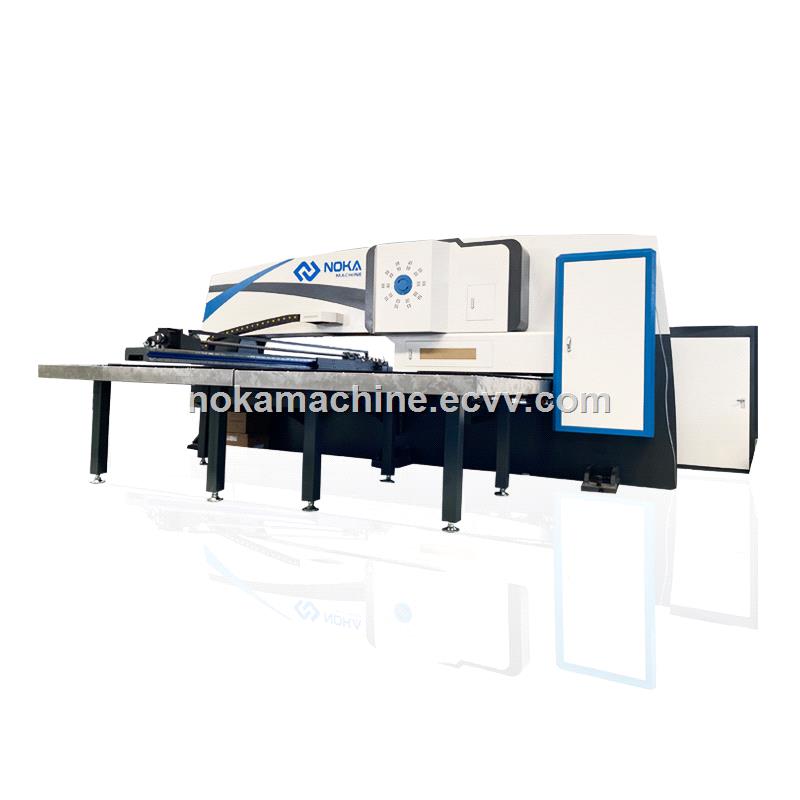

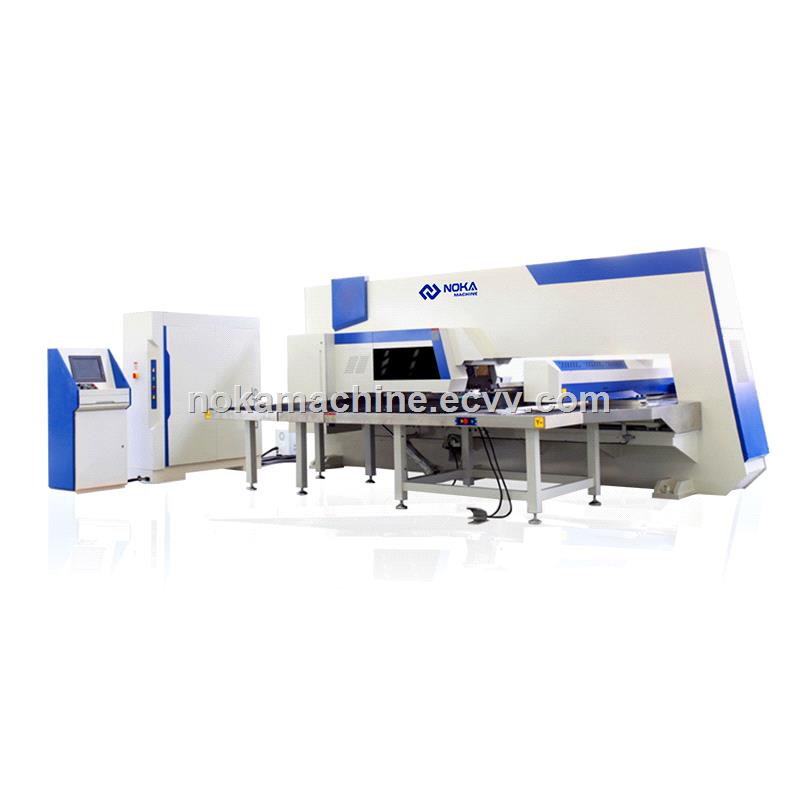

NOKA CNC Turret Punching Machine/Automatic Hole Punching Machine/CNC Punch Hydraulic Press Price

FOB Price:	50000.00 - 90000.00 USD/Set
Supply Ability:	30 Set(s) per Month
Shipping:	Before the machine is shipped, the mould will be coated with antirust oil. Special and effective pac
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Anhui in China
Packaging Details:	The normal package is wooden box. If export to european countries,the wooden box will be fumigated.All the spare parts of the machine were covered by some soft materials.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Brand Name: NOKA
Power Source: Hydraulic
CNC or Not: CNC
Condition: New
Warranty: 12 months
Certification: ISO
Dimension(L*W*H): 5000x5000x2100mm
Weight: 16T
Power(W): 15.5KW
Voltage: 380V

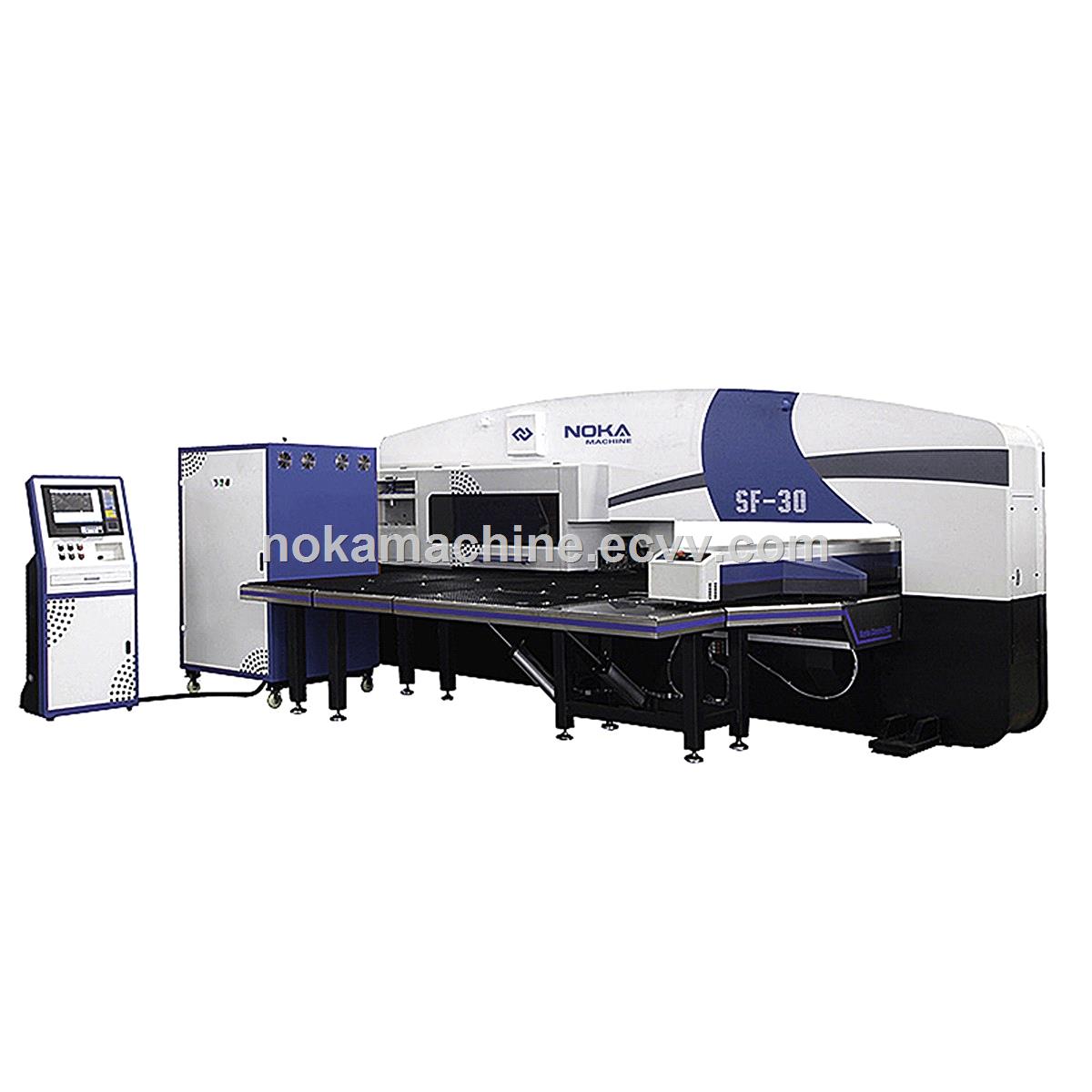

Model Number: SF-30
CNC or Not: CNC
Workbench area: 1250x2500mm
process thickness: 6.35mm
Nominal force: 300KN
Condition: New
colour: White blue
Processing speed: 1200 time/min
Maximum diameter of one punch: 88.9 mm
Maximum load weight: 150KG
Turret station: 32

Specifications

Product Application

NOKA high-efficient turret punch presses are produced as a closed type rigit Steel construction into a rigit structure, the structure is exquisite, the reliability is high, and the use is convenient. under the premise of retaining the main structure of the original turret punching machine, the visual inspection technology is used to conveniently detect the wear condition of the mold, and the mold can be quickly changed after the test, and has a pole. High degree of automation. NOKA turret punch presses has 2 models with 24 station/700 stroke and with 32 station/900 stroke which helps to finish all the work at onces even on very complicated sheet products. so NOKA turret punch presses provides a complete solution with optimum cost.


High precious positioning possibility with linear sledge system on all axis
Multi head Plazma and multi head oxy fuel cutting possibilities
Platform type on bridge side or Portable CNC control panel
CNC control outputs/inputs for vacum table & filtering unit
High vacuming capability with lower energy consaption
Independent cutting table system
Siemens AC servo motors on all axis
+/- 0.01 mm positioning accuracy
+/- 35m/min positioning speed

Name	Parameter	Unit	Remarks
Punching pressure	300(30)	KN(T)
Rack structure	O closed- type servo drive	mm	Electric furnace tempering
Maximum processing sheet size	X-axis 2500 Y-axis 1250	mm	Secondary positioning can process 5000mm
Maximum processing sheet thickness	6	mm
Maximum diameter of one punch	Φ88.9	mm	Non-standard
Highest punching frequency	800	Times/min
the number of control axis	5(X,Y,Z,T,C)	PCs
Form of mold	Long guide 85 series international standard mold
Turret station distribution	A,B,C,D	Standard	Non-standard
Processing life of mold	500,000	Times
Repositioning cylinder	2	set
Maximum feeding speed	X-axis 80 Y-axis 80	M/min
Workbench structure	Seamless brush / Universal steel ball table		Stainless steel edging
Maximum turret speed	40	rpm
Re- positioning accuracy	±0.02	mm
Maximum load weight	150	Kg
Maximum output power	16	KW
Air pressure	0.55	MPa
Voltage	380±5%	V
Overall dimension	Length width height 500050002100	mm
