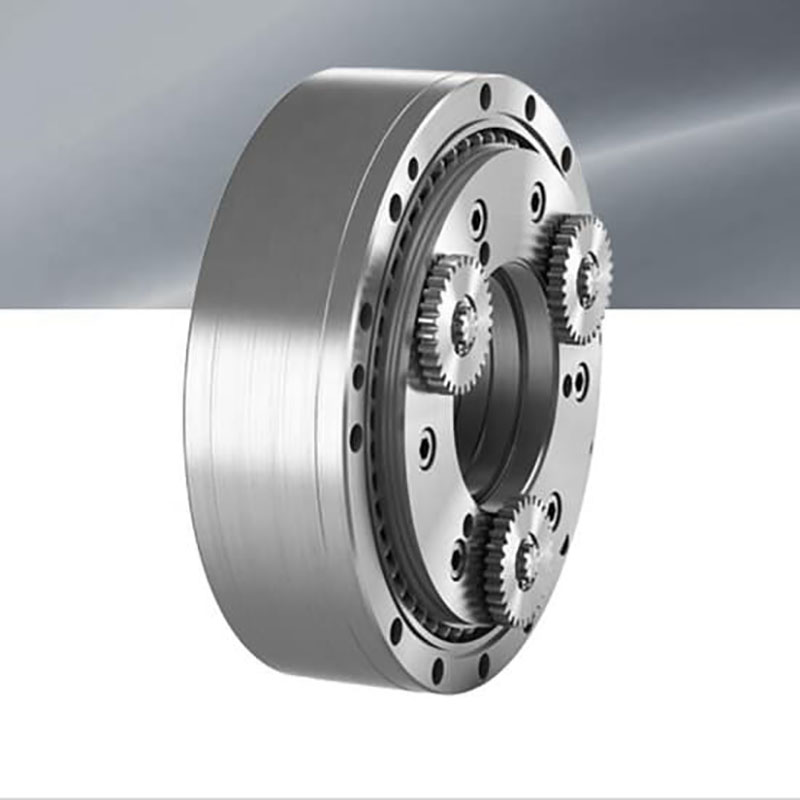

RV Robot Cycloidal Gear Reducer Drive Planetary Gearbox 70r/Min
| FOB Price: | 300.00 - 400.00 USD/Piece |
|---|
Related products from verified members
Quick Details
- Brand Name: Genius Robotics Zhenkang
- Output Speed: 81
- Input Speed: 80
- Output Torque: 600Nm
- Gearing Arrangement: Cycloidal
Specifications

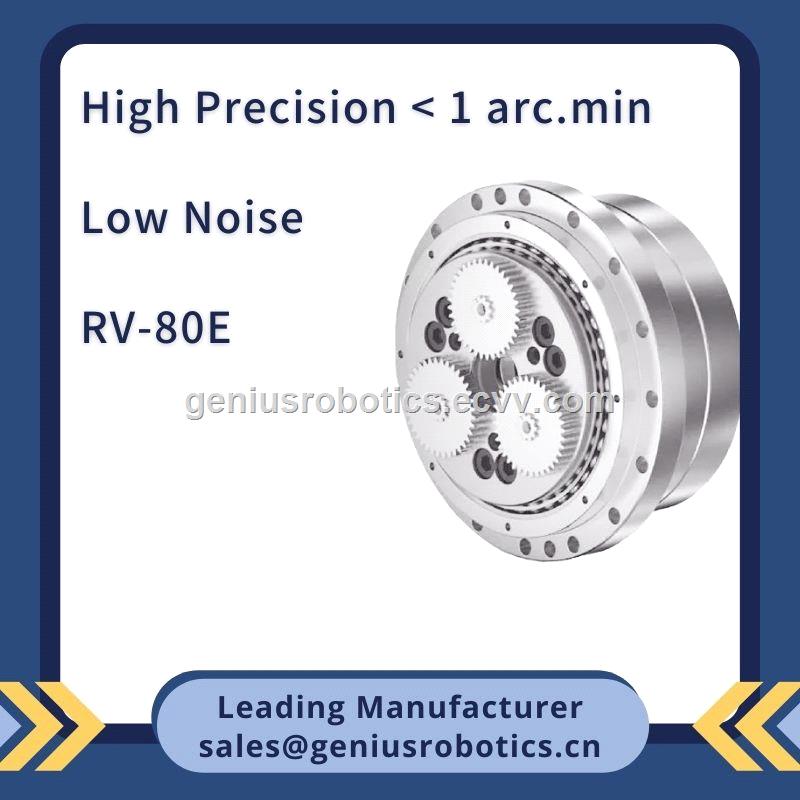

the RV reducer is a kind of reduction gearbox that centers with the flat specially designed for accurate motion control. and cycloidal pinwheel is the key component of RV reducer. these robotic gearboxes are featured of compact body, light weight and high rigidity which is strong enough to be against overloading situations. It features of free backlash, micro rotating vibration and low inertia to guarantee the rapid acceleration, ultra precise positioning and smooth movement. The precision gear RV series is an ideal speed reducer specially for precision mechanical control in the fields of machine tools, factory robots, assembly equipment, conveying machines and other related fields that need precise positioning, high rigidity and shock-load capacity.
RV reducers are with long service life and high reliability.
Robot reducers use integrated angular support bearings to guarantee the high performance during operation.
the use of rolling contact elements throughout the RV reducer makes fully continuous contact
the excellent 2-Stage reduction mechanism to ensure high ratio and high torque.
All the RV reducers are featured with backlash of be less than 1 arc-min.
RVGear Reducer RV - 40E technical Parameters
Operating parameter
Operating parameter
| Output Rotational speed R/min |
5 |
15 | 25 | 35 | ||||
| Output torque | Input capacity | Output torque | Input capacity | Output torque | Input capacity | Output torque | Input capacity | |
| Model | Nm | kW | Nm | kW | Nm | kW | Nm | kW |
| 40E | 560 | 0.40 | 400 | 0.88 | 355 | 1.20 | 330 | 1.52 |
Note: the rated torque is the output torque when the output speed is at 15 r / min.
Performance Parameter
| Model | Speed ratio | Allowable output speed | Maximum backlash | Allowable acceleration/decleration torque | Momentary max allowable torque | Allowable moment | Momentary max allowable movement | Weight | Efficiency | Noise | |
| 40E | Shaft(R) | Housin | r/min | Arc.Min | Nm | Nm | Nm | Nm | kg | % | dB |
| 81 | 80 | 70 | 1 | 1000 | 2000 | 1600 | 3200 | 9.3 | >80 | <75 | |
| 105 | 104 | ||||||||||
| 121 | 120 | ||||||||||
| 153 | 152 | ||||||||||
RVGear Reducer RV - 40E installation parameter
| Inner hexagon bolt Nominal dimension(mm) |
Fastening torque(Nm) | Fastening force | Bolt requirement |
| M8 1.25 | 37.2 ± 1.86 | 23960 | GB/T 70.1 - 2000 Intensity:12.9 Thread requirement:GB/T 1167-1996 |
| M14 2.0 | 204.8 ± 10.2 | 75860 |
