Nadun Machinery Manufacture Co., Ltd.
China Manufacturer with main products: Four Column Press Machine, c Frame Press Machine, Salt Block Hydraulic Press Machine, Solid Forklift Tire Press Machine |
Home
>Products Catalog > China Quality 800 Ton Hydraulic Press Machine for Animal Licking Salt Block Making

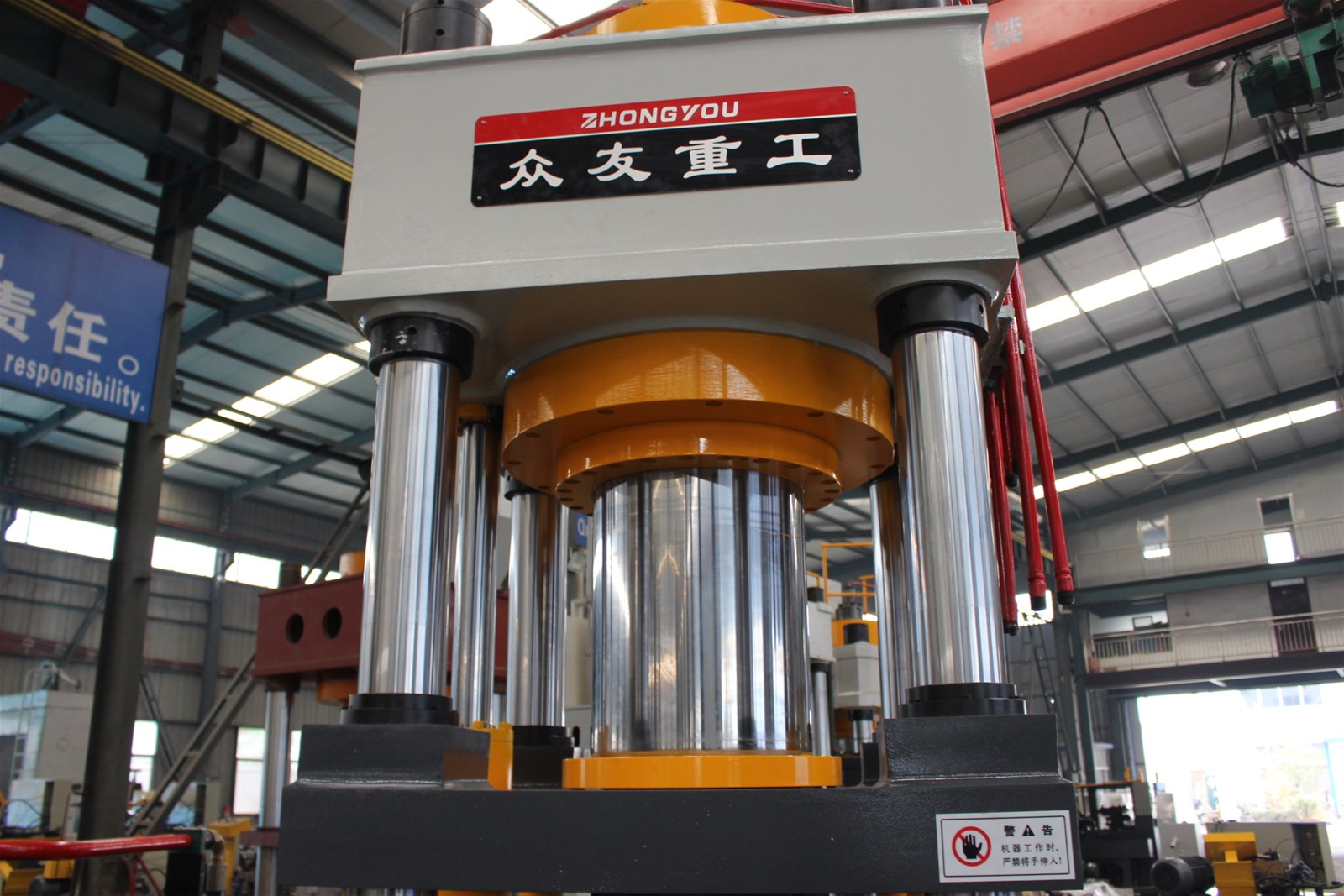

China Quality 800 Ton Hydraulic Press Machine for Animal Licking Salt Block Making
| FOB Price: | 9999.00 - 29999.00 USD/Box |
|---|---|
| Supply Ability: | 1 Box(es) per Month |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- After-sales Service Provided: Overseas service center available
- Brand Name: Zhongyou
- Automatic Grade: Automatic
- Type: Vertical
- Condition: New
- Certification: CE ISO
- Weight: 12TON
- Dimension(L*W*H): 2060*1730*3080mm
- Power(W): 11500
- Voltage: 220V/380V
- Model Number: YQ32
- CNC or Not: CNC
- Usuage: Animal Licking Salt Compressed Into Block
- Productivity: 3-4 Pieces Salt Blocks Per Minute
- Feed Tube: Provided
- Install: Easy for Installing
- Transport Package: Plastic Film with Steel Frame
- Function: Forming Animal Licking Stone Salt Block
- Service: Engineers Available to Service Machinery Overseas
- Specification: 1350*1050*4050mm
- Production Capacity: 50 Sets Per Month
Specifications
China Quality 800 Ton Hydraulic Press Machine for Animal Licking Salt Block Making
Product Description
800 ton hydraulic machine for salt block press is a professional equipment for producing cattle and sheep salt blocks.Mineral salt lick block suitable for large-scale livestock farms and has a good effect on the healthy growth of cattle and sheep.
the features of Salt Block Press Machine 800 ton:
1)Hydraulic driven, stable operation, less vibration, safe and reliable.
2) Simple underground footing need.
3) PLC control, with alternatives of manual or automatic operation
4)Easy operate and high efficient.
5)we can make any models according to your needs
PS: Color, Motor power, Workbench size, Opening height, Effective stroke can all be customized, Size of salt block mold included
Application
the salt block press machine produced by our factory is a kind of hydraulic pressure block machine, the pressure is large, it can be formed once, the density is high, the product appearance of the Salt Block press machine is clean and beautiful.If customers want to produce products of different specifications, they can customize multiple sets of molds to achieve a multi-purpose goal.
Packaging & Shipping
Our services are divided into pre-sale, sales, after-sale three parts. Pre-sale to provide detailed advice, the program recommended to the factory inspection, as far as possible to meet your questions and needs. Sales Can support samples, support diversified payment methods, the solid forklift tire press machine production process
Transparent,,standardized and quickly stocking. after-sales Support diversification guidance, training, voice and video images, and even solid forklift tire press machine overseas site installation, on-site training, home maintenance, continuous return visit customers concerned about the use Company Profile
3: Where is your factory located? how can I visit there?
A: Our factory is located in Tengzhou City,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A: FOB, CFR and CIF all acceptable.
5:how can i trust your company?
A:We have professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment,.
800 ton hydraulic machine for salt block press is a professional equipment for producing cattle and sheep salt blocks.Mineral salt lick block suitable for large-scale livestock farms and has a good effect on the healthy growth of cattle and sheep.
the features of Salt Block Press Machine 800 ton:1)Hydraulic driven, stable operation, less vibration, safe and reliable.
2) Simple underground footing need.
3) PLC control, with alternatives of manual or automatic operation
4)Easy operate and high efficient.
5)we can make any models according to your needs
Design Lightspot:
1.Fully intelligent operation design Production debugging operated through PLC touch screen.
2.Fully-automatic material filling design Intelligent control the filling method and dosage,rapid and stable,can save the time and labor.
3.Isolated hydraulic station design: Oil cylinder working area and mechanical working area are independent of each other,it can prevent oil pollution.
4.Energy saving and environmental protection,small space occupation,superior performance,simple operation,easy maintenance and so on.
Product Parameters2.Fully-automatic material filling design Intelligent control the filling method and dosage,rapid and stable,can save the time and labor.
3.Isolated hydraulic station design: Oil cylinder working area and mechanical working area are independent of each other,it can prevent oil pollution.
4.Energy saving and environmental protection,small space occupation,superior performance,simple operation,easy maintenance and so on.
| Parameter name | Unit | YQ32-200 | YQ32-315 | YQ32-500 | YQ32-630 | YQ32-800 |
| Nominal force | KN | 2000 | 3150 | 5000 | 6300 | 800 |
| Hydraulic system maximum pressure | Mpa | 25 | 25 | 25 | 25 | 25 |
| Max opening height of the slide | mm | 500 | 700 | 800 | 800 | 800 |
| Max stroke of the slide | mm | 360 | 400 | 500 | 500 | 500 |
| Workbench effective area | mm | 10001000 | 10001000 | 1100x1100 | 1100x1100 | 1200x1200 |
| Ejector cylinder nominal force | KN | 100 | 100 | 200 | 200 | 400 |
| the stroke of the eject | mm | 160 | 160 | 200 | 200 | 200 |
| for making weight of salt block | kg | 2-3kg | 3-5kg | 5-10kg | 10-15kg | 15-20kg |
Application
the salt block press machine produced by our factory is a kind of hydraulic pressure block machine, the pressure is large, it can be formed once, the density is high, the product appearance of the Salt Block press machine is clean and beautiful.If customers want to produce products of different specifications, they can customize multiple sets of molds to achieve a multi-purpose goal.
Packaging & Shipping
Packaging Details:
Internal plastic moisture-proof anti-rust packaging,
External wooden packaging,
Exclusive container transport.
Our Services Our services are divided into pre-sale, sales, after-sale three parts. Pre-sale to provide detailed advice, the program recommended to the factory inspection, as far as possible to meet your questions and needs. Sales Can support samples, support diversified payment methods, the solid forklift tire press machine production processTransparent,,standardized and quickly stocking. after-sales Support diversification guidance, training, voice and video images, and even solid forklift tire press machine overseas site installation, on-site training, home maintenance, continuous return visit customers concerned about the use Company Profile
Our company is located in Tengzhou City, Shandong Province, China.A domestic leading hydraulic machine production of the Holy Land.Completely dependent on first-class production process,stand out from a large number of hydraulic machine manufacturers.over the years, widely praised by customers at home and abroad. We have a number of innovative patents,because more than ten years to concentrate on only hydraulic press forklift tire press machine,in the small and medium enterprises has been the leader of the brand.
FAQ1:how can I choose the most suitable machines?
A: Please tell me your specifications,we can choose the best model for you, or you can choose the exact model.You can also send us the products drawing,we will choose the most suitable machines for you.
2: how can I get a quotation?
A: Pls tell us the machine you need, including quantity, raw materials and other requirements.
2: how can I get a quotation?
A: Pls tell us the machine you need, including quantity, raw materials and other requirements.
3: Where is your factory located? how can I visit there?
A: Our factory is located in Tengzhou City,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A: FOB, CFR and CIF all acceptable.
5:how can i trust your company?
A:We have professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment,.
