Automatic Ultrasonic Cake Cutting Machine for Sponge Cake

Supply Ability:	30 Set(s) per Month
Shipping:	Xiamen port
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Fujian in China
Packaging Details:	waterproof packing

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Type: food processing machinery
Brand Name: wanlisonic
Voltage: 220v
Condition: brand new
Model Number: Wanlisp4-300K900L3500
Model: Wanlisp4-300K900L3500
Dimensions: L3000*W1400*H1550mm
Weight: Net Wt. 550KGS, Gross Wt.600KGS
Voltage: 220V, single
Rated power: 8000W
Frequency: 50Hz-60Hz
Ultrasonic Frequency: 20000Hz
Amplitude: 20%-40%
Cross cutting speed: 20-60cuts/Minute; high-speed model:60-180cuts/Minute
Slit cutting speed: 30-40cuts/Minute; high-speed model:40-100cuts/Minute

Specifications

Zhangzhou Wanli Machinery Co., Ltd.

Excellent Quality, Excellent Price & Excellent Service

Products Introduction

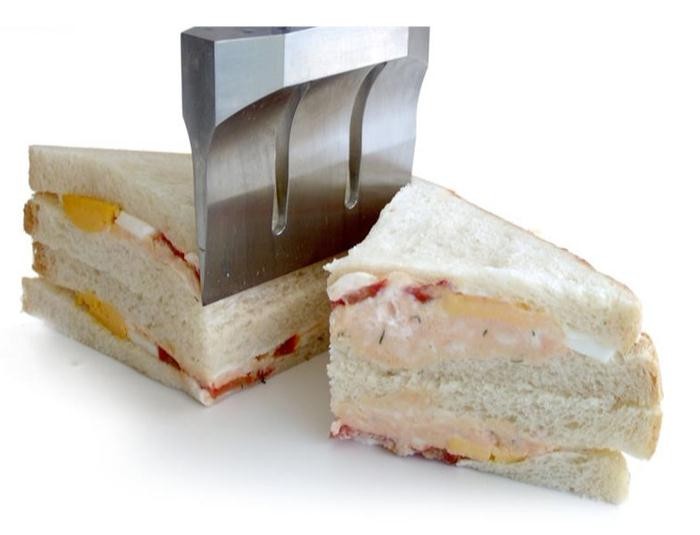

V Wanli ultrasonic cutting achieves no friction, no pressure cutting mode.

V It can cut sticky food such as cream jam smoothly and beautiful without sticking knife

V Automatic product positioning,Omni-directional cutting according toCustomer's needs

V the cutting product can be automatically positioned and slitting according to the pre-entered parameters

Wanlisp4-300K900L3500

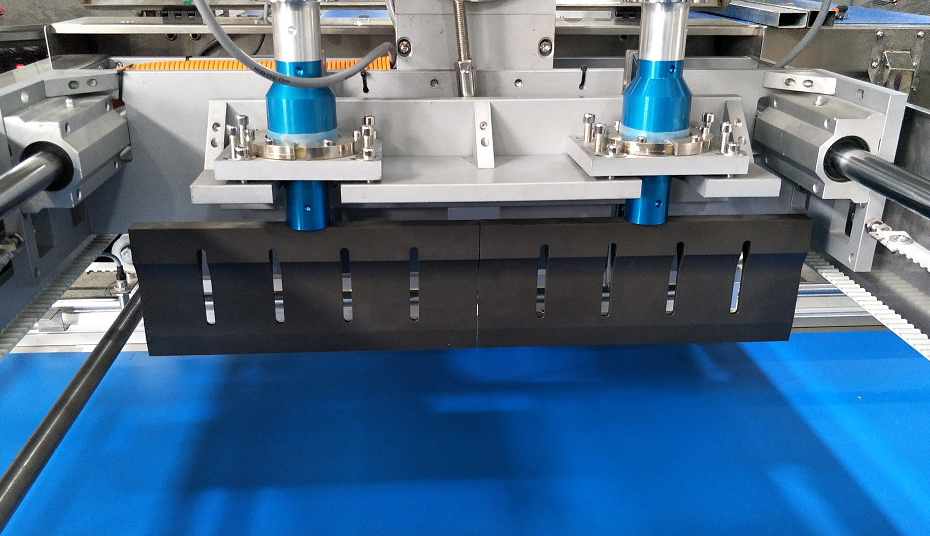

this is an ultrasonic cutting machine for food controlled by 5-axis servoMotor system, can be linked to chain slat type tunnel oven, automatic Belt convey and cutting Products of 600x600Mm, and it Equipped withAutomatic paper removal function(Optional),and security system of security door,Frequency ultrasonic scan and fault indicator lamp.

Automatic ultrasonic Cake Cutting Machine for Sponge Cake

StandardParameter

Model	Wanlisp4-300K900L3500
Dimensions	*L3000W1400H15*50mm
Weight	Net Wt. 550KGS, Gross Wt.600KGS
	220V, single
Rated power	8000W
Frequency	50Hz-60Hz
Ultrasonic Frequency	20000Hz
Amplitude	20%-40%
Cross cutting speed	20-60cuts/Minute; high-speed model:60-180cuts/Minute
Slit cutting speed	30-40cuts/Minute; high-speed model:40-100cuts/Minute
Number ofBlades	4 (optional)
BlademAterials	Titanium Alloy
Blade size	300mm/PC (optional)
Cut type	Square, rectangular, slices
Maximum cutting size	400mmx600mm,Food cutting height up to80mm, blade up height:100mm
Material of machine frame	Stainless Steel
Automaticbelt convey	Yes
Convey speed	0-3000mm
Safety protection system	Security door, frequency ultrasonic scan and fault indicator lamp
Control System	Five-axis Control System
Cutting knife control system	Servo motor
